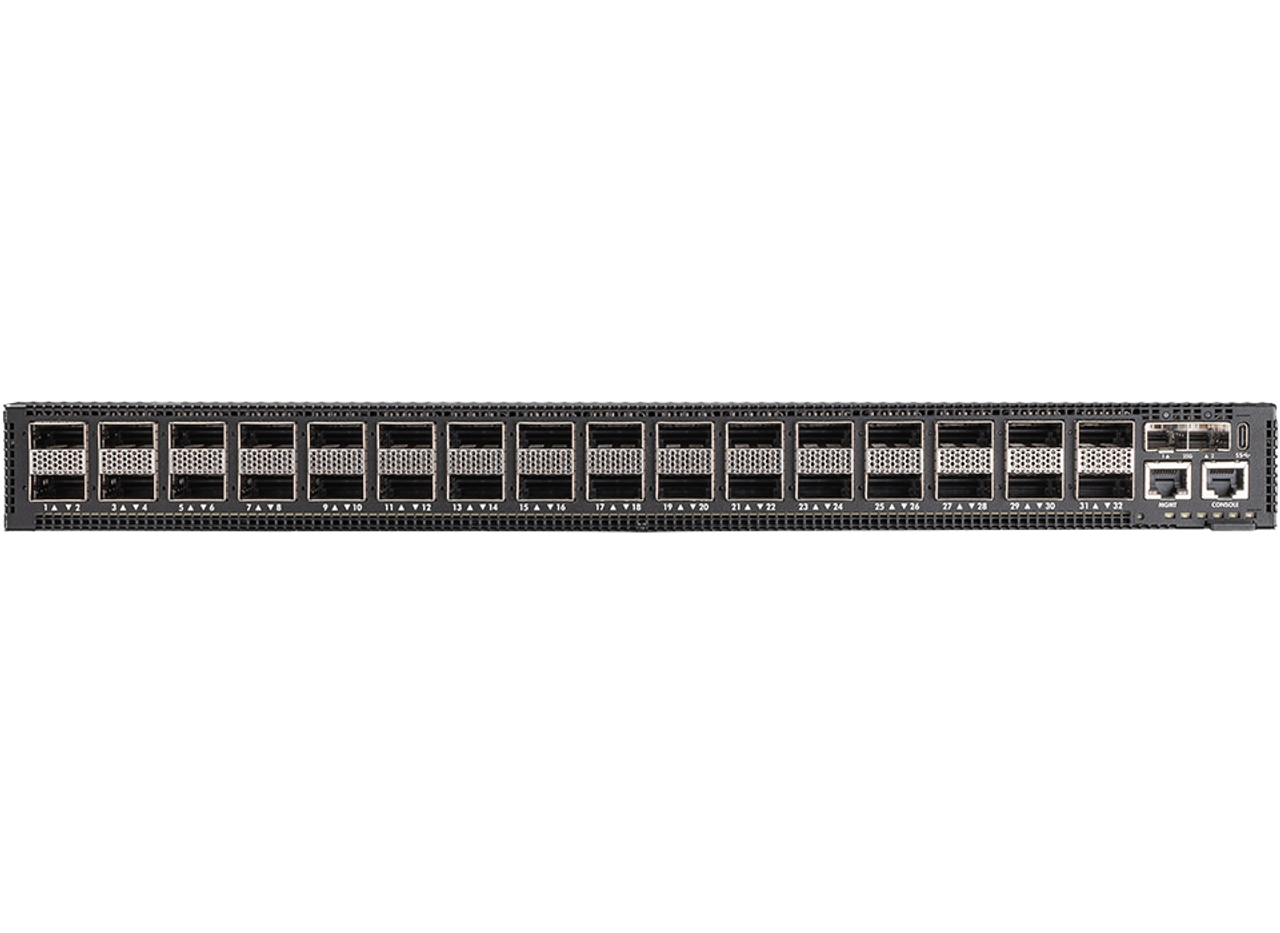

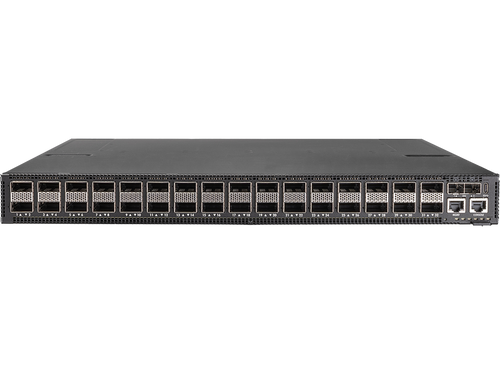

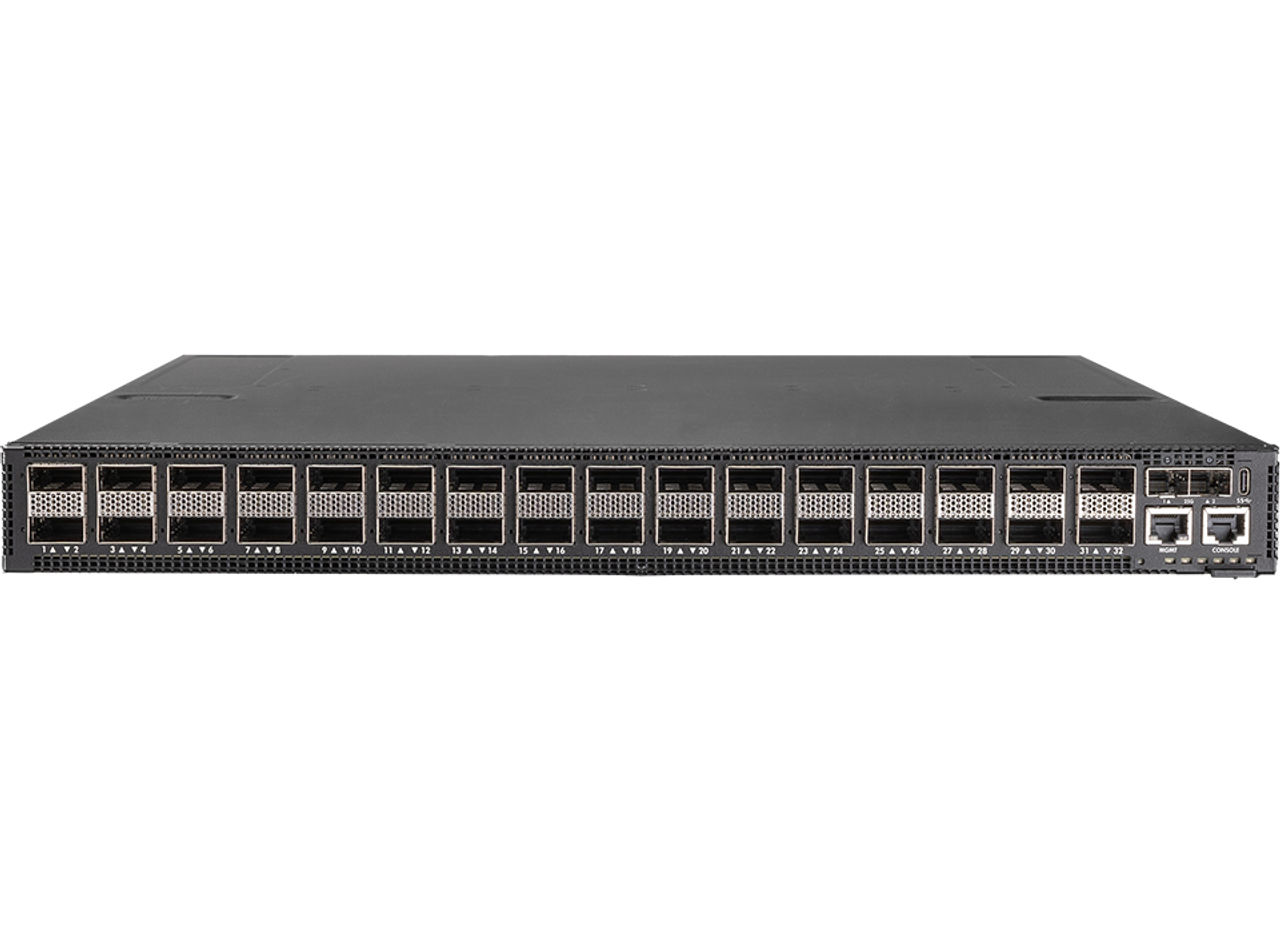

Edgecore 32 X 800G OSFP800 Switch Ports with Tomahawk 5 - High-Performance, Low Latency Switch for High-Performance Data Centers - Up To 30W Power Budget Per Port - AIS800-32O

Name: Edgecore 32 X 800G OSFP800 Switch Ports with Tomahawk 5 - High-Performance, Low Latency Switch for High-Performance Data Centers - Up To 30W Power Budget Per Port - AIS800-32O
Brand: Edgecore Networks
SKU: HS-EDG-AIS800-32O
Availability: OutOfStock

Edgecore Networks

Request A Quote

Write a Review

SKU:: HS-EDG-AIS800-32O
Condition:: New
Availability:: Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
MPN:: AIS800-32O
Switch Ports:: 32 x OSFP800 800GbE
Switch Silicon:: BCM78902 Tomahawk 5
Processor:: Intel Xeon Quad-Core 2.2 GHz
BMC:: AST2620 with OpenBMC secured by AST1060 Root of Trust
SPI Flash:: 64MB x 2
Memory:: 32GB DDR4 SO-DIMM with ECC
Storage:: 240GB m.2 2280 NVMe SSD
TPM:: TPM2.0 SPI
Rack:: 1 RU form factor
Timing and Sync:: (Optional) 1PPS Port, 10 MHz port, ToD port, SyncE, IEEE 1588v2 PTP
Fans:: 7 Hot-swappable fan modules with 6+1 redundant fans
Storage Temperature:: -40°C to 70°C
Operating Temperature:: 0° C ~ 40° C (Front-to-Back) 0° C ~ 35° C (Back-to-Front)
Power Draw:: XXX W (Maximum)
Note:: Images may not be exact, please check specifications.
Required A Volume Purchase:: Contact us for a volume pricing | volumeorders@hssl.us

Overview
Other Details

Product Description

The Edgecore AIS800-32O is a high-performance, low latency switch for high-performance data centers.

Application Scenarios:

Spine Switch

A next-generation, highest-capacity switch for data center spine use case. Breakout options include 2 x 400G, 4 x 200G, and 8 x 100G per port, with a maximum of 160 logical ports. Offers reduced cost and power per bit. Scalable and enables migration to 400G leaf connectivity in data centers.

AI/ML Clusters

Standards-based (Ethernet) networking for AI/ML training, leveraging low latency and high-throughput RoCEv2. Reduces Job Completion Time (JCT) using the cognitive routing and congestion management capabilities of the switch. Fully programmable telemetry enables sophisticated on-chip applications for heightened network insight and efficient network management.

High-Performance Computing

The large number of high-capacity Ethernet ports enables server interfaces to transition to higher speeds and denser networks.
Enables the virtualization of compute and storage with VxLAN switching and routing.

Cloud DCI

Supports 400G QSFP-DD ZR/OpenZR+/+6dBm ZR+ and future-proof 800G OSFP ZR/ZR+/+6dBm for cloud DCI scenarios.

Features

OSFP800 switch ports, each supporting 1 x 800 GbE (100G PAM4), or via breakout cables 2 x 400G GbE, 4 x 200 GbE, or 8 x 100 GbE.
OSFP800 switch ports also support 1 x 400 GbE (50G PAM4), 1 x 100 GbE (NRZ), and via breakout cables 2 x 200 GbE, 4 x 100 GbE, or 8 x 50 GbE.
Up to 30W power budget per OSFP800 port.
Incorporates Broadcom Tomahawk 5 switch series silicon.
• Highest Radix: Up to 160 logical interfaces on a single chip, low latency
• Cognitive/Adaptive routing and Dynamic Load Balancing (DLB) and Global Load Balancing (GLB)
• Advanced shared buffering
• Programmable in-band telemetry
• Supports end-to-end congestion control
• Power efficient due to a monolithic 5nm die
• Hardware-based link failover for network resiliency and reduced job completion time
• Support for SRv6
• Support for VxLAN RIOT
BMC module with serial-over-LAN support
(Optional) SyncE and PTPv2 support with 1PPS, 10MHz, and ToD connectors on the front panel
Contains e-fuses to protect transceivers and internal components
1 RU form factor
Supports hot/cold aisles with front-to-back/AFO/port intake airflow SKU and back-to-front/AFI/port exhaust airflow SKU
All ports on front; PSUs and fans accessible from rear
Hot-swappable, load-sharing, redundant 2400 W AC/DC PSUs
7 Hot-swappable fan modules with 6+1 redundant fans
Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings

Other Details

(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request page

Product Videos

Custom Field

MPN AIS800-32O

Switch Ports 32 x OSFP800 800GbE

Switch Silicon BCM78902 Tomahawk 5

Processor Intel Xeon Quad-Core 2.2 GHz

BMC AST2620 with OpenBMC secured by AST1060 Root of Trust

SPI Flash 64MB x 2

Memory 32GB DDR4 SO-DIMM with ECC

Storage 240GB m.2 2280 NVMe SSD

TPM TPM2.0 SPI

Rack 1 RU form factor

Timing and Sync (Optional) 1PPS Port, 10 MHz port, ToD port, SyncE, IEEE 1588v2 PTP

Fans 7 Hot-swappable fan modules with 6+1 redundant fans

Storage Temperature -40°C to 70°C

Operating Temperature 0° C ~ 40° C (Front-to-Back) 0° C ~ 35° C (Back-to-Front)

Power Draw XXX W (Maximum)

Note Images may not be exact, please check specifications.

Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
