Product Description

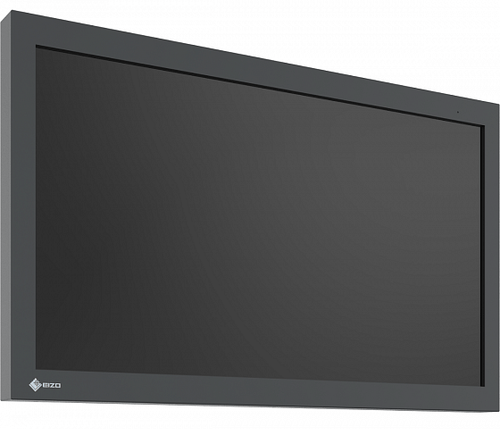

EIZO CuratOR 32-inch monitor with 4K UHD resolution for Magnetic Resonance Imaging (MRI) -LX3240-MR
32-inch monitor with 4K UHD resolution for Magnetic Resonance Imaging (MRI).
- Shielded against magnetic fields
- Minimized impacts to magnetic fields
- Luminance stability system
- Color matched
MRI Compatibility
The LX3240-MR is built using special materials to minimize impact on magnetic fields and resonators. Furthermore the monitor is shielded against strong magnetic environments up to 100 mT, allowing it to be placed in proximity to an MRI scanner.
Perfect Picture Reproduction
The TFT panel used enables distortion-free image geometry, a very large viewing angle and high luminance. The monitor provides a flicker-free picture, even at low refresh rates for meeting even the strictest ergonomic requirements.
Constant Brightness
The LX3240-MR’s fully automated stability system keeps the brightness constant in accordance with medical standards such as DICOM or Gamma 2.2. The monitor is also equipped with an internal backlight sensor which ensures luminance stays consistent.
Flexible Connection Options
The LX3240-MR has flexible options to connect and display video sources, such as 4K UHD (3840 x 2160) and Full HD (1920 x 1080):
• DisplayPort 4K UHD input
• DisplayPort FHD input (upscaling Full HD to UHD)
• Two HDMI connectors supporting DVI signals (upscaling Full HD to UHD)
Five Practice-Oriented Preset Modes
The LX3240-MR is calibrated at the factory with total of five practice-oriented preset modes available. This calibration data allows the monitor to be easily adapted to the respective application and local lighting conditions.
In addition, special application requests from service personnel on site can be taken into account, such as color adjustment or adapting to ambient brightness.
All presets are color matched, so the color impression remains consistent between each unit across all gray scale levels.
In addition, special application requests from service personnel on site can be taken into account, such as color adjustment or adapting to ambient brightness.
All presets are color matched, so the color impression remains consistent between each unit across all gray scale levels.
Work Safely with Minimal Picture Delay
Images are displayed on the screen in real time, so that the operating surgeon can see all processes directly and without delay on the monitor.
Instant Viewing
The built-in backlight sensor ensures that the screen brightness is quickly stabilized when the system is started, so that the image on the monitor is available within a short time.
Installation on a VESA Mount
Compliance with the VESA standard enables attachment to existing mounting accessories such as ceiling suspensions.
Customer Assurance with Medical Standards
The monitor meets the high requirements of itnernational medical safety and EMC standards.
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
Manufacturer Part Number LX3240-MR
Cabinet Color Black (RAL 7021)
Type TFT Color-LCD Panel (IPS)
Backlight LED
Size 80 cm / 31.5”
Native Resolution 3840 x 2160 (16:9 aspect ratio)
Viewable Image Size (H x V) 697.3 x 392.2 mm
Pixel Pitch (H x V) 0.181 x 0.181 mm
Display Colors 10-bit colors: 1.07 billion colors
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 1000 cd/m²
Contrast Ratio (typical) 1300:1
Response Time (typical) 14 ms (midtone)
Color Gamut (typical) sRGB
Input Terminals DisplayPort (4K UHD), DisplayPort (Full HD), HDMI (DVI signal Full HD) x 2
Digital Scanning Frequency (H / V) 131.3 kHz / 60 Hz
Power Requirements AC adapter input: 100-240 V: 50-60 Hz, Monitor input: 24 VDC, 6 A
Maximum Power Consumption 155 W
Power Save Mode 20 W (DMPM mode)
Miscellaneous Cal-Switch, resistance to magnetic fields up to 100 mT
Sensor Backlight sensor
Degree of Protection IP20
Net Weight 17.2 kg +/- 1 kg
Hole Spacing (VESA Standard) 100x100 mm and 200x100 mm, M4, depth 5-10 mm
Note Images may not be exact, please check specifications.
