    Product Details

    EIZO CuratOR 4K Ultra High Definition Resolution At 60p -SC430-PTR

    Ultra-High Definition camera system with fully integrated triaxial mount for capturing surgical proceedings.

    • 4K ultra high definition resolution at 60p
    • 30x optical zoom for clear, close-up images
    • Integrated triaxial camera mount with pan, tilt, and roll
    • Intuitive camera movement for simple operation
    • Single cable connection between camera head and CCU
    • Smooth positioning even under high zoom
    • Attach to ceiling arms for obstruction-free video

    4K Ultra-High Definition Resolution

    The surgical field camera captures images in 4K UHD resolution (3840 x 2160) with a progressive 60 Hz signal for smooth, high definition images of the surgical site.

    Zoom into Narrow Target Areas in Detail

    The camera lens has up to 30x optical zoom, allowing the camera to easily zoom into small target areas. Even when positioned at a safe distance, the camera can clearly zoom into and capture narrow surgical sites in detail.

    Zoom into Narrow Target Areas in Detail

    The camera lens has up to 30x optical zoom, allowing the camera to easily zoom into small target areas. Even when positioned at a safe distance, the camera can clearly zoom into and capture narrow surgical sites in detail.

    Smooth Positioning at High Zoom

    With unique and intelligent stepping technology, as the camera zooms in, the pan, tilt, and roll movements slow down to prevent the field of view from moving too quickly. With easily controllable movements, even under high zoom, preparation for surgery is made quicker and easier.

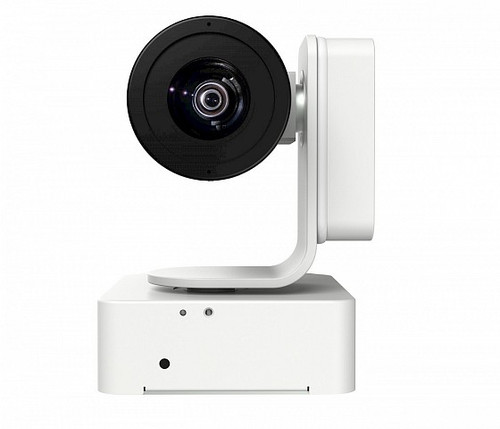

    Fully Integrated Camera Mount

    The camera head comes fully integrated on a camera mount with +/-170 degrees pan, +90 to -30 degrees tilt, and +/-165 degrees roll to ensure that the field of view can be adjusted to the ideal location with ease.

    Intuitive Panning and Tilting Direction

    The camera head is integrated with the camera mount, allowing left and right, and up and down movements to remain parallel to the field of view, even after rolling. When panning or tilting, the camera head moves in relation to the field of view, rather than the position of the camera head like unintegrated cameras. This ensures intuitive and effortless panning and tilting.

    Convenient Camera Control from Anywhere

    Camera movement, focus, and white balance can be adjusted using the front panel of the Camera Control Unit (CCU), or the supplied wireless remote control. Additionally, the CCU panel and optional wired remote control come with a joystick for intuitive control. The camera can also be controlled from OR software.

    Versatile Connectivity

    The SC430-PTR comes with 3G-SDI and HDMI output terminals, for outputting 4K or full HD video at 60p/50p.


    Audio Capture

    The SC430-PTR camera head has a built-in microphone for capturing audio along with video.

    Obstruction-Free Viewing

    Typical surgical field cameras attach to the center of surgical lights, where the surgeon's head or arms may obstruct the field of view. The SC430-PTR can be attached to designated ceiling arms, allowing it to be positioned independent of lighting to avoid possible obstructions.

    One Cable Connection for Easy Installation

    The integrated camera head and mount can be connected to the CCU via a single cable which not only supplies video and audio, but also power. This makes installation quick and easy, as well as reduces cable clutter.

    Easy Cleaning

    The exterior can be safely sterilized with alcohol.

    Variety of Connection Lenghts

    There are various cabelling accessories available to connect the SC430-PTR Camera Head to the Camera Control Unit (CCU) over distances of 5 m, 10 m, 25 m, 30 m and 35 m.

    Rest Assured with Medical Qualifications

    The SC430-PTR meets strict medical, safety and EMC emission standards.
