    • Eizo Curator EX4942 A 49-Inch Widescreen Surgical Monitor With 4K UHD (3840 X 2160 Pixels) Resolution -EX4942

    EIZO

    Request A Quote

    Write a Review
    SKU:
    HS-EIZ-EX4942
    Condition:
    New
    Availability:
    Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
    Manufacturer Part Number:
    EX4942
    Model Variations:
    EX4942: without stand
    Cabinet Color:
    White
    Optional Accessories:
    Wall mount FWM6300
    Type:
    TFT Color-LCD Panel (IPS)
    Backlight:
    LED
    Size:
    124.5 cm / 49"
    Native Resolution:
    3840 x 2160 (16:9 aspect ratio)
    Viewable Image Size (H x V):
    1073.8 x 604 mm
    Pixel Pitch (H x V):
    0.279 mm x 0.279 mm
    Display Colors:
    10-bit colors (SDI): 1.07 billion colors (maximum), 8-bit colors: 16.77 million colors
    Viewing Angles (H / V, typical):
    178° / 178°
    Brightness (typical):
    700 cd/m²
    Contrast Ratio (typical):
    1100:1
    Response Time (typical):
    8 ms (gray-to-gray)
    Color Gamut (typical):
    BT. 2020 emulation
    Input Terminals:
    BNC (3G-SDI), BNC (12G-SDI), DVI-D, DisplayPort, HDMI 2.0
    Output Terminals:
    BNC (12G-SDI), DVI-D, DisplayPort
    Power Requirements:
    100 - 240 V: 50 - 60 Hz
    Maximum Power Consumption:
    160 W
    Power Output:
    DC 5V, 2A
    Miscellaneous:
    Auto Input Detection, Gamma switch, color temperature switch, remote control (RS-232C)
    Simultaneous Display:
    Picture-by-Picture (2 PbyP), Picture-in-Picture (PinP)
    OSD Languages:
    English, German, French, Spanish, Italian, Swedish, Japanese, Simplified Chinese, Traditional Chinese, Russian, Portuguese
    Degree of Protection:
    IP45 (front), IP32 (rear)
    Protective Screen:
    Hardness 9H, laminated glass
    Net Weight:
    approx. 25 kg
    Hole Spacing (VESA Standard):
    400 x 200 mm, M8, depth 11 - 16 mm
    Note:
    Images may not be exact, please check specifications.
    Required A Volume Purchase:
    Contact us for a volume pricing | volumeorders@hssl.us

    Product Description

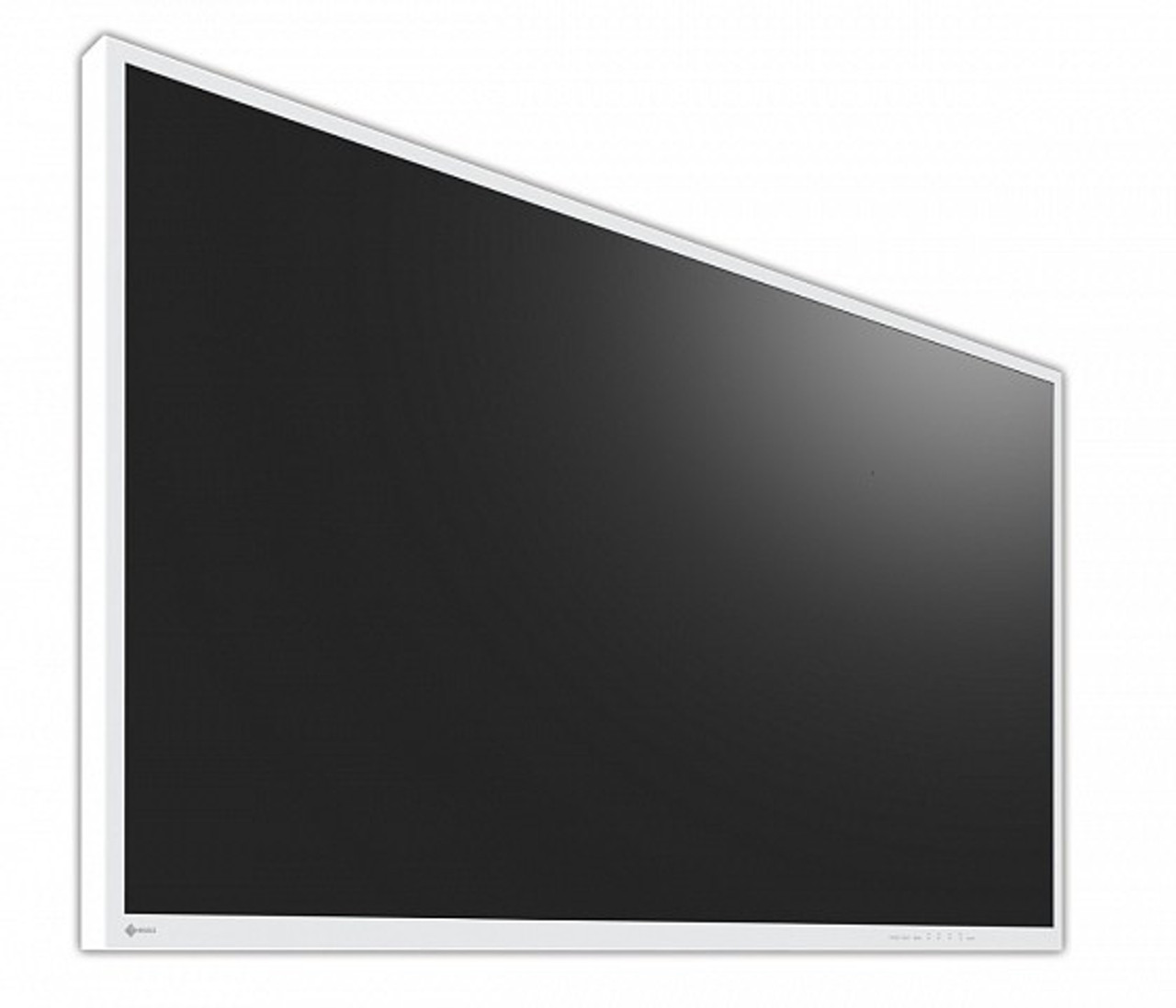

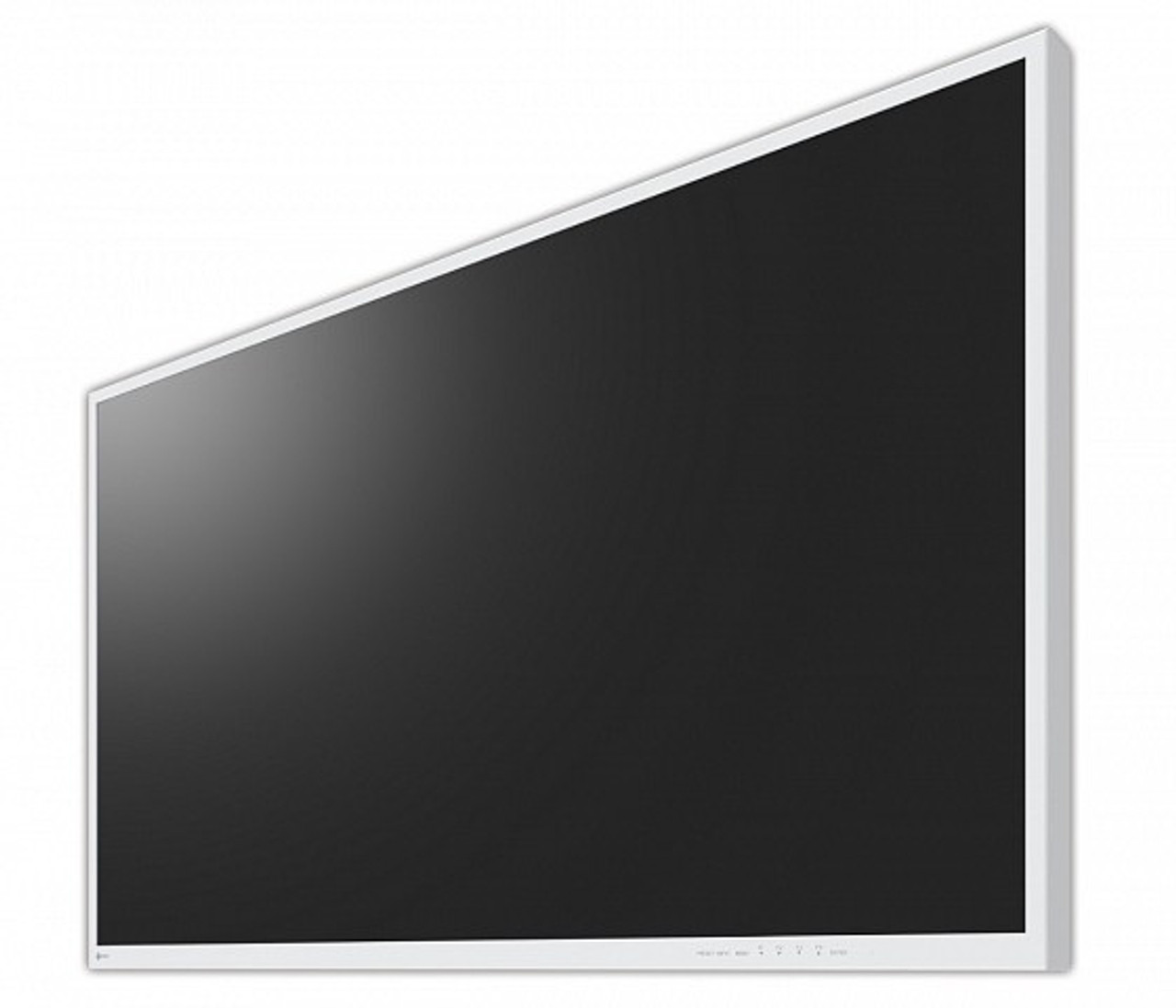

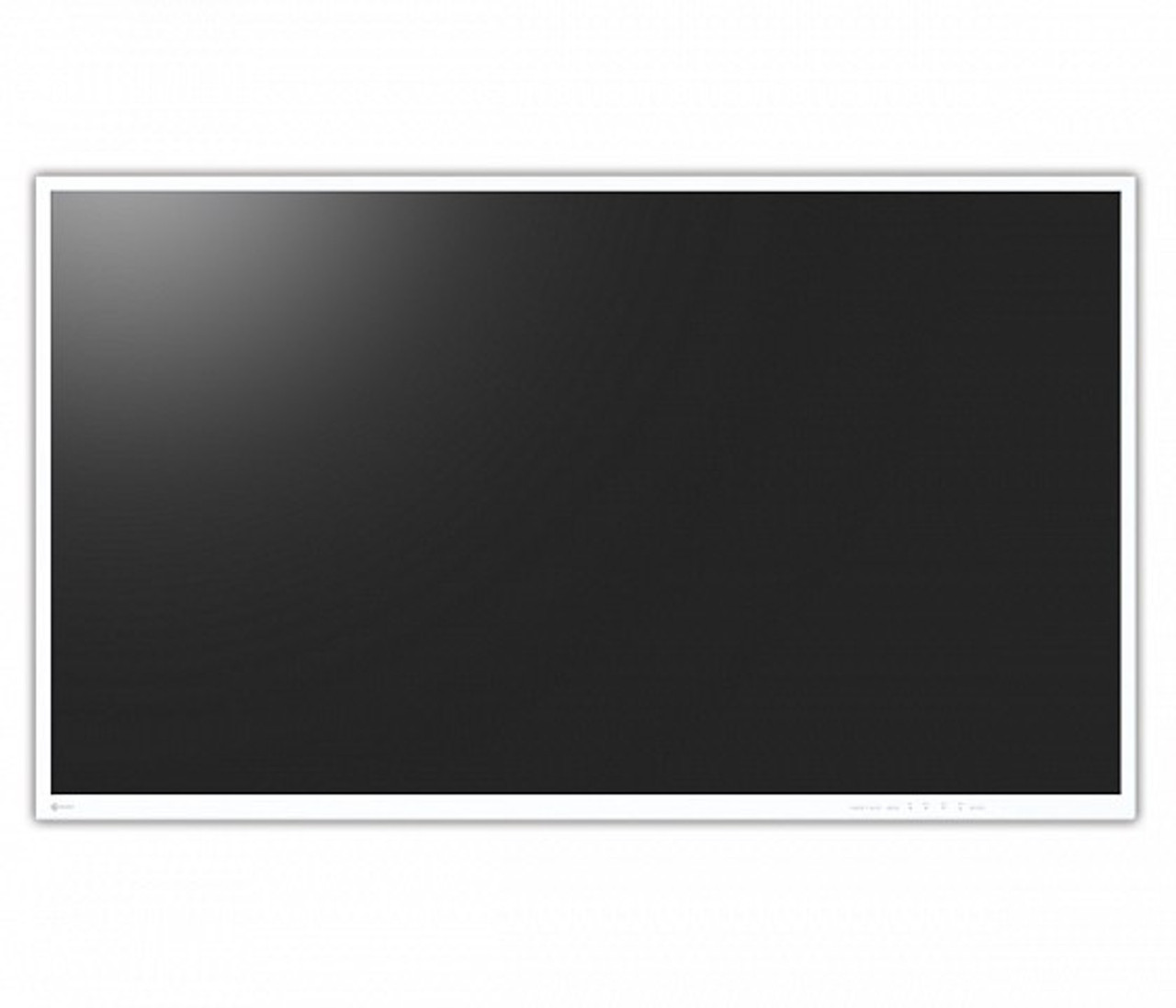

    Eizo Curator EX4942 A 49-Inch Widescreen Surgical Monitor With 4K UHD (3840 X 2160 Pixels) Resolution -EX4942

    A 49-inch widescreen surgical monitor with 4K UHD (3840 x 2160 pixels) resolution and high brightness for endoscopy, microsurgery, and other high-precision procedures.

    • Precise color reproduction (BT.2020)
    • HDR support
    • PinP and PbyP display
    • Auto Input Detection

    4K UHD Resolution and High Brightness

    The monitor uses an energy-efficient LED backlight with a high brightness of 700 cd/m². The high resolution of 3840 x 2160 is four times the size of full HD and faithfully reproduces 4K endoscope and operating microscope images in Ultra High Definition.

    Wide Color Gamut for Distinguishing Tones

    During procedures, the operating surgeon needs to be able to differentiate between varying color tones. The EX4942 supports the BT.2020 4K video color standard to ensure that subtle differences between shades of reds and yellows captured by BT.2020-supported cameras are distinguishable on the screen.

    HDR Compatibility

    HDR (High Dynamic Range) is a range that approximates the human perception of color and light as content is shown on a display device. The monitor is equipped with the perceptual quantization (PQ) curve and hybrid log-gamma (HLG) for supporting HDR. This ensures images from HDR-supported endoscope cameras are displayed without crushing blacks and more closely resemble the human visual system.

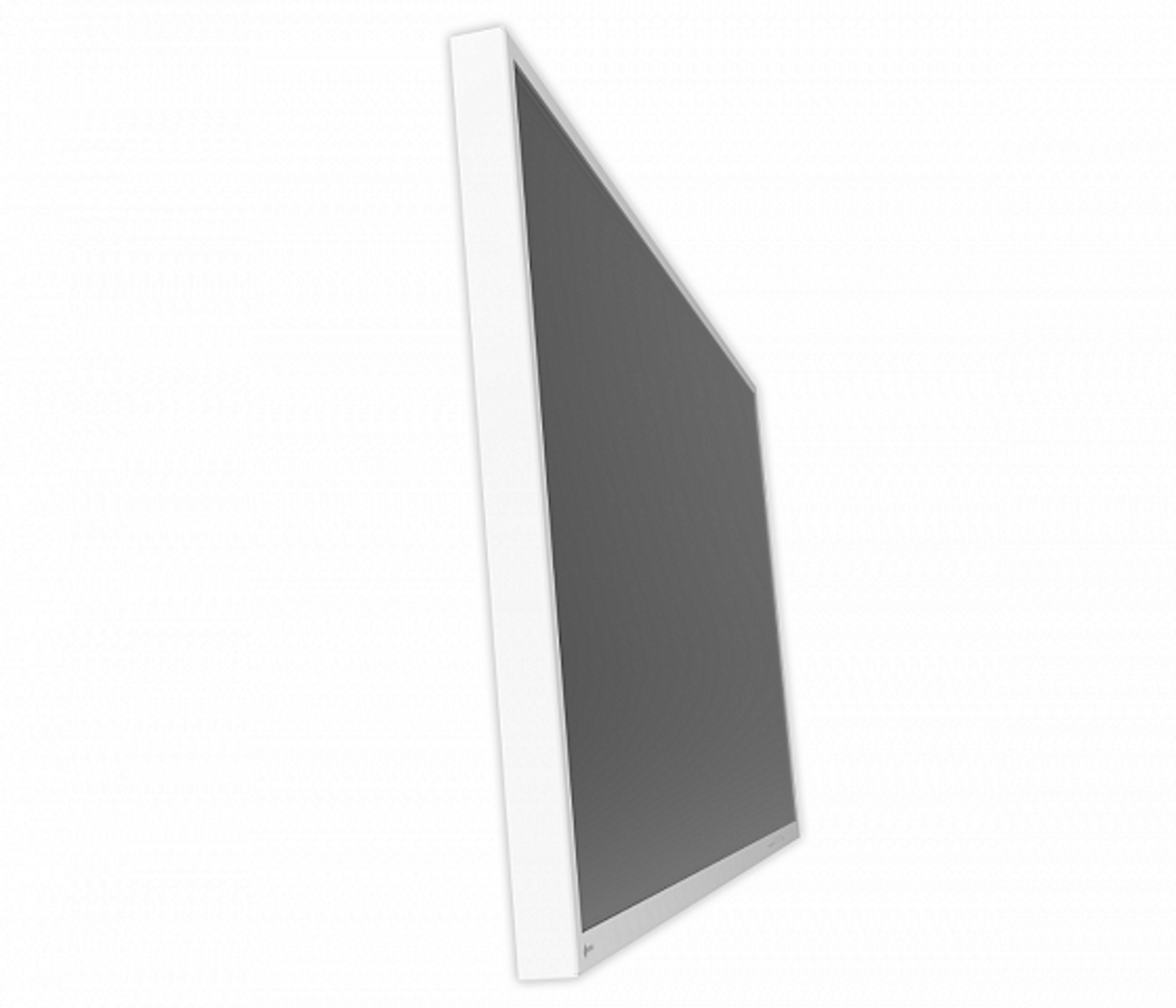

    Fully Flat Design

    Operating rooms contain various medical devices that are arranged according to the type of surgery. Safe handling and a sterile environment play a major role. EIZO's surgical monitors adopt a flat design that saves valuable space and promotes  easy cleaning and disinfection. Furthermore, the front is covered with protective glass with IP45 for protection against foreign material and splashes (the whole monitor has an IP32 rating).

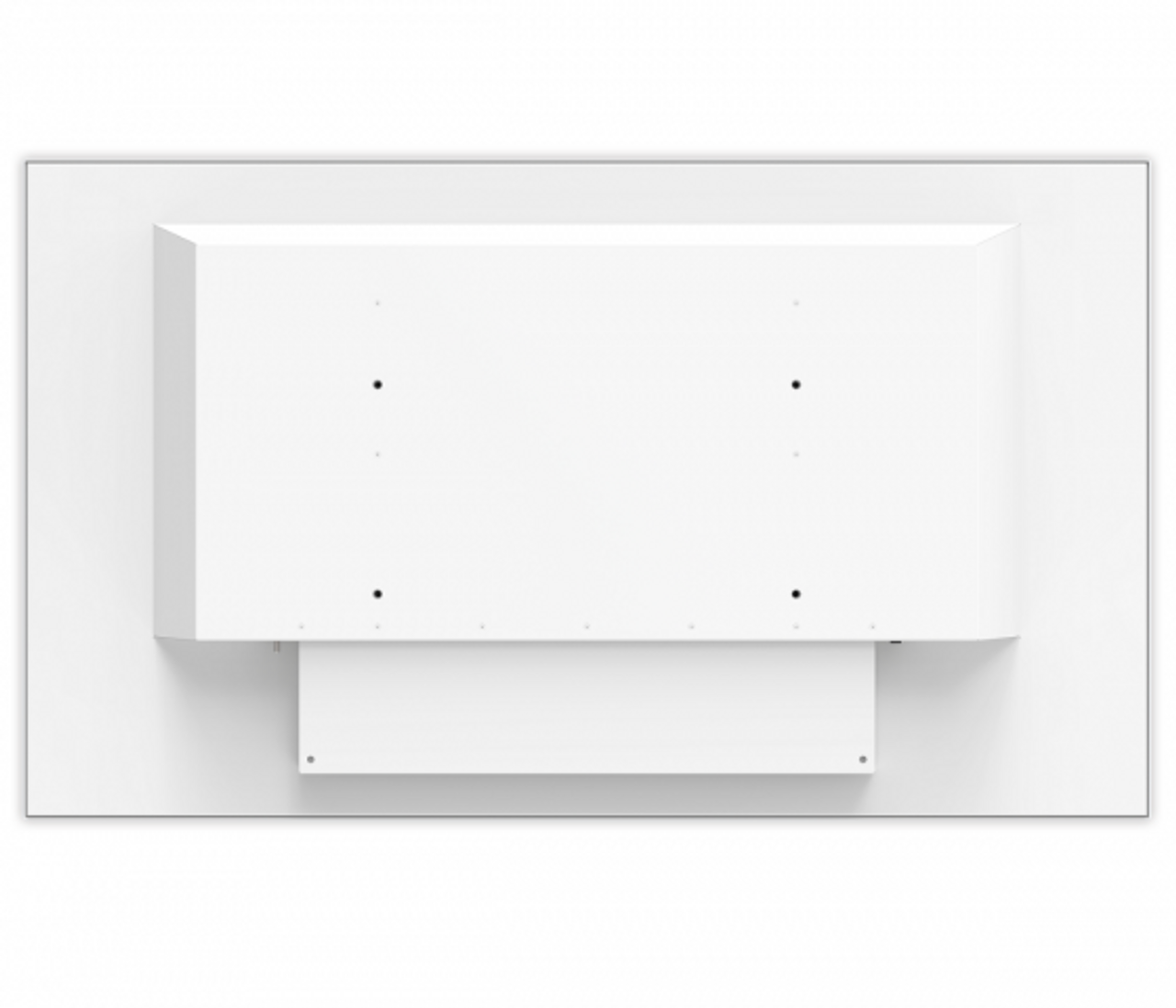

    Lightweight and VESA Mounting

    Conventional large screen monitors often come with challenges during installation due to their heavy weight and limited range of mounting capabilities. The EX4942 boasts a weight of just 25 kg. This makes it much lighter compared to other monitors of this size and thus alleviating difficulty of installation and maintenance. Compliance with the VESA standard allows flexible mounting to common fixtures.

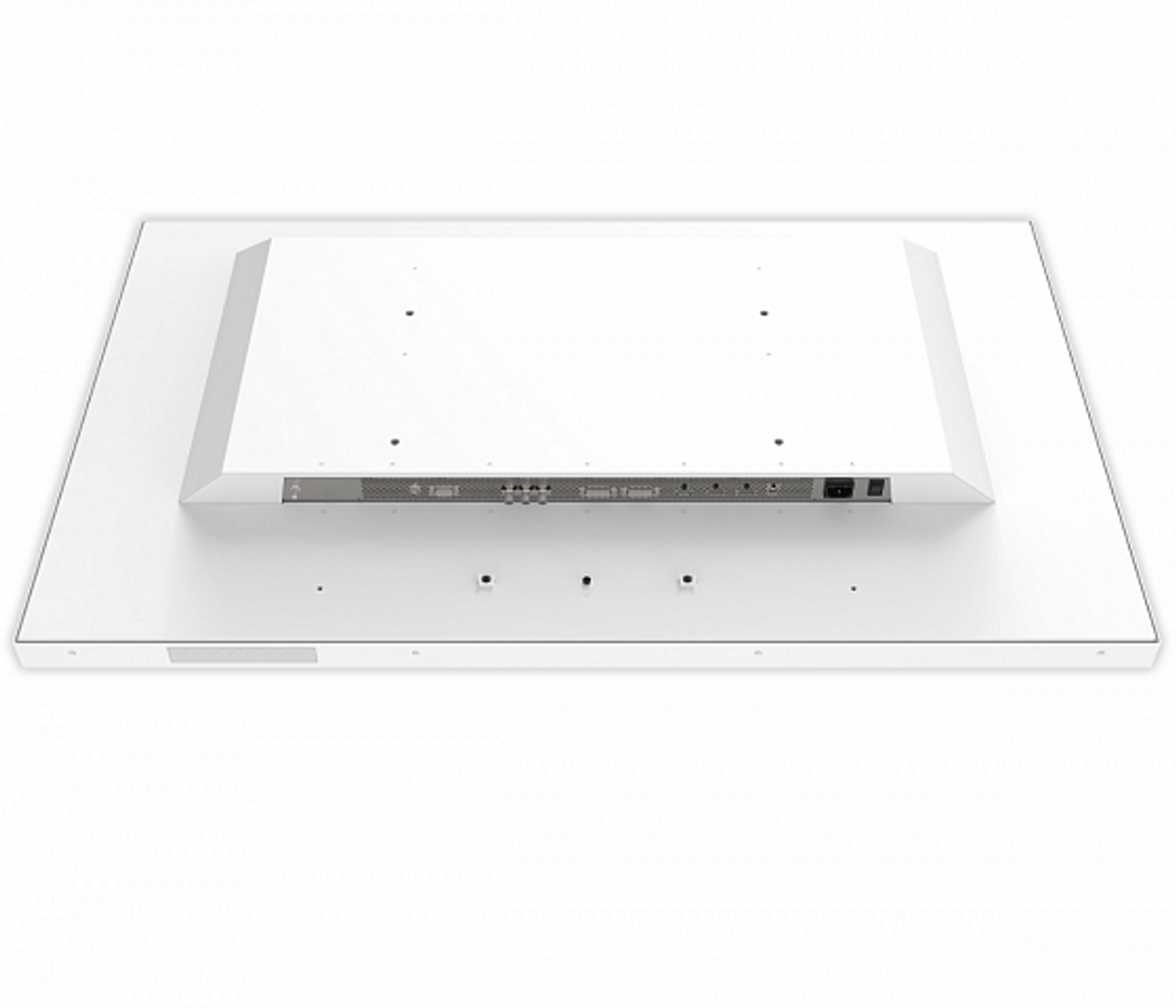

    Cable Cover for Safety and Hygiene

    With the attached cable cover, the cable connections can be stored neatly out of sight for maintaining a high level of safety and hygiene in the operating room.

    Streamlined Connectivity

    With BNC (12G-SDI), and DisplayPort or HDMI, up to 4K UHD images are displayed at 60 frames per second with a single cable over various modalities.

    When connected via BNC (12G-SDI), stable transmission is achieved even over long distances of 30 meters.

    Output Images Directly to Multiple Monitors

    The monitor is also equipped with BNC (12G-SDI), DisplayPort, and DVI output terminals so input video can be passed through and output directly to the next monitor. The same image is displayed on multiple monitors making information sharing among medical staff smooth in the operating room, while alleviating excess cabling.

    180° Rotation and Mirroring

    Regardless of the orientation of the surgical camera, you can rotate the displayed image by 180° or mirror it to find the perfect operating angle.

    This is useful for aligning the image with the line of sight of surrounding assistants and surgeons, improving convenience in the operating room.

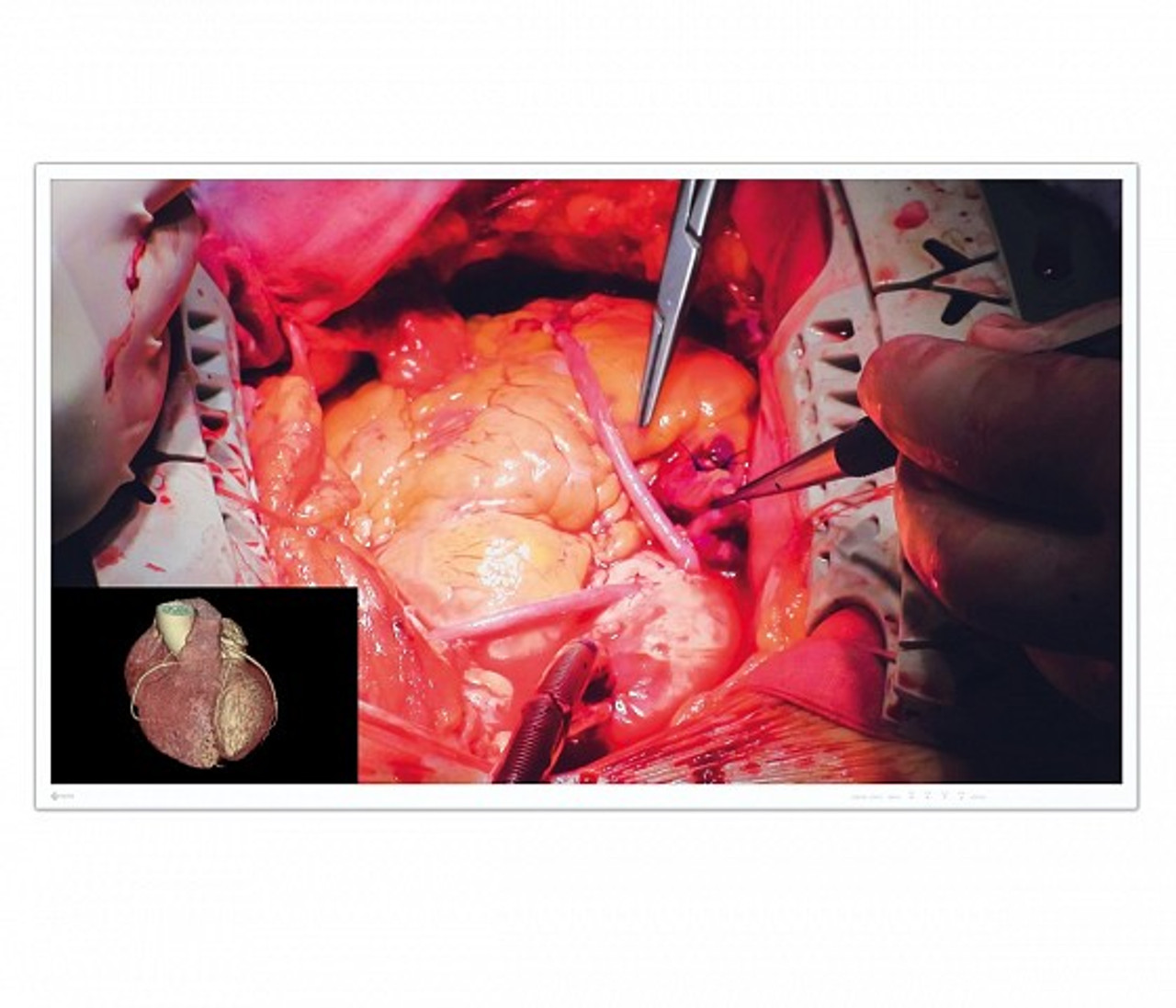

    View Two Signals on One Screen

    Two different types of signal sources can be viewed simultaneously on one monitor side by side using the PbyP (Picture-by-Picture) or one displayed within an inset window over the other with the PinP (Picture-in-Picture) function. This is useful in cases where vitals or ultrasound endoscopes need to be monitored simultaneously in addition to surgical images.

    Fail-Safe Signal Display

    The Auto Input Detection function automatically switches to another connected input port if the selected video signal is no longer detected.

    This provides a fail-safe in the case that the video signal's input is disrupted due to a system error or other external interference.

    Adjust Screens Individually

    When displaying two signal sources side by side on the same screen, each image's display mode (gamma 1.8 - 2.6 or DICOM Preset Mode) can be adjusted independently of the other image. This is useful for viewing two different modalities simultaneously under the correct display conditions (e.g. endoscope, CT, MRI).

    Safe and Stable Video Connection

    Typically HDMI cables cannot be locked into a terminal but this monitor contains a specialized locking mechanism on its side specifically for HDMI. This ensures all cables can be locked onto the monitor for consistent and stable connection.
    BROCHURE


    Other Details

    (Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.

    Product Videos

    Custom Field

    Manufacturer Part Number EX4942
    Model Variations EX4942: without stand
    Cabinet Color White
    Optional Accessories Wall mount FWM6300
    Type TFT Color-LCD Panel (IPS)
    Backlight LED
    Size 124.5 cm / 49"
    Native Resolution 3840 x 2160 (16:9 aspect ratio)
    Viewable Image Size (H x V) 1073.8 x 604 mm
    Pixel Pitch (H x V) 0.279 mm x 0.279 mm
    Display Colors 10-bit colors (SDI): 1.07 billion colors (maximum), 8-bit colors: 16.77 million colors
    Viewing Angles (H / V, typical) 178° / 178°
    Brightness (typical) 700 cd/m²
    Contrast Ratio (typical) 1100:1
    Response Time (typical) 8 ms (gray-to-gray)
    Color Gamut (typical) BT. 2020 emulation
    Input Terminals BNC (3G-SDI), BNC (12G-SDI), DVI-D, DisplayPort, HDMI 2.0
    Output Terminals BNC (12G-SDI), DVI-D, DisplayPort
    Power Requirements 100 - 240 V: 50 - 60 Hz
    Maximum Power Consumption 160 W
    Power Output DC 5V, 2A
    Miscellaneous Auto Input Detection, Gamma switch, color temperature switch, remote control (RS-232C)
    Simultaneous Display Picture-by-Picture (2 PbyP), Picture-in-Picture (PinP)
    OSD Languages English, German, French, Spanish, Italian, Swedish, Japanese, Simplified Chinese, Traditional Chinese, Russian, Portuguese
    Degree of Protection IP45 (front), IP32 (rear)
    Protective Screen Hardness 9H, laminated glass
    Net Weight approx. 25 kg
    Hole Spacing (VESA Standard) 400 x 200 mm, M8, depth 11 - 16 mm
    Note Images may not be exact, please check specifications.
    Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
