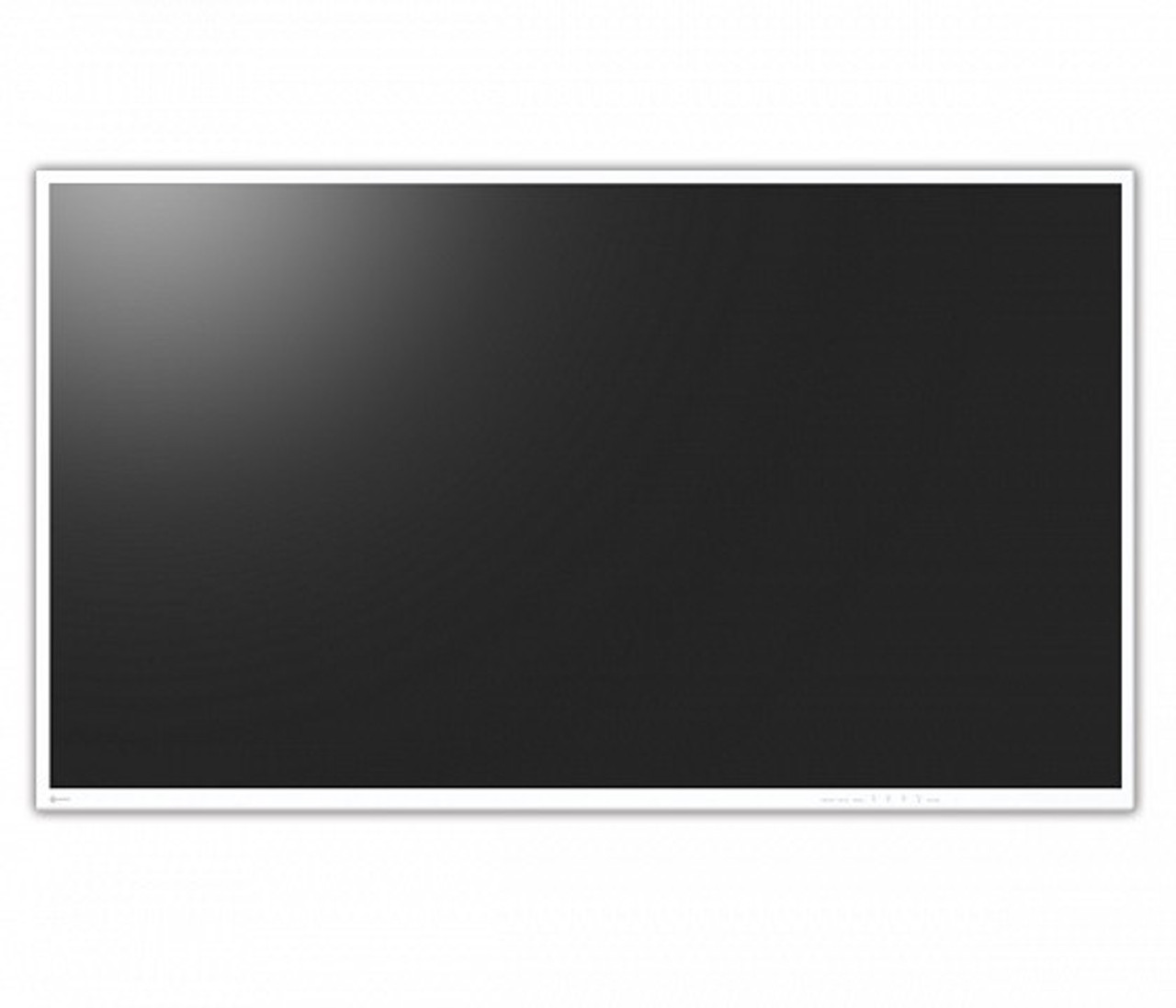

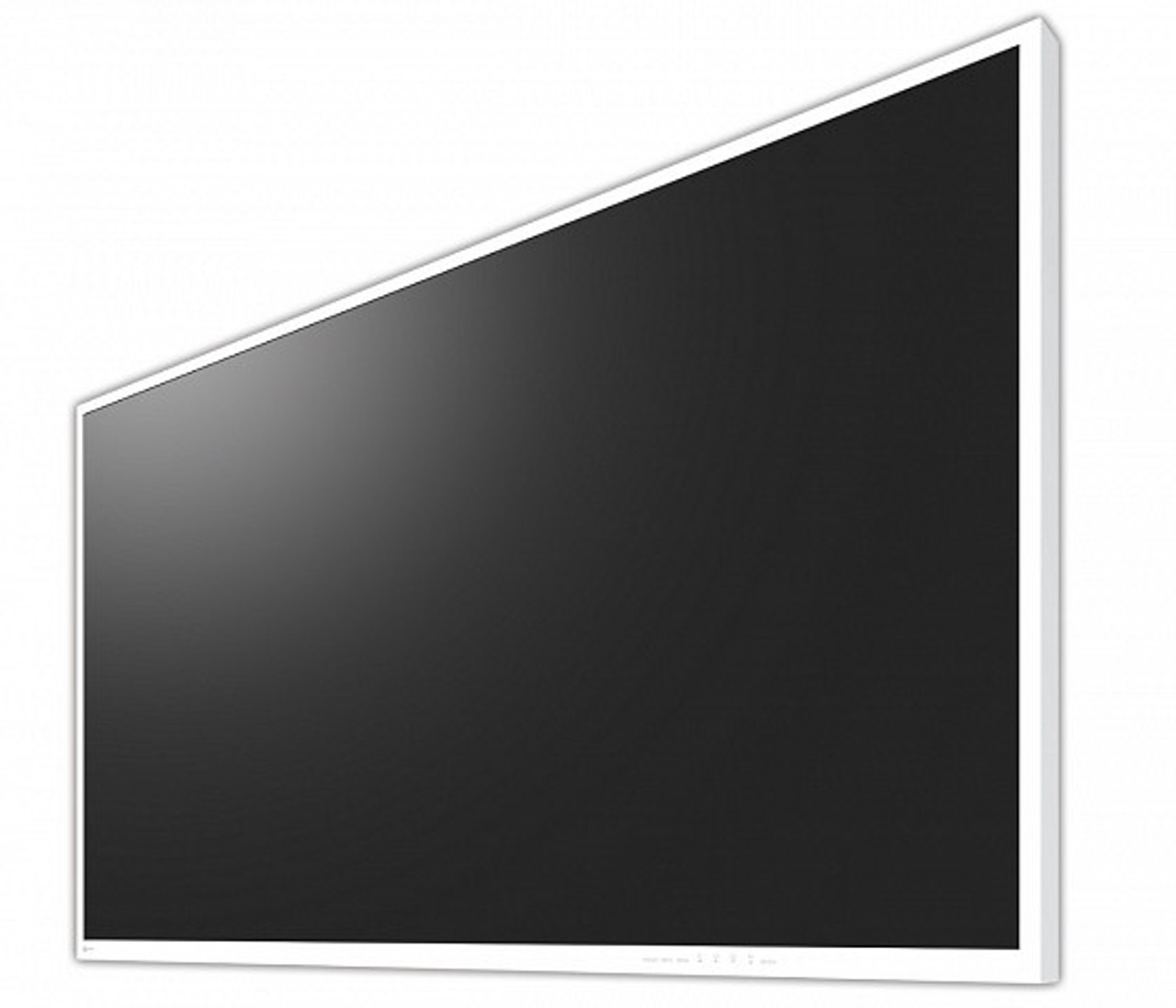

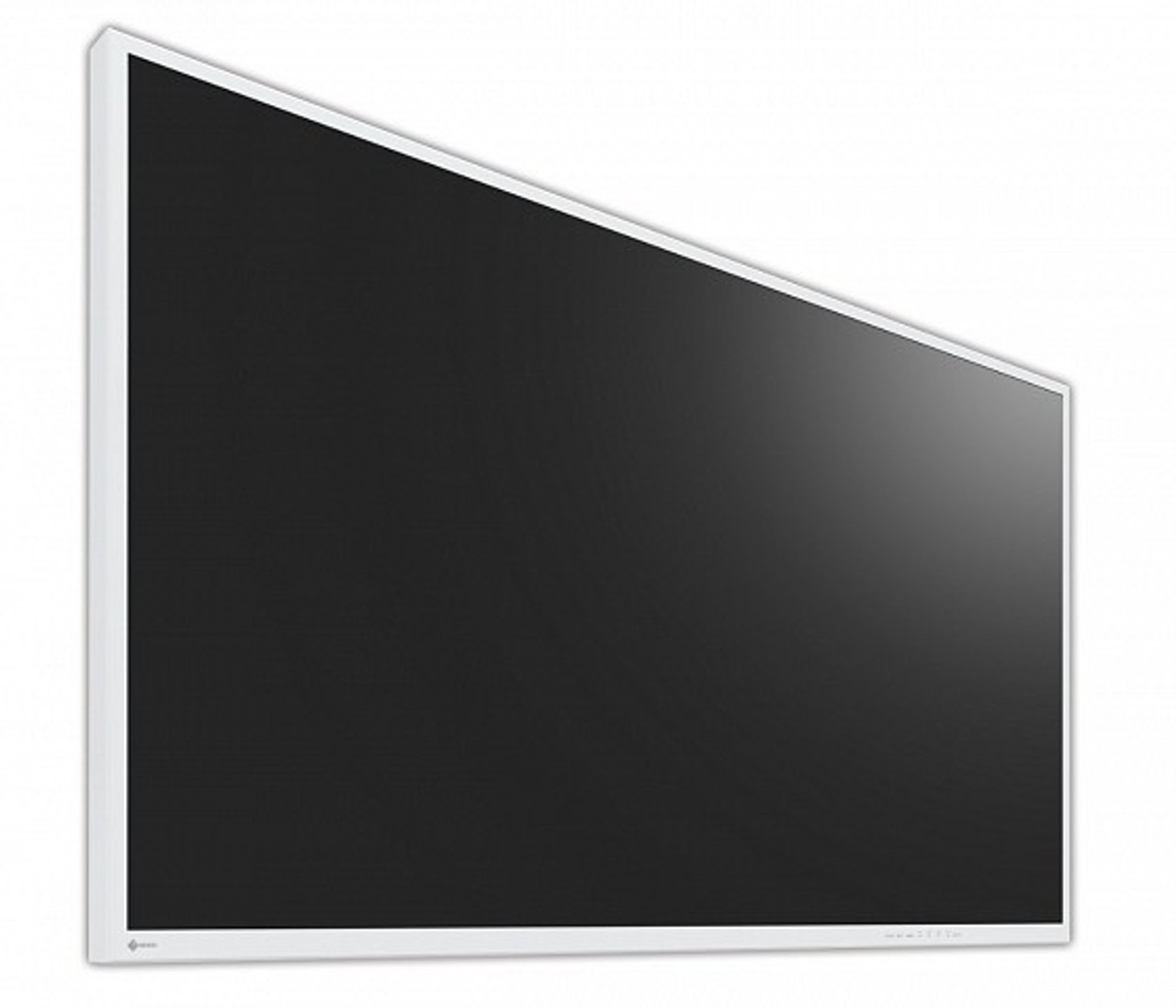

EIZO CuratOR EX5542 55" 4K UHD LED Monitor - 16:9 - White - EX5542

A 55-inch widescreen surgical monitor with 4K UHD (3840 x 2160 pixels) resolution and high brightness for endoscopy, microsurgery, and other high-precision procedures.

• Precise color reproduction (BT.2020)
• HDR support

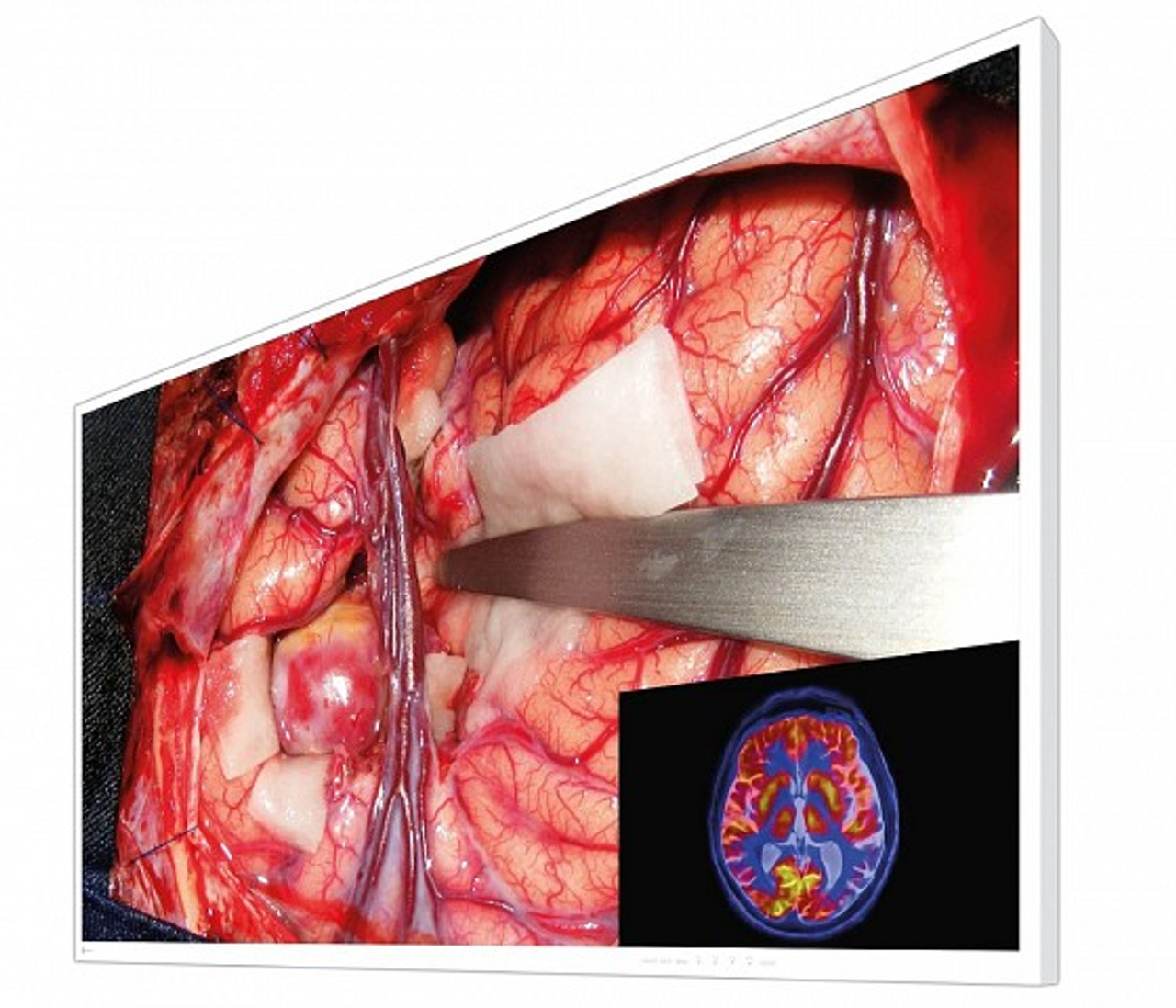

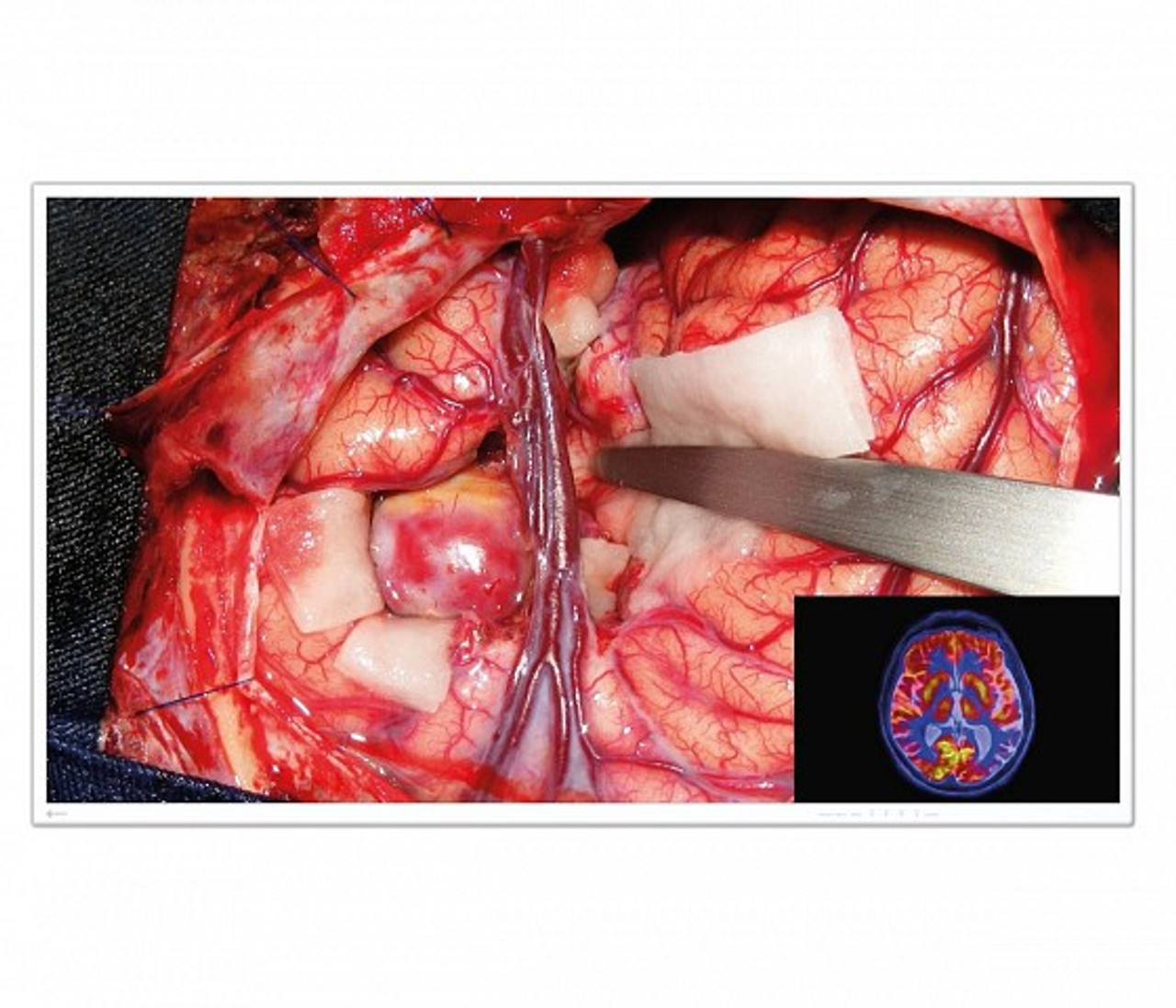

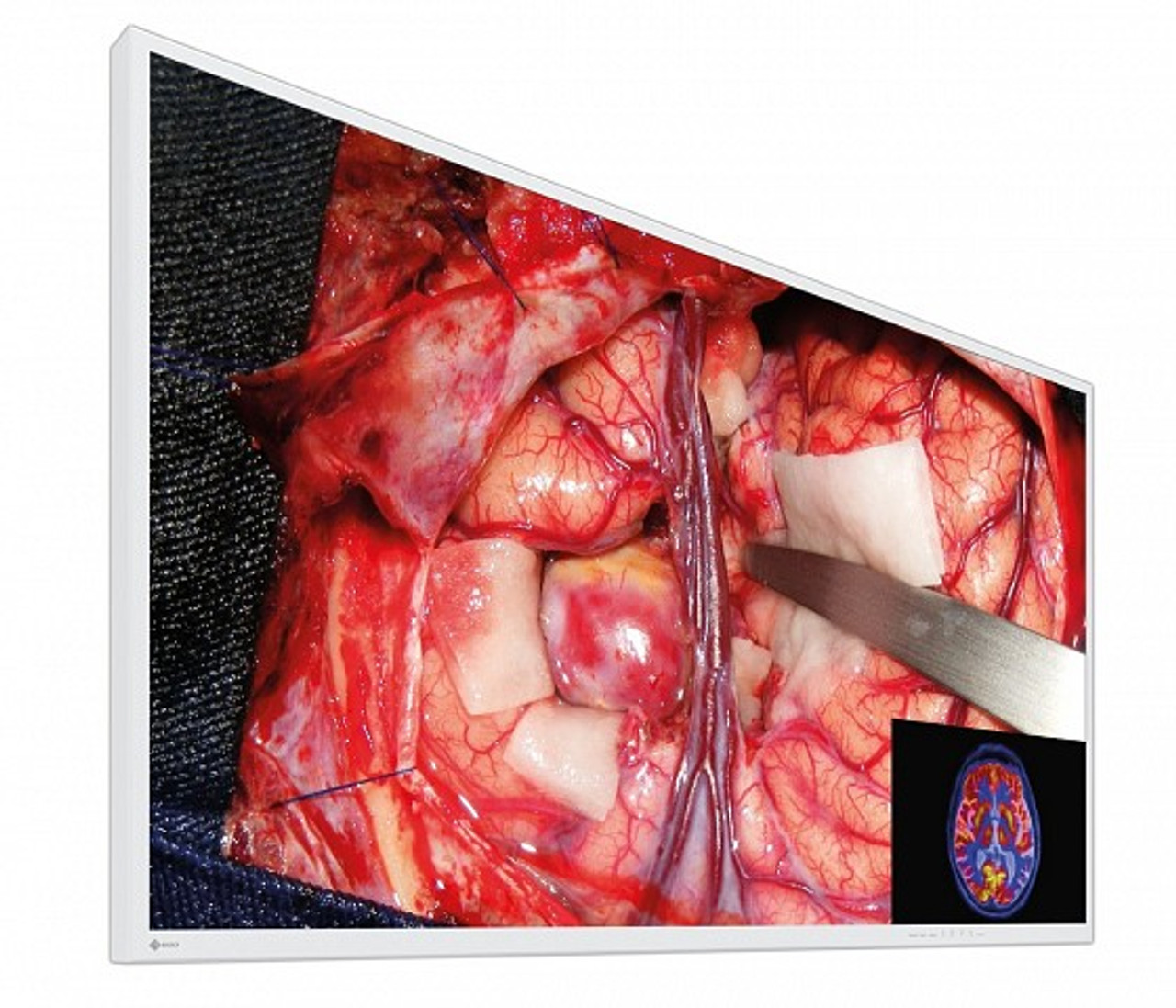

• PinP and PbyP display
• Auto Input Detection

4K UHD Resolution and High Brightness

The monitor uses an energy-efficient LED backlight with a high brightness of 700 cd/m². The high resolution of 3840 x 2160 is four times the size of full HD and faithfully reproduces 4K endoscope and operating microscope images in Ultra High Definition.

Wide Color Gamut for Distinguishing Tones

During procedures, the operating surgeon needs to be able to differentiate between varying color tones. The EX5542 supports the BT.2020 4K video color standard to ensure that subtle differences between shades of reds and yellows captured by BT.2020-supported cameras are distinguishable on the screen.

HDR Compatibility

HDR (High Dynamic Range) is a range that approximates the human perception of color and light as content is shown on a display device. The monitor is equipped with the perceptual quantization (PQ) curve and hybrid log-gamma (HLG) for supporting HDR. This ensures images from HDR-supported endoscope cameras are displayed without crushing blacks and more closely resemble the human visual system.

Fully Flat Design

Operating rooms contain various medical devices that are arranged according to the type of surgery. Safe handling and a sterile environment play a major role. EIZO's surgical monitors adopt a flat design that saves valuable space and promotes easy cleaning and disinfection. Furthermore, the front is covered with protective glass with IP45 for protection against foreign material and splashes (the whole monitor has an IP32 rating).

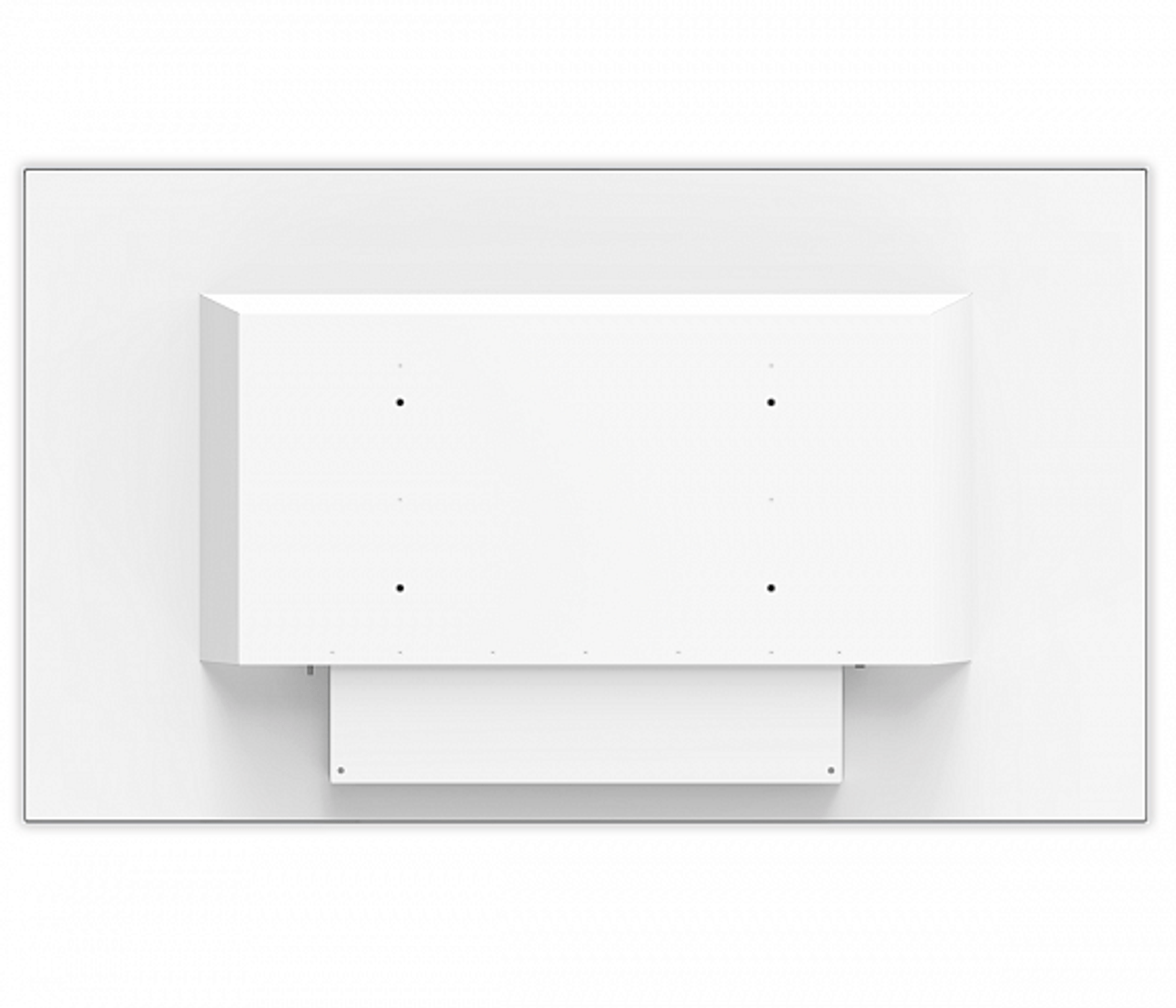

Lightweight and VESA Mounting

Conventional large screen monitors often come with challenges during installation due to their heavy weight and limited range of mounting capabilities. The EX5542 boasts a weight of just 29.3 kg. This makes it much lighter compared to other monitors of this size and thus alleviating difficulty of installation and maintenance. Compliance with the VESA standard allows flexible mounting to common fixtures.

Cable Cover for Safety and Hygiene

With the attached cable cover, the cable connections can be stored neatly out of sight for maintaining a high level of safety and hygiene in the operating room.

Streamlined Connectivity

With BNC (12G-SDI), and DisplayPort or HDMI, up to 4K UHD images are displayed at 60 frames per second with a single cable over various modalities. When connected via BNC (12G-SDI), stable transmission is achieved even over long distances of 30 meters.

Output Images Directly to Multiple Monitors

The monitor is also equipped with BNC (12G-SDI), DisplayPort, and DVI output terminals so input video can be passed through and output directly to the next monitor. The same image is displayed on multiple monitors making information sharing among medical staff smooth in the operating room, while alleviating excess cabling.

• Allows pixels to adjust and accommodate moving scenes and video games with 8 ms response time
• View your content easily in well lit areas with 700 Nit brightness
• Experience breathtaking level of details when you open your eyes to the clarity of 4K UHD screen
• HDMI interface allows you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop PCs, digital cameras and many others for the ultimate true high-definition display
• VESA mount compatibility offers a convenient and desired mounting solution
• LED Monitor is reliable and offers convenient usage
• 55" viewable screen size provides a spectacular viewing experience
• 3840 x 2160 maximum resolution for stunning, lively result with optimal viewing usability
• LED backlight technology offers visual brilliance with maximum efficiency
• 16:9 widescreen resolution perfect for watching movies, playing video games and getting on with office work

BROCHURE
