EnGenius EnStation 11ac Wave 2 supports both CSMA and TDMA - ENSTATION5-AC

Product Description

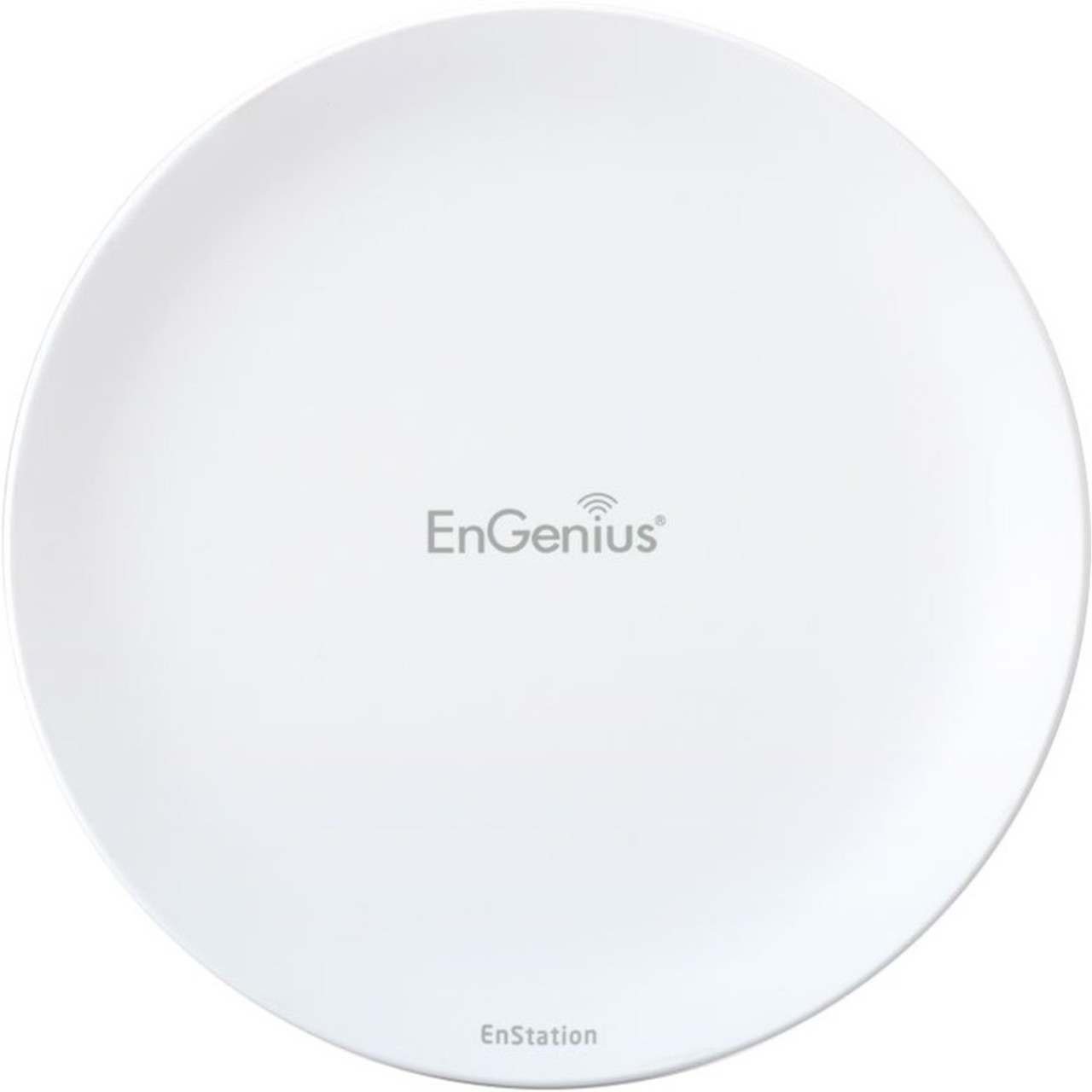

EnStation5-AC enhanced Outdoor 11ac Wave 2, Wireless AC867 Client Bridge/AP delivers high bandwidth over extended distances with reduced interference for point-to-point or point-to-multipoint connectivity. Powerful onboard quad-core processors combine with new 11ac technology to maximize speed and support greater device capacity and connection reliability at exceptional pricing.

Technical Specifications
EnStation5-AC
Standards
IEEE 802.11a/n/ac on 5 GHz

Processor
Qualcomm 717 MHz Quad-Core CPU
4x ARM Cortex A7

Antenna
Directional High-Gain 19 dBi Antenna

Physical Interface
2 x 10/100/1000 BASE-T, RJ-45 Gigabit Ethernet Ports
1 x Reset Button
Link Aggregation Achieves 2 Gbps Throughput

LED Indicators
1 x Power
WLAN (Wireless Connection)
5 GHz
2 x LAN

Power Source
Power-over-Ethernet: Proprietary 24V PoE
IEEE 802.11e Compliant Source
Active Ethernet (PoE)

Maximum Power Consumption
7.5W

Surge Protection
Line to Line: 1 KV
Line to Ground: 2 KV

ESD Protection
Contact: 4KV
Air: 8 KV

Wireless & Radio Specifications
Operating Frequency
5 GHz

Operation Modes
Access Point Mode (AP mode)
Client Bridge Mode (CB Mode)
WDS: WDS AP, WDS Bridge, WDS Station

Frequency Radio
5 GHz: 5150 MHz - 5250 MHz, 5250 MHz - 5350 MHz, 5470 MHz - 5725 MHz, 5725 MHz - 5850 MHz

Transmit Power
Up to 23 dBm

Tx Beamforming (TxBF)

Radio Chains/Spatial Stream
2x2:2

SU-MIMO
Two (2) Spatial Stream SU-MIMO up to 667 Mbps to a single client

MU-MIMO
Two (2) Spatial Stream MU-MIMO up to 867 Mbps to two (2) 1x1 wireless devices simultaneously

Supported Data Rates (Mbps):
5 GHz: Max 867
802.11a: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies
802.11a/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2x2 MIMO with 2 Streams

Channelization
802.11ac Supports Very High Throughput (VHT)-VHT 20/40/80 MHz
802.11n Supports High Throughput (HT)-HT 20/40 MHz
802.11n/ac Packet Aggregation: AMPDU, ASPDU

Supported Modulation
802.11a/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Management
Multiple BSSID
Supports 8 SSIDs

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
Complaint with IEEE 802.11e Standard
WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Management Features
Deployment Options
Stand-Alone (Individually Managed)
Managed Mode (w/ezMaster/Neutron Series Switch)

Stand-Alone Management Features
Auto Channel Selection
Auto Transmit Power
Wireless STA (Client) Connected List
Guest Network
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
Traffic Shaping
VLANs for Access Point - Multiple SSIDs
Backup/Restore Settings
Auto Reboot
E-Mail Alert
Site Survey
Save Configuration as Default

Wireless Management Features (w/ezMaster/Neutron Switch)
AP Auto Discovery & Provisioning
AP Auto IP Assignment
AP Group Management
Auto AP Rebooting
AP Device Name Editing
AP Radio Settings
Traffic Shaping
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
AP Client Limiting
Client Fingerprinting
AP VLAN Management
VLANs for AP - Multiple SSIDs
Secured Guest Network
Access Point Status Monitoring
Wireless Client Monitoring
Email Alert
Wireless Traffic & Usage Statistics
Real-Time Throughput Monitoring
Visual Topology View
Floor Plan View
Map View
Wireless Coverage Display
Secure Control Messaging (SSL Certificate)
Local MAC Address Database
Remote MAC Address Database (RADIUS)
Unified Configuration Import/Export
Bulk Firmware Upgrade Capability
One-Click Update
Intelligent Diagnostics
Kick/Ban Clients
Wi-Fi Scheduler

Control Features
Managed Mode (w/Neutron Switch/ezMaster)
Distance Control (ACK Timeout)
Multicast Supported
Wi-Fi Scheduler
Client Traffic Status
RADIUS Accounting (802.1x)
Power Save Mode (U-APSD Support)
CLI Support
HTTPS

Wireless Security
WEP Encryption 64/128/152 bit
WPA/WPA2 Enterprise (WPA-EAP using TKIP or AES)
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation



Environment & Physical
Temperature Range
Operating: -4 degreesF-140 degreesF (-20 degreesC-60 degreesC)
Storage: -22 degreesF-176 degreesF (-30 degreesC-80 degreesC)

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

Waterproof
IP55-Rated Enclosure

Dimensions & Weights
EnStation5-AC Device
Weight: 1.11 lbs. (460 g)
Depth: 7.48" (190mm)
Height: 1.49" (38mm)

Packaging
Weight: 2.47 lbs. (1.21 kg)
Width: 12.63" (321 mm)
Length: 9.72" (247 mm)
Height: 3.46" (88 mm)

Master Carton
Weight: 27.44 lbs. (12.45 kg)
Width: 20.23" (514 mm)
Length: 18.22" (463 mm)
Height: 14.21" (361 mm)
No. of boxes per carton: 10 pcs

Package Contents
1 - EnStation5-AC Outdoor Wireless Bridge
1 - PoE Adapter (EPA2406GP)
2 - Pole-Mounting Brackets
1 - Wall-Mount Screw Set
1 - Power Cord
1 - Quick Installation Guide

Certifications
FCC, CE, RCM, CB

Warranty: 1 Year
