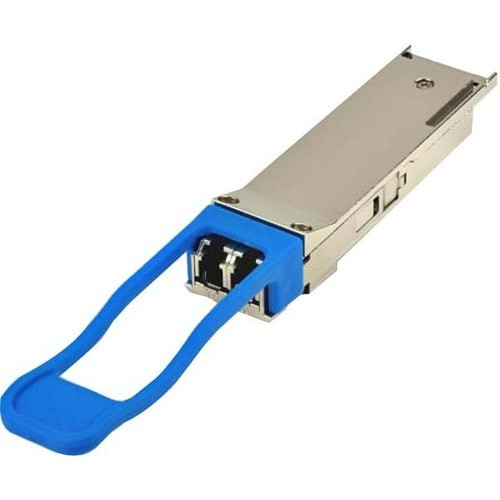

Finisar 40GBase-LR4 and OTU3 Multirate 10km Gen2 QSFP+ Optical Transceiver - For Optical Network, Data Networking - 1 x LC Duplex 40GBase-LR4 Network - Optical Fiber - Single-mode - 40 Gigabit Ethernet - 40GBase-LR4 - Hot-pluggable - FTL4C1QM2C

Product Description

Finisar 40GBase-LR4 and OTU3 Multirate 10km Gen2 QSFP+ Optical Transceiver - For Optical Network, Data Networking - 1 x LC Duplex 40GBase-LR4 Network - Optical Fiber - Single-mode - 40 Gigabit Ethernet - 40GBase-LR4 - Hot-pluggable

FTL4C1QM2C QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links and 4x10G OTN client interfaces over single mode fiber. They are compliant with the QSFP+ MSA, IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 requirements specified in ITU-T Recommendation G.695. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

• Hot-pluggable QSFP+ form factor
• Supports 39.8 Gb/s to 44.6 Gb/s aggregate bit rates
• Power dissipation < 3.5W
• RoHS compliant
• Commercial temperature range 0°C to 70°C
• Single 3.3V power supply
• Maximum link length of 10km on Single Mode Fiber (SMF)
• Uncooled 4x10Gb/s CWDM transmitter
• XLPPI electrical interface
• Duplex LC receptacles
