Product Description

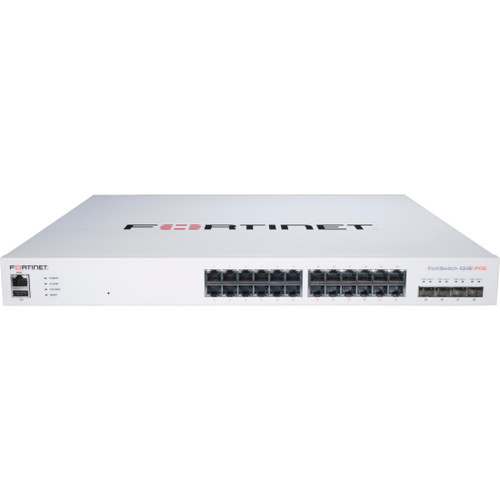

Fortinet FS-424E-POE Layer 3 Switch - 24 Ports - Manageable - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - 1U High - Rack-mountable - Lifetime Limited Warranty
Security Fabric Integration through FortiLink
FortiLink is an innovative proprietary management protocol that allows our FortiGate Next-Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage. This control and manageability make FortiSwitch ideal for SD-Branch deployments.
Specifications are provided by the manufacturer. Refer to the manufacturer for additional explanations. Product may not be exactly as shown.
Technical Specs
Management & Protocols
Manageable | Yes |
Network & Communication
Layer Supported | 3 |
Warranty
Limited Warranty | Lifetime |
Power Description
Power Source | Power Supply |
Redundant Power Supply Supported | Yes |
I/O Expansions
Expansion Slot Type | SFP+ |
Number of Total Expansion Slots | 4 |
Number of SFP+ Slots | 4 |
Miscellaneous
Country of Origin | Taiwan |
Environmentally Friendly | Yes |
Environmental Certification | RoHS 2 |
General Information
Product Type | Layer 3 Switch |
Manufacturer Part Number | FS-424E-POE |
Manufacturer Website Address | http://www.fortinet.com |
Manufacturer | Fortinet, Inc |
Product Model | FS-424E-POE |
Product Name | FS-424E-POE Layer 3 Switch |
Product Line | FortiSwitch |
Product Series | 400 |
Brand Name | Fortinet |
Interfaces/Ports
Modular | Yes |
Stack Port | Yes |
Total Number of Network Ports | 24 |
Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
24 x Gigabit Ethernet PoE |
Media & Performance
Network Technology | 10/100/1000Base-T |
10GBase-X | |
Ethernet Technology | 10 Gigabit Ethernet |
Gigabit Ethernet | |
Media Type Supported | Twisted Pair |
Optical Fiber |
Physical Characteristics
Weight (Approximate) | 11.57 lb |
Form Factor | Rack-mountable |
Height | 1.8" |
Width | 17.3" |
Depth | 10.1" |
Compatible Rack Unit | 1U |
