Product Description
Full HD HDMI Extender over IP with PoE, RS-232 & IR - Transmitter - Over CAT5e/6 up to 100 Meters
Transmits HDMI signals over CAT5e/6 cabling up to 100 meters to a remote display using PoE Gigabit switches
- Transmitts HDMI signals with stereo audio to a remote display over UTP Cat5e/6 cabling up to 100 meters. Note: Requires Full HD HDMI Extender over IP with PoE, RS-232 & IR - Receiver, part# CE-H26511-S1, sold separately
- Works as a scalable TX/RX Matrix over dedicated IP network using PoE Gigabit Switches, allows up to 255 total units, limited to 64 transmitters. Requires additional transmitter units (part# CE-H26411-S1) and receiver units (part# CE-H26511-S1) sold separately
- Note: IGMP PoE Gigabit Switch is recommended for best performance and reliability
- Power over Ethernet (PoE) powers the transmitter(s) and receiver(s) over Cat cable from your PoE Gigabit Switch (purchase separately)
- Full HD 1080p video resolution delivers stunning and clear images
- Local HDMI loop-out allows you to monitor the extended display from the source location
- IR pass back function controls the source device from remote RX location
- Computer control software allows you to select and switch between source devices (Matrix mode only)
- Video protocol with H.264 compression over IP
- Features MP3 audio compression and stereo 192Kbps encoder/ decoder
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
Package Contents

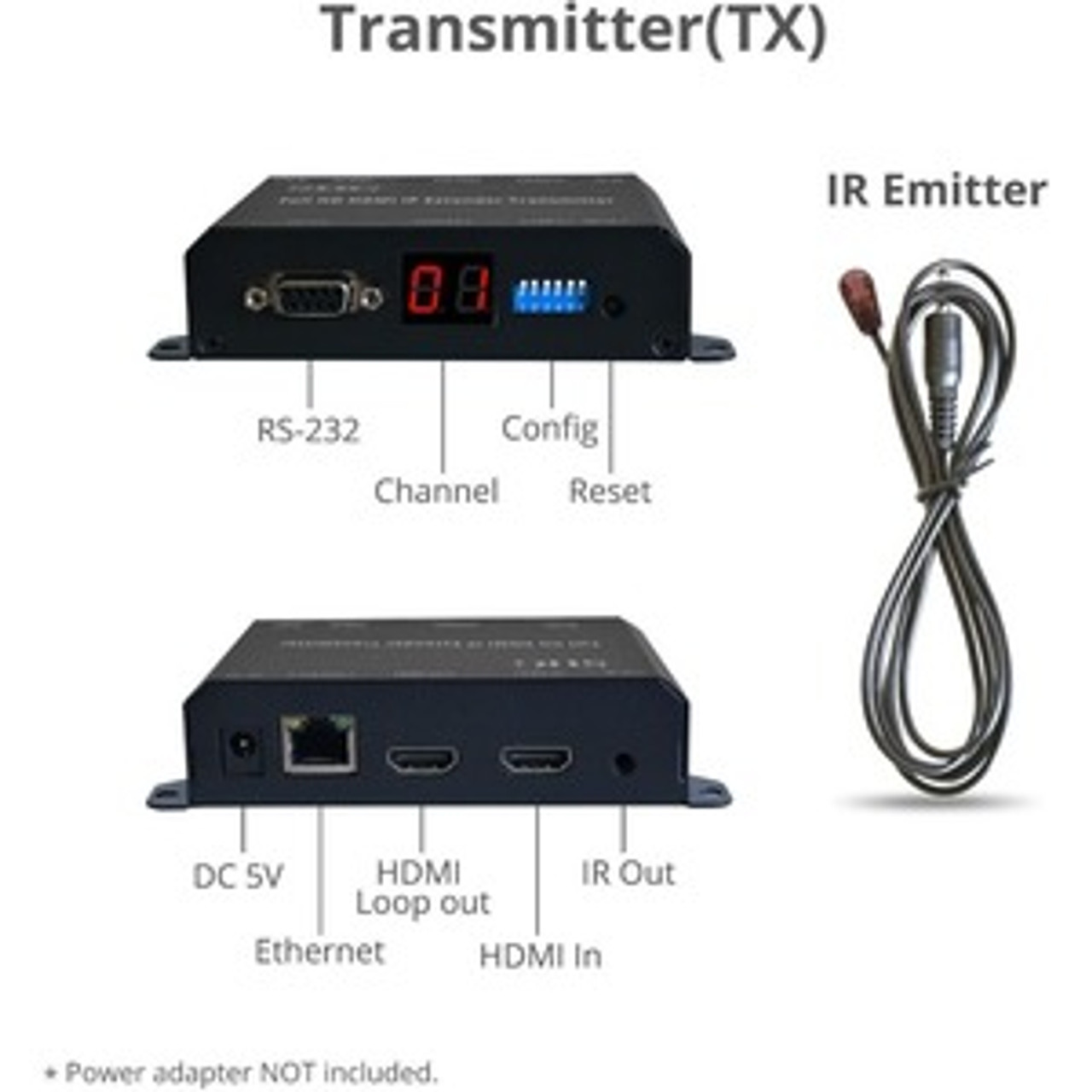

- Full HD HDMI Extender over IP with PoE, RS-232 & IR - Transmitter
- 1 x IR Emitter cable
- Quick Start Guide
Product Type KVM Extender Transmitter
MPN CE-H26411-S1
Limited Warranty 2 Year
Connectivity Technology Wired
Manufacturer SIIG, Inc
Product Name Full HD HDMI Extender over IP with PoE, RS-232 & IR - Transmitter
Brand Name SIIG
Country of Origin China
Environmentally Friendly Yes
Environmental Certification RoHS
Maximum Video Resolution 1920 x 1080
Graphic Mode Full HD
Maximum Operating Distance 328.08 ft
HDMI Yes
Number of HDMI Ports 2
Number of Network (RJ-45) Ports 1
Network (RJ-45) Yes
Number of Computers Supported 1
Number of Local Users Supported 1
Transmitter Height 3.23"
Transmitter Width 5.12"
Transmitter Depth 1.19"
Transmitter Weight (Approximate) 10.24 oz
Device Type KVM Extender
Product Color Black
