Product Description

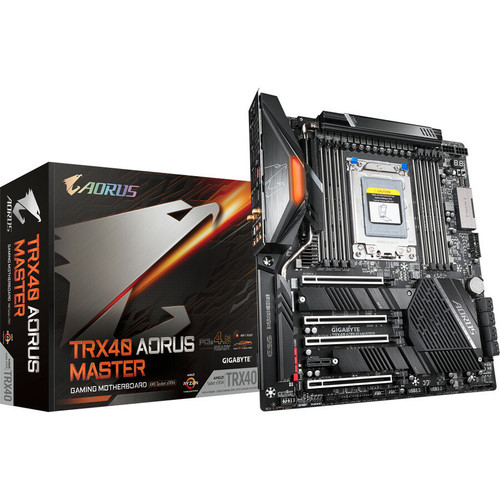

Aorus TRX40 AORUS MASTER Desktop Motherboard - AMD Chipset - Socket sTRX4 - Extended ATX - 256 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 8 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - 8 x SATA Interfaces
AMD TRX40 AORUS Motherboard with Direct 16+3 Phases Infineon Digital VRM, Fins-Array Heatsink, NanoCarbon Baseplate, 5GbE+1GbE LAN, 3 PCIe 4.0 M.2 with Thermal Guards, Intel® WiFi 6 802.11ax, ESS SABRE HiFi 9218 DAC, RGB FUSION 2.0
- Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors
- Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs
- 16+3 Phases Infineon Digital VRM Solution with 70A Power Stage

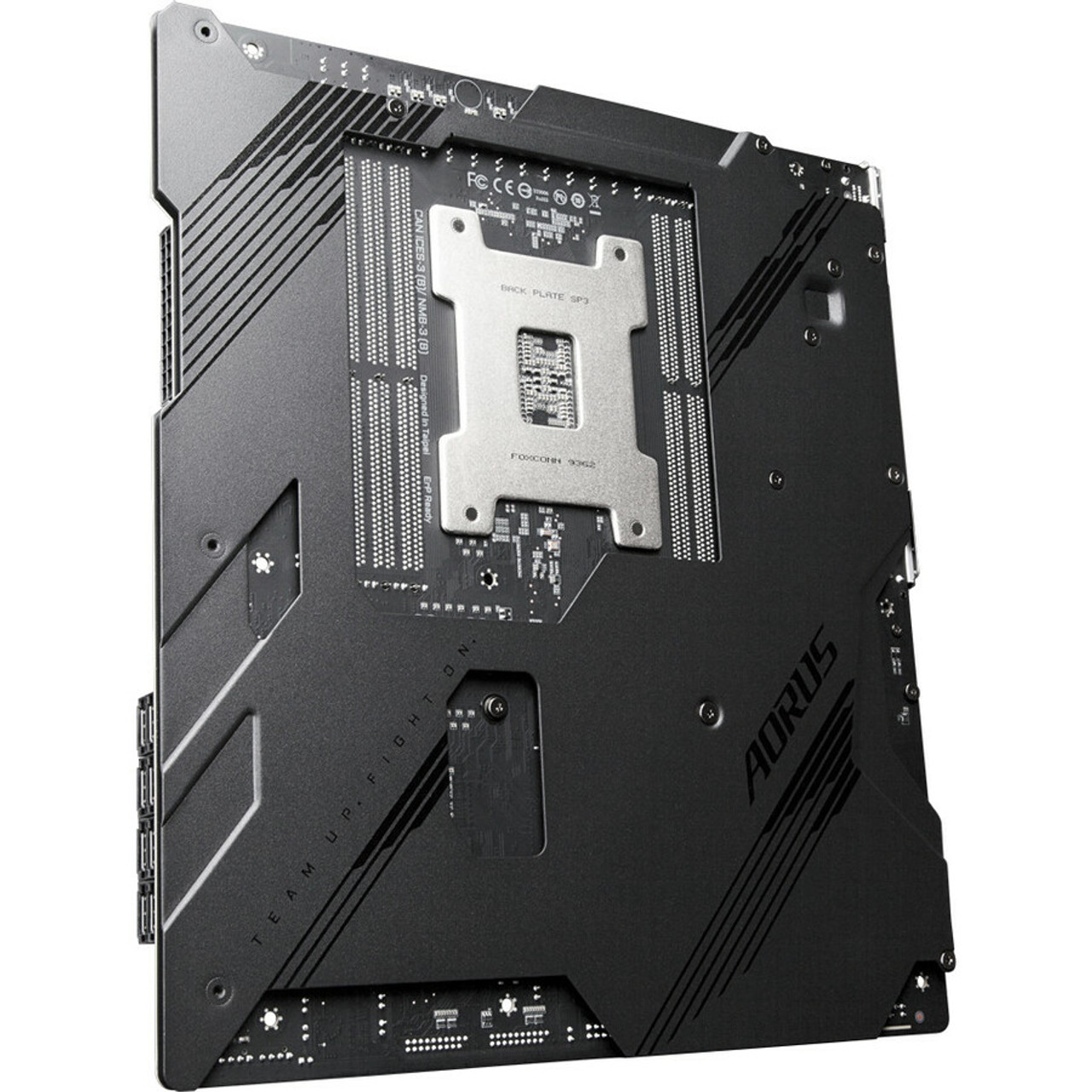

- Advanced Thermal Design with Fins-Array Heatsink, Heatpipe with Extended Heatsink and NanoCarbon Baseplate
- AQUANTIA® 5GbE LAN and Intel® GbE LAN with cFosSpeed
- 3 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guards
- Onboard Intel® WiFi 6 802.11ax 2T2R & BT 5
- 130dB SNR AMP-UP Audio with High-End ESS SABRE 9218 DAC, ALC1220-VB and WIMA Audio Capacitors
- USB TurboCharger for Mobile Device Fast Charge Support
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
- Front & Rear USB 3.2 Gen 2 Type-C™ Header
- Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card
ULTIMATE POWER DESIGN
To unleash the full potential of the 3rd Generation AMD Ryzen™ Threadripper™ CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, TRX40 AORUS MASTER is a true beast among motherboards.
ADVANCED THERMAL DESIGN
TRX40 AORUS MASTER reaches a perfect balance between style and performance by combining the media acclaimed Fins-Array heatsink, Heatpipe and a thermal baseplate, to provide lower MOSFET temperatures for enthusiasts, overclockers and professional gamers.
ULTIMATE PERFORMANCE
TRX40 AORUS MASTER pushes the envelope once again by featuring Full PCIe 4.0 Design, delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts.
NEXT GENERATION CONNECTIVITY
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. TRX40 AORUS MASTER provides all next generation network, storage, and WIFI connectivity to keep you up to speed.
AORUS AESTHETICS
TRX40 AORUS MASTER features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make their PC more unique and stylish.
HI-FI AUDIO SYSTEM
For enthusiasts, sound quality is just as essential to the gaming experience. TRX40 AORUS MASTER is equipped with several audiophile level components such as ESS SABRE DAC and WIMA capacitors to provide a superb audio experience.
DTS :X® Ultra
Recreates an authentic, spatially accurate 3D audio experience for gaming over any headphones or speakers. Supports channel-based, scene based and object-based audio. Provides out-of-the-box calibration for a range of headphones and speakers. Provides post-processing enhancements and device level tuning for DTS® codecs.
DTS Sound Unbound leverage Microsoft Spatial, enabling the the most believable, 3D audio experience for games. Immersion through DTS Headphone:X means in the sonic landscape, stationary and moving sounds can be heard from above, below or around the listener. Sounds pass around the listener with amazing externalization and accurate localization.
| Audio Channels | 7.1 |
| Onboard Video | No |
| Maximum Memory | 256 GB |
| 256 GB | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 8 |
| Memory Form Factor | DIMM |
| UDIMM | |
| Memory Speed Supported | 4000 MHz |
| 4133 MHz | |
| 4266 MHz | |
| 4400 MHz | |
| 2133 MHz | |
| 2400 MHz | |
| 2667 MHz | |
| 2933 MHz | |
| 3200 MHz | |
| 3300 MHz | |
| 3333 MHz | |
| 3400 MHz | |
| 3466 MHz | |
| 3600 MHz | |
| 3733 MHz | |
| 3866 MHz | |
| 4000 MHz | |
| 4133 MHz | |
| 4266 MHz | |
| 4400 MHz | |
| 2133 MHz | |
| 2400 MHz | |
| 2667 MHz | |
| 2933 MHz | |
| 3200 MHz | |
| 3300 MHz | |
| 3333 MHz | |
| 3400 MHz | |
| 3466 MHz | |
| 3600 MHz | |
| 3733 MHz | |
| 3866 MHz |
| Limited Warranty | 3 Year |
| Package Contents |
|
| Country of Origin | Taiwan |
| Form Factor | Extended ATX |
| Width | 12" |
| Depth | 10.6" |
| Number of PCI Express x1 Slots | 1 |
| Number of Total Expansion Slots | 5 |
| Number of PCI Express x16 Slots | 4 |
| Total Number of PCI Express Slots | 5 |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Processor Supported | Ryzen Threadripper |
| Total Processor Supported | 1 |
| Processor Socket | Socket sTRX4 |
| Chipset Manufacturer | AMD |
| RAID Levels | 1 |
| 0 | |
| 10 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| S/PDIF | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Ports | 5 |
| Number of SATA Interfaces | 8 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 3 |
| Number of Onboard USB 3.2 Ports | 4 |
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | TRX40 AORUS MASTER |
| Manufacturer Website Address | http://www.gigabyte.us |
| Manufacturer | GIGABYTE Technology, Inc |
| Product Model | TRX40 AORUS MASTER |
| Product Name | TRX40 AORUS MASTER (rev. 1.0) Desktop Motherboard |
| Brand Name | Aorus |
