Product Details
Gigabyte G241-G40 HPC Server - 2U 4 x GPUs Server - 6-Channel RDIMM/LRDIMM DDR4, 12 x DIMMs - 2nd Gen. Intel Xeon Scalable and Intel Xeon Scalable Processors
Key features
- Supports up to 4 x double slot GPU cards
- NVIDIA validated GPU platform; Supports for NVIDIA Tesla GPUs
- NVIDIA NGC Ready server
- 2nd Gen. Intel Xeon Scalable and Intel Xeon Scalable Processors
- Dual processor, LGA 3647
- 6-Channel RDIMM/LRDIMM DDR4, 12 x DIMMs
- 2 x 10Gb/s BASE-T and 2 x 1Gb/s LAN ports
- 1 x Dedicated management port
- 4 x 3.5" SATA hot-swappable HDD/SSD bays
- 2 x SATA DOM supported
- 2 x M.2 slots with PCIe Gen3 x4 interface
- 4 x FHFL PCIe Gen3 x16 slots for GPUs
- 3 x LP PCIe Gen3 x16 and x8 slots for add-on cards
- Aspeed AST2500 remote management controller
- Dual 2000W 80 PLUS Platinum redundant/hot-swap power supply
2nd Generation Intel Xeon Scalable Family Ready
GIGABYTE’s servers are fully ready to support the second generation of Intel Xeon Scalable Family processors, codenamed “Cascade Lake”, which bring the following major enhancements:
- Intel Optane Persistent Memory: Built-in support for this revolutionary new product based on Intel’s 3D Xpoint technology
- Overall Performance: Higher CPU frequencies, improved turbo profiles vs. prior-gen Intel Xeon Scalable processors
- Increased DDR4 Memory Speed & Capacity: Up to 2933MHz (1 DIMM per channel on some SKUs), 16Gb based DIMM supported
- Intel Deep Learning Boost: Significantly accelerates inference performance for deep learning workloads optimized to use VNNI (Vector Neural Network Instructions)
- Security: Hardware mitigations for Meltdown / Spectre security vulnerabilities
Intel Xeon Scalable Family Processors
GIGABYTE’s Intel Xeon Scalable Processor family servers are available in dual socket configurations, and are compatible with the full family* of different SKUs (Bronze, Silver, Gold and Platinum) that are workload optimized to support different applications, from enterprise IT database, cloud and storage to the most high-demand HPC workloads.
* SKU compatibility will depend on the maximum CPU TDP supported for each system, please refer to each product’s specification page for further information
Advanced features built into the silicon include:
- Intel QAT: Speed up data compression and cryptography with integrated Intel QuickAssist Technology (QAT).
- Intel AVX-512: Intel Advanced Vector Extension 512 instruction set architecture enables workload-optimized performance and throughput increases for advanced analytics, high performance computing (HPC) applications, and data compression.
- Intel VROC: Intel Xeon Scalable Processors come with built-in support for Intel VROC (Virtual RAID on CPU). And Gigabyte Intel Xeon Scalable NVMe SKU servers all ship with an Intel VROC module as standard.
- Intel Omni-Path: Selected Gigabyte servers support CPU SKUs with integrated Intel Omni-Path Fabric connection
Compute
Memory
I/O
GIGABYTE’s second generation Intel Xeon Scalable family servers come ready to support Intel Optane Persistent Memory, a revolutionary new product that re-defines traditional memory & storage architectures by enabling a large persistent memory tier between DRAM and SSDs, that’s higher capacity than DRAM and faster than SSDs, enabling the user to bring more data closer to the CPU for faster time for insight.
Optane Persistent Memory Modules (“PMem”) integrate seamlessly into existing DDR4 DIMM slots, and use Intel’s 3D Xpoint memory technology, which unlike DRAM retains data after power is removed. The modules will be available in capacities up to 512GB – a massive increase compared to the current maximum 128GB of industry-leading DDR4 memory sticks – and can be addressed by the OS or application either as memory (Memory Mode) or storage (Application Direct Mode).
Note: the maximum number of Intel® Optane™ PMem that can be installed per system and the DIMM slot positions that can be used for PMem will vary according to each server model due to thermal considerations. Please refer to each product’s specification page for further instructions.
G241-G40 Product Overview
Supports 4 x Computing Cards
Using our expertise in thermal and mechanical design, Gigabyte leads the HPC industry by offering some of the highest GPU density server products on the market.
Gigabyte systems are thermally designed with the highest rated CPU SKUs in mind so that top performance is enabled which ever Xeon Scalable CPU you choose.
GIGABYTE’s passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE’s server motherboards are built with long lasting components for a high degree of reliability and durability.
GIGABYTE’s server platforms contain many tool less design features for easy installation, maintenance and removal – never worry about forgetting your toolbox or losing a screw again!
Tool-less Rail Kits
Rail kits attach to the side of the server chassis via clipping mechanism.
Tool-less 2.5” & 3.5” Drive Bays
Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.
Gigabyte SERVER Xeon Scalable servers are designed to guarantee high conversion efficiency regardless of load. Redundant 80 Plus ‘Titanium’ or ‘Platinum’ PSUs, combined with GIGABYTE’s precision engineering, translates to super efficient power usage which maximizes the system’s power : performance ratio and reduces OPEX for the user.
Intelligent Power Management Features
SCMP (Smart Crises Management / Protection)
SCMP is a Gigabyte patented feature that will automatically force the system’s CPU to enter ULFM (ultra-low frequency mode for minimum power consumption) when the BMC is alerted to a PSU fault or error (such as power loss, power surge, overheating or a fan problem). This feature will prevent shutdown in systems with less than 1 + 1 PSU redundancy when one PSU is lost. In a 2U 4 Node server, only two nodes will be switched to low power mode, while two remaining nodes can continue normal operation. When the fault is resolved or the PSU is replaced, the system will automatically return to normal power mode.
System Loading Curve
Gigabyte Management Console
Gigabyte server utilizes the AMI MegaRAC SP-X solution for BMC server management, has a browser-based graphical user interface, and is feature-rich and easy to use.
- RESTful API support includes the latest DMTF standard of Redfish. Allows integration with 3rd party applications for server management
- Including HTML5 based iKVM remote management client, no need to purchase other additional licenses
- Detailed FRU information from SMBIOS
- 10 to 30 seconds pre-event automatic recording function
- SAS / RAID controller monitoring function
Gigabyte Server Management (GSM)
Gigabyte Server Management (GSM) is GIGABYTE’s proprietary multiple server remote management software platform, available as a free download from each Gigabyte server product page. GSM is compatible with either IPMI or Redfish connection interfaces, and comprises the following sub-programs:
- GSM Server
A software program with an easy to use browser-based GUI to enable global remote monitoring and management of multiple Gigabyte servers via each server node’s BMC. - GSM CLI (GBT Utility)
A command-line interface program to enable global remote monitoring and management of multiple Gigabyte servers via each server node’s BMC. - GSM Agent
A software program installed locally on each Gigabyte server node that retrieves additional node information (CPU/Mem/HDD/PCI/…) from the OS and passes it to the BMC. This information can then be utilized by GSM Server or GSM CLI. - GSM Mobile
A remote server management mobile APP, available for both Android and iOS. - GSM Plugin
A plugin that allows the user to manage and monitor Gigabyte server nodes within VMware’s vCenter.
Automatic Fan Speed Control
To achieve the best cooling and power efficiency, Gigabyte servers are enabled with automatic fan speed control. Individual fan speed will be automatically adjusted according to CPU, DIMM, M.2, HDD, and GPU temperature sensors. When BMC detects a temperature change at a particular location, the corresponding fan speed will be changed accordingly.
Certified Ready with Software Partners
Being a member of key software alliance partner programs enables Gigabyte to rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.
Support Various Computing Accelerators

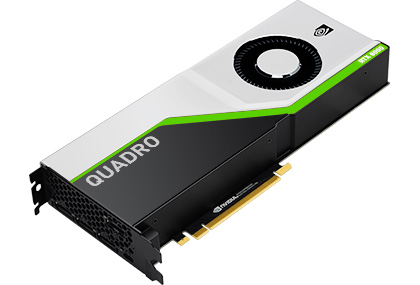

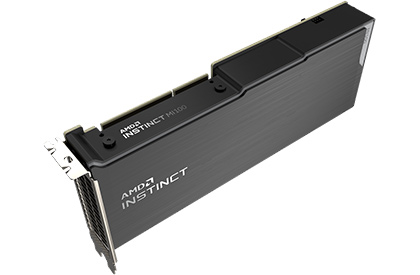

Gigabyte servers have been tested and validated across a range of workloads with various computing accelerators designed to deliver high levels of performance for deep learning, high performance computing (HPC), enabling data scientists, researchers, and engineers to tackle challenges that were once impossible.
NVIDIA NGC Ready Server
NGC (NVIDIA GPU Cloud) is an online, free to use platform which features GPU accelerated containers, a container registry and software for deploying and running these containers. New NGC containers are published monthly and offer the latest features and superior performance on NVIDIA GPUs, can be used with multi-GPU & multi-node systems for scale-up & scale-out environments, and feature support for Docker & Singularity runtimes as well as VMware vSphere.

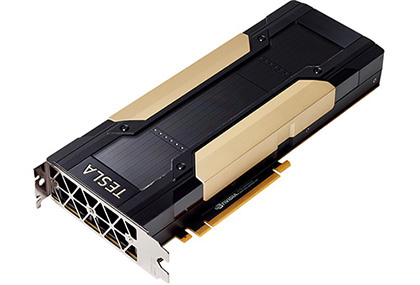

Supercharged with NVIDIA V100 or T4 GPUs, this Gigabyte server has been fully validated and is ready to be used with NGC. NGC containers can be quickly and easily deployed onto this server to run GPU-accelerated workloads for deep learning, machine learning, and HPC. NGC takes care of all the plumbing so data scientists, developers, and researchers can focus on building solutions, gathering insights, and delivering business value.
Being NGC Ready gives data center managers the confidence to deploy this server knowing that it can be quickly set up to excel at a wide variety of CUDA-X accelerated applications. Optional direct enterprise grade support is also available from NVIDIA to further ensure peace of mind.
