Product Details
- 3rd Gen. Intel® Xeon® Scalable Processors
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs
- Supports Intel® Optane™ Persistent Memory 200 series
- Intel® C621A Express Chipset
- 2 x 1Gb/s LAN ports (Intel® I210-AT)
- 1 x Dedicated management port
- 2 x 7-pin SATA 6Gb/s ports
- 3 x SlimSAS with 12 x SATA 6Gb/s ports
- 2 x Ultra-Fast M.2 with PCIe Gen4 x4 interface
- 6 x PCIe Gen4 x16 expansion slots
Where Compute Reigns
3rd Gen Intel® Xeon® Scalable Processors – “Ice Lake”
GIGABYTE servers and Intel Xeon Scalable Processors deliver incredible 1P/2P performance from edge to data center with incredible gains in I/O throughput and workload demands that need high performing CPUs with large, yet optimized, memory configurations.
- Enhanced I/0: Support for PCIe 4.0 allows for double the throughput of PCIe 3.0 for fast and large data transfers. Also, 64 lanes per socket with up to 128 lanes in a 2P configuration for fast data transmission from CPU to GPU, accelerator or storage.
- CPU Performance Boost: Now up to 40 cores per socket with greatly improved IPC on Intel’s 10nm architecture while operating CPUs at 105-270W. Also, an additional UPI lane is added for up to 11.2GT/s for a low latency interconnect between CPUs.
- Next Gen Memory: Support for DDR4-3200MHz (1DPC or 2DPC) DIMM. 8 channel memory has been added with up to 16 DIMMs per socket delivering up to 4TB of system memory via usage of 256GB DDR4 DIMM. Additionally, 2/4/6/8-way interleaves for optimal configuration.
- Arrival of Intel Optane PMem 200 Series: Optimized for improvements in latency while increasing system memory up to 6TB per socket as a mix of PMem and DDR. The 200 Series also has support for memory mode to expand capacity and app direct mode to act as fast flash storage.
- Next Level Security: New instructions and architecture deliver a high level of cryptographic operations for data privacy and protection. Cryptographic accelerators speed up encryption protocols as well as improvements in software guard extensions and memory encryption are added.
- AI Acceleration: AI inference and training are enhanced with DL Boost Technology for greater business, operational, and security insights. Applications include HPC, AI, and Media & Graphics.
Why GIGABYTE MD72-HB3
Accelerator Computing
3 dual-slot GPU supported in compact MBParallel processing with multiple GPUs are driving discoveries and powering AI and data analytics. Offering support for dual slot GPUs allows for the highest, dense GPU compute possible. Delivering the fastest throughput for data, PCIe Gen 4 lanes are all in x16 mode for a total bandwidth of 64GB/s per GPU.
Flexibility
Special one socket usage for early stage testingFor those that need to be able to adjust to new needs, GIGABYTE servers have incorporated a high level of flexibility. Scalable CPU usage allowing populating only one socket while maintaining function of 2 dual slot GPUs and all storage.
High-performance
All slots support full-length cardsGIGABYTE servers have been designed to support the cutting edge, high-end CPUs and 6 expansion slots in EATX MB while utilizing the latest in PCIe 4.0 for fast throughput. And the platforms are supported by 3 UPI links and 8 channel for up to 16 DIMMs to offer optimal configurations.

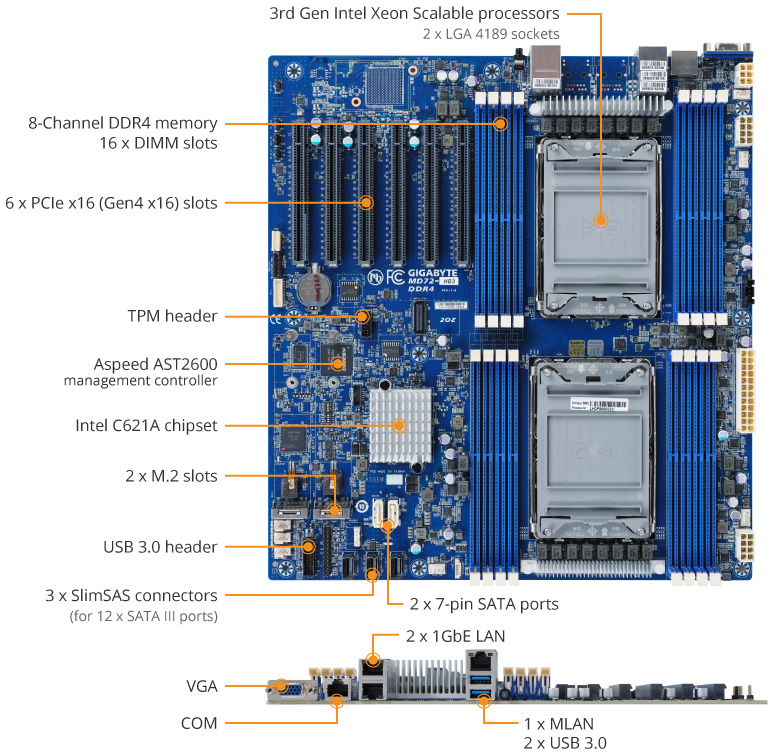

MD72-HB3 Product Overview

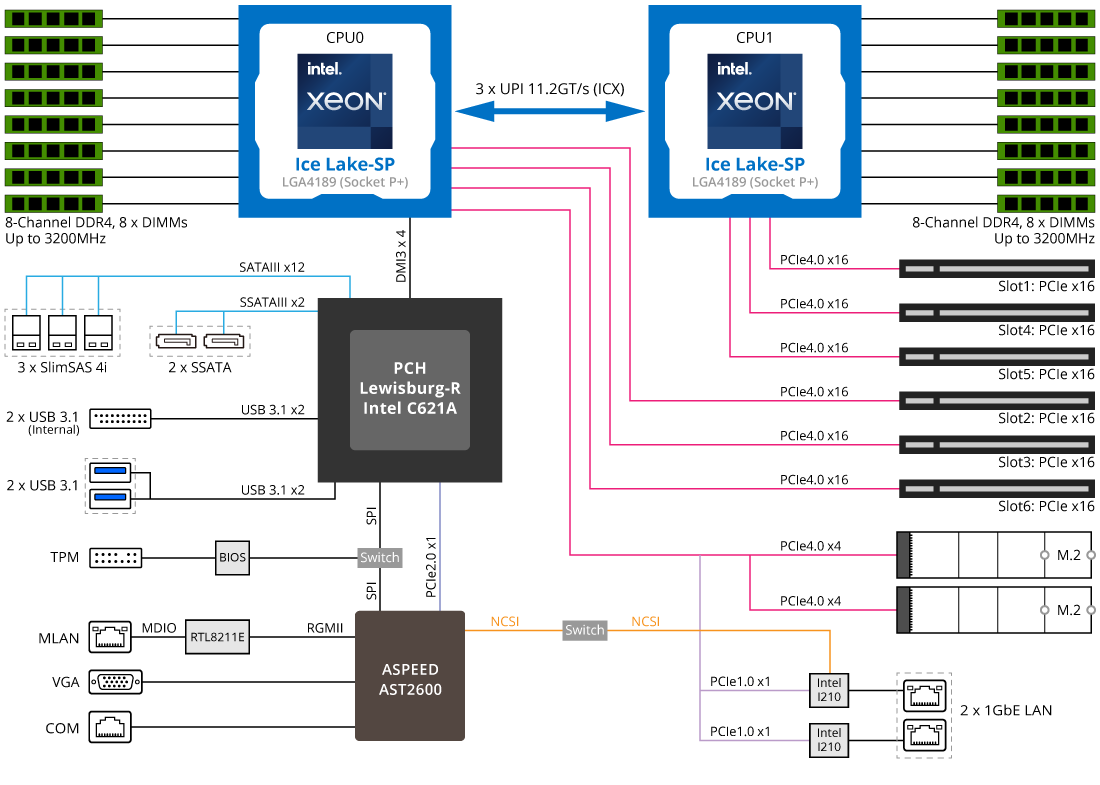

MD72-HB3 Motherboard Block Diagram
Hardware Security
Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
User Friendly
Certified Ready with Software Partners
Being a member of key software alliance partner programs enables GIGABYTE to together rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization. GIGABYTE servers have a compatibility across various ecosystems.
Value-added Management
GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.
GIGABYTE Management Console
For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running,
