Product Description
GIGABYTE R133-C10 AMD Ryzen 7000 Server System - 1U UP 4-Bay SATA
Key features
- AMD Ryzen 7000 series processors
- Single processor, 5nm technology
- Dual Channel ECC/Non-ECC DDR5 Unbuffered DIMM, 4 x DIMMs
- 2 x 1Gb/s LAN ports (Broadcom BCM5720)
- 1 x Dedicated management port
- 4 x 3.5"/2.5" SATA hot-swappable bays
- 1 x M.2 slot with PCIe Gen4 x4 interface
- 1 x FHFL PCIe Gen5 x16 slot
- 1 x FHHL PCIe Gen4 x4 slot
- Dual 550W (240V) 80 PLUS Platinum redundant power supply
A Wealth of Enterprise Potential in a Consumer Platform
AMD Ryzen 7000 series processors deliver value and performance, and they are being used beyond a traditional desktop PC at home or at work. Instead, they are a perfect fit in GIGABYTE servers, and they will be used in workspaces, telecommunications cabinets, and dedicated hosting applications to name a few. These unique GIGABYTE servers take a consumer processor platform and surround it by enterprise rich features. Since it is a server, there is an onboard Baseboard Management Controller (BMC) for remote monitoring and management. Adding to the value proposition, GIGABYTE provides its won software for out-of-band management without an additional license fee.
The Future of Ryzen Processors
AMD Ryzen 7000 Series processors are the first generation of CPUs on the new AMD Socket AM5 platform, and GIGABYTE has motherboards, workstations, and servers to support them. The processors are built with AMD “Zen 4” architecture that includes high-speed DDR5 memory, high-throughput PCIe 5.0 lanes, and hyper-efficient 5nm manufacturing. With the latest technologies and advanced features, the AMD Ryzen 7000 processors deliver a fresh user experience. They can easily handle compute heavy workloads, yet they are diverse enough that users can find an optimal choice whether that be for enterprise or consumer applications where performance, productivity, and efficiency matter.
Zen 4
architecture
Up to 16
cores
5nm
technology
AM5
socket
B650E
chipset
PCIe 5.0
support
DDR5
memory
Select GIGABYTE for the AMD Ryzen 7000 Platform
Performance
Up to 16 cores and 32 threads, the AMD Rzyen CPU can reach its potential in GIGABYTE platforms, including support for a dual-slot GPU.
Cost-effective
Providing many choices of compelling compute servers allows for customers to buy the features that they need and do so at an optimal price.
Ease of Administration
GIGABYTE servers come with GIGABYTE Management Console for IPMI management. Using a web based browser remotely is key to simplifying management.
Continuous Operation
Systems are rigorously designed and tested to ensure downtime will not occur. Customers have come to expect stable performance around the clock.
Energy Efficiency
Our engineers have baked in features to achieve higher efficiency by customizing fan curves and by the choice of PSU -Titanium or Platinum.

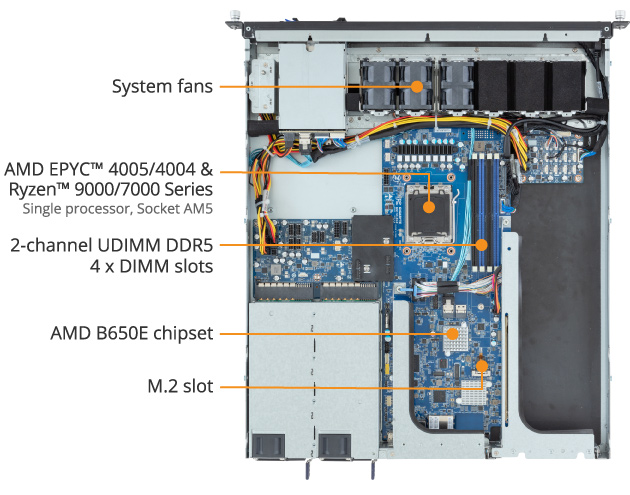

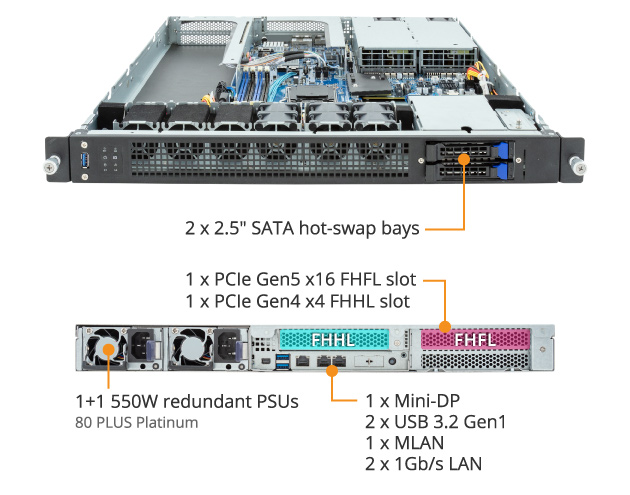

E133-C10-AAA1 Product Overview
Automatic Fan Speed Control
GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.

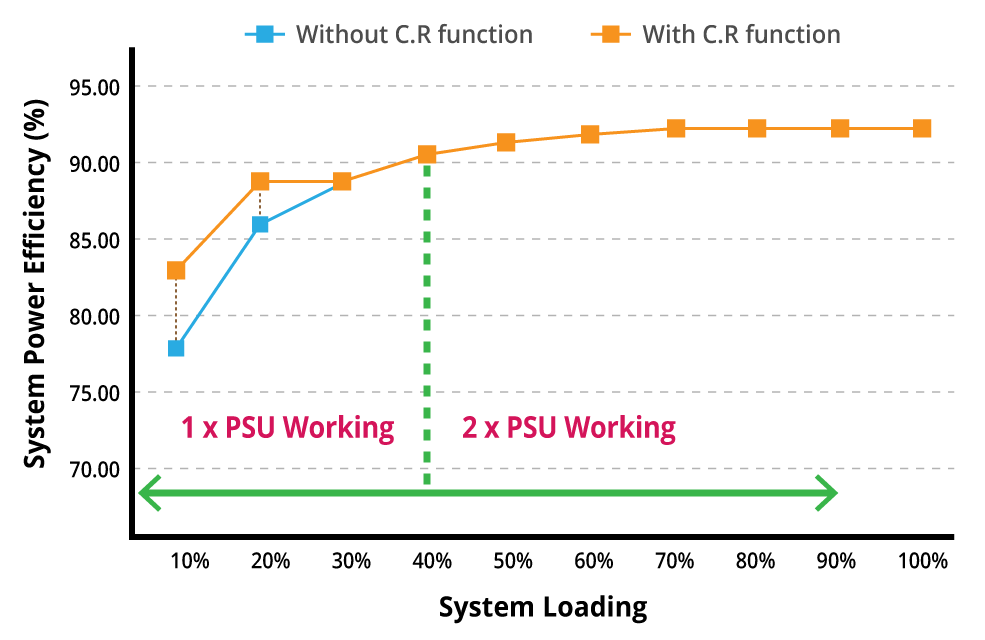

Cold Redundancy
To take advantage of the fact that a PSU will run at greater power efficiency with a higher load, GIGABYTE has introduced a power management feature called Cold Redundancy for servers with N+1 power supplies. When the total system load falls lower than 40%, the system will automatically place one PSU into standby mode, resulting in a 10% improvement in efficiency.
Smart Ride Through (SmaRT)
To prevent server downtime and data loss as a result of loss of AC power, GIGABYTE implements SmaRT in all our server platforms. When such an event occurs, the system will throttle while maintaining availability and reducing power load. Capacitors within the power supply can supply power for 10-20ms, which is enough time to transition to a backup power source for continued operation.
Smart Crises Management and Protection (SCMP)
SCMP is a GIGABYTE patented feature which is deployed in servers with non-fully redundant PSU design. With SCMP, in the event of faulty PSU or overheated system, the system will force the CPU into an ultra-low power mode that reduces the power load, which prevents the system from unexpected shutdown and avoids component damage or data loss.
Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
Tool-less Drive Bays Design
Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.
GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.
GIGABYTE Management Console
For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:
- Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
- Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
- Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom MegaRAID adapters.
GIGABYTE Server Management (GSM)
GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:
- GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
- GSM CLI: A command-line interface for monitoring and managing remotely.
- GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
- GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
- GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
