Grandstream 802.11ac Wave-2 Wi-Fi Access Point - Versatile, Compact Wi-Fi Access Point That Provides 4 Gigabit Ports; Two Ports With PSE - Provide Poe And A Network Connection To Other Devices - GWN7603

Name: Grandstream 802.11ac Wave-2 Wi-Fi Access Point - Versatile, Compact Wi-Fi Access Point That Provides 4 Gigabit Ports; Two Ports With PSE - Provide Poe And A Network Connection To Other Devices - GWN7603
Brand: Grandstream
SKU: HS-GRA-GWN7603
Availability: OutOfStock

Grandstream

Request A Quote

Write a Review

SKU:: HS-GRA-GWN7603
Condition:: New
Availability:: Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
Client Devices:: 100+
2.4G Throughput:: 300Mbps (2x2:2 MU-MIMO); 400 Mbps with 256-QAM
5G Throughput:: 867Mbps (2x2:2 MU-MIMO)
6G Throughput:: N/A
Range:: Up to 100 Meters
Network Interfaces:: 1 x 10/100/1000M uplink Ethernet port with POE/POE+ 2 x 10/100/1000M Ethernet port with PSE 1 x 10/100/1000M Ethernet port
PoE/PoE+:: Supports PoE 802.3af/ 802.3at; PSE max output per port: 12W;Max Consumption: 6.5W (Excluding PoE Output)
Wi-Fi Standards:: IEEE 802.11a/b/g/n/ac (Wave-2)
SSIDs:: 16 SSIDs total, 8 per radio (2.4Ghz and 5Ghz)
Antennas:: 2 dual band internal antennas
Wi-Fi and Security Systems:: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
Dimensions:: 135mm x 115mm x 30mm
Mounting:: Indoor wall mount
Manufacturer Part Number:: GWN7603
Note:: Images may not be exact, please check specifications.
Required A Volume Purchase:: Contact us for a special pricing for Volume orders. sales@hssl.us

Overview
Other Details

Product Description

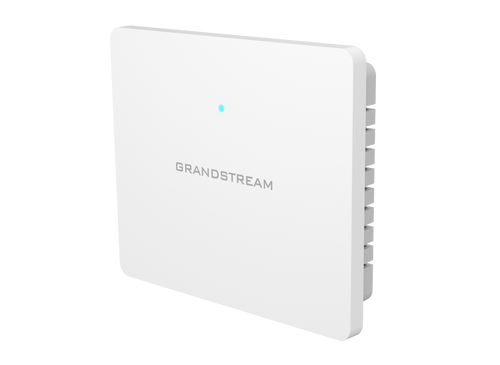

The GWN7603 is a versatile, compact Wi-Fi access point that provides 4 Gigabit ports; two ports with PSE that can provide PoE and a network connection to other devices and one uplink port that can receive PoE to power the access point.

1.27Gbps aggregate wireless throughput, 1x Gigabit and 3x Gigabit wireline speed
Up to 100 meters coverage range
Self power adaptation upon auto detection of PoE/PoE+ and PSE
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Support up to 100+ Wi-Fi client devices
Advanced QoS to ensure real-time performance of low-latency applications

Self-Guided Networking Solution Training

Grandstream Networks self-training is an effective pre-recorded video training that offers huge flexibility and provides all the information and explanations needed to acquire the necessary knowledge about Grandstream's solutions before taking the certification exam.

This course covers Grandstream's Networking Solution GCS level (Grandstream Certified Specialist). The course is divided into 4 chapters and it has been recorded for you to make sure that you understand the technical specifications, features, and services of our GWN series.

DATASHEET

Other Details

(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.

Product Videos

Custom Field

Client Devices 100+

2.4G Throughput 300Mbps (2x2:2 MU-MIMO); 400 Mbps with 256-QAM

5G Throughput 867Mbps (2x2:2 MU-MIMO)

6G Throughput N/A

Range Up to 100 Meters

Network Interfaces 1 x 10/100/1000M uplink Ethernet port with POE/POE+ 2 x 10/100/1000M Ethernet port with PSE 1 x 10/100/1000M Ethernet port

PoE/PoE+ Supports PoE 802.3af/ 802.3at; PSE max output per port: 12W;Max Consumption: 6.5W (Excluding PoE Output)

Wi-Fi Standards IEEE 802.11a/b/g/n/ac (Wave-2)

SSIDs 16 SSIDs total, 8 per radio (2.4Ghz and 5Ghz)

Antennas 2 dual band internal antennas

Wi-Fi and Security Systems WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device

Dimensions 135mm x 115mm x 30mm

Mounting Indoor wall mount

Manufacturer Part Number GWN7603

Note Images may not be exact, please check specifications.

Required A Volume Purchase Contact us for a special pricing for Volume orders. sales@hssl.us
