Product Description

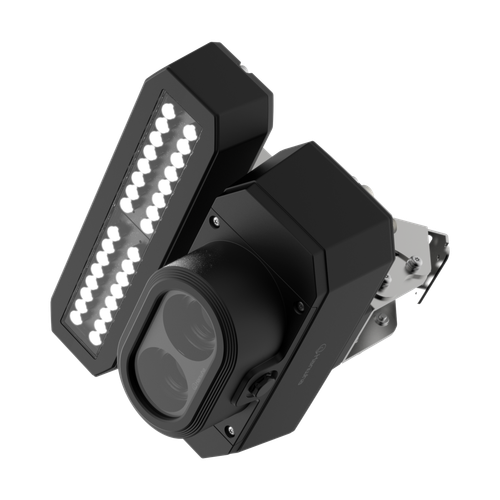

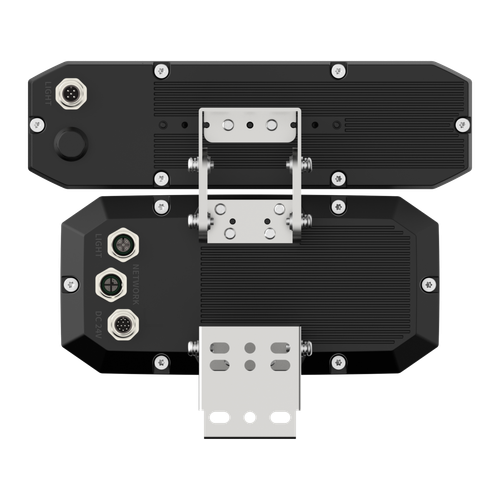

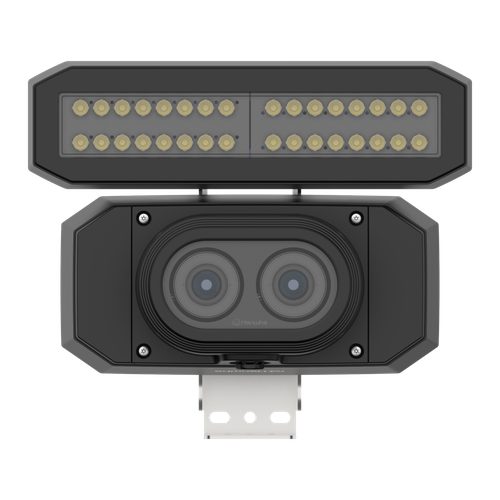

Hanwha Dual Sensor BCR Camera - TNS-9050IBC
Barcode reading cameras, fixed mount
Accurate barcode recognition, even on high-speed conveyors.
Logistics automation offers greater reliability and reduced mis-delivery as well as increased parcel capacity and optimized resources. Combining barcode data and videos provides efficient parcel tracking and management.
Integration with High-resolution video
Combining video surveillance with barcode-based logistics systems enables users to track the entire logistics process, preventing parcel incidents such as loss, damage, etc.
- Scan barcodes from a single camera and record high-resolution video at the same time.
- With high-resolution videos and precise time synchronization, verify the status and journey of parcels.
- Manage the movement history and footage of parcels via Vision Logistics Tracking Software
Key Features
- Dual Global Sensor for Barcode Reading and Video Monitoring
- MONO 4K 1” + COLOR 4K 1” - 25mm Fixed (Wide FoV)
- AI barcode location search
- Track barcodes on high speed conveyor belt moving at 2m/s(6.5ft/s) - 1D Code is available (Code128 / Code93/ Codabar / Interleaved 2 of 5 / UPC / EAN)
- Reinforced durability
- IP66, IP67, IK10, NEMA TS-2 2.2.9, M12 8pin Ethernet connect
- Humidity control with AIR vent, EN 60068-2-6(vibration resistance)
- EN 60068-2-27 (shock resistance), Operating temperature -40°C ~ + 55°C
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
MPN TNS-9050IBC
Imaging Device Global Shutter Mono 1" CMOS | Global Shutter Color 1" CMOS
Resolution Mono: Max 4096x2160 | Color: Max 4096x2160
Max. Framerate Mono: Max 20fps | Color: Max 20fps
Focal Length (Zoom Ratio) 25mm
Max. Aperture Ratio Mono: F2.8 ~ F16.0 | Color: F2.8 ~ F16.0
Focus Control Manual
Lens Type Manual
Mount Type C Mount
Camera Title Displayed up to 85 characters
Video Rotation Flip, Mirror
Memory 4GB RAM, 512MB Flash
Color / Material Black / Aluminum
Note Images may not be exact, please check specifications.
