Product Description

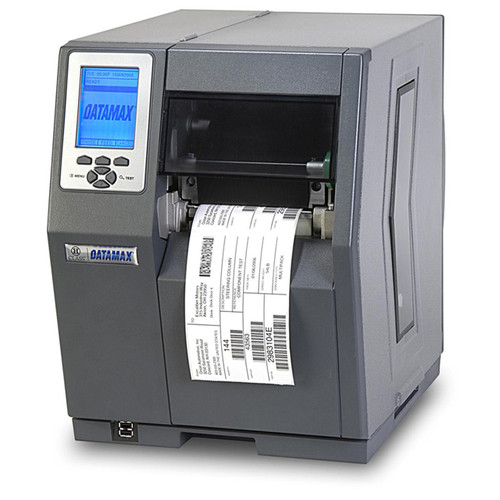

Datamax-O'Neil H-Class H-6212X Desktop Direct Thermal/Thermal Transfer Printer - Monochrome - Label Print - Ethernet - USB - Serial - Parallel - LCD Display Screen - Real Time Clock - Rewinder - Peel Facility - 6.61" Print Width - 12 in/s Mono - 203 dpi - 6.70" Label Width 12IPS6.6IN PEEL/PRESENT/REWIND
6" H-Class "X"The H-Class 6-inch extra capacity ("X") series offers a larger internal rewinder and expanded front panel display than the standard 6-inch models. The LCD graphical backlit display is nine times larger for easy to read configuration and set-up. The 6X series is also 3.4 inches taller to accommodate the full roll internal label rewinder.
Warranty
| Limited Warranty | 1 Year |
Display & Graphics
| Display Screen | Yes |
| Display Screen Type | LCD |
Technical Information
| Application/Usage | Desktop |
| Barcode Symbology Supported | Codabar |
| Code 128 | |
| Code 16K | |
| Code 3 of 9 | |
| Code 93 | |
| Data Matrix | |
| EAN/JAN-13 | |
| EAN/JAN-8 | |
| FIM | |
| GS1 DataBar | |
| HIBC | |
| HIBCC | |
| Industrial 2 of 5 | |
| Interleaved 2 of 5 | |
| Maxi Code | |
| Micro PDF-417 | |
| PDF-417 | |
| Planet Code | |
| Plessey | |
| POSTNET | |
| QR Code | |
| Standard 2 of 5 | |
| Telepen | |
| TLC 39 | |
| UCC/EAN 128 | |
| UPC 2 and 5 Digit Addendums | |
| UPC-A | |
| UPC-E | |
| USD-8 | |
| EAN-13 | |
| EAN-8 | |
| USPS-4 State | |
| Codablock | |
| Code 11 | |
| Aztec Code | |
| Maximum Print Width | 6.61" |
| Recommended Use | Label Print |
| Features | Mirror Printing |
| Media Supply Hub | |
| Maximum Print Resolution | 203 dpi |
| Peel Facility | Yes |
| Print Color Capability | Monochrome |
| Rewinder | Yes |
| Real Time Clock | Yes |
Miscellaneous
| Package Contents |
|
| Platform Supported | PC |
Network & Communication
| Ethernet | Yes |
| Ethernet Technology | Fast Ethernet |
Fonts & Emulation
| Language Emulation | PLI |
| PLZ | |
| PLB |
Interfaces/Ports
| USB | Yes |
| Serial Port | Yes |
| Parallel Port | Yes |
Power Description
| Input Voltage | 220 V AC |
| 110 V AC | |
| Power Source | AC Supply |
Physical Characteristics
| Weight (Approximate) | 53 lb |
| Height | 16.4" |
| Width | 15" |
| Depth | 19.3" |
Memory
| Flash Memory | 8 MB |
| Standard Memory | 16 MB |
| Memory Technology | SDRAM |
| Memory Card Supported | SD |
| Memory Card Slot | Yes |
General Information
| Product Type | Direct Thermal/Thermal Transfer Printer |
| Manufacturer Part Number | C62-00-48E00004 |
| Manufacturer Website Address | http://www.honeywell.com |
| Manufacturer | Honeywell International, Inc |
| Product Model | H-6212X |
| Product Name | H-Class H-6212X Label Printer |
| Product Line | H-Class |
| Brand Name | Datamax-O'Neil |
Media Types & Handling
| Media Thickness | 10 mil |
| Maximum Roll Diameter | 8" |
| Media Type | Die-cut Label |
| Continuous Tag | |
| Ticket Stock | |
| Continuous Form | |
| Black Mark | |
| Fanfold | |
| Perforated Label | |
| Roll Fed | |
| Tag Stock | |
| Continuous Label | |
| Media Sensor | Label Taken Sensor |
| Reflective Media Sensor | |
| Transmissive Media Sensor | |
| Label Core Size | 3" |
| Ribbon Core Size | 1" |
| Maximum Label Width | 6.70" |
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. to receive a custom quote on your specific configuration or part/service number not find on our online catalogue. Financing Options Available for all USA customersProduct Videos
Custom Field
NOTE Images may not be exact
Required A Volume Purchase Contact us for a special pricing for volume orders. sales@hssl.us
