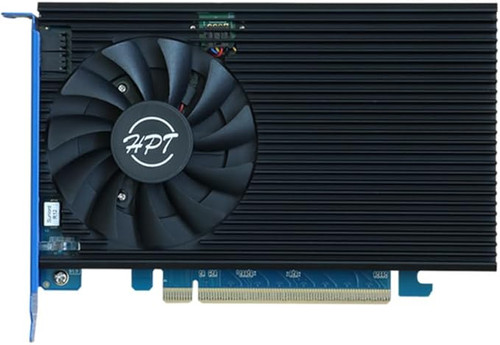

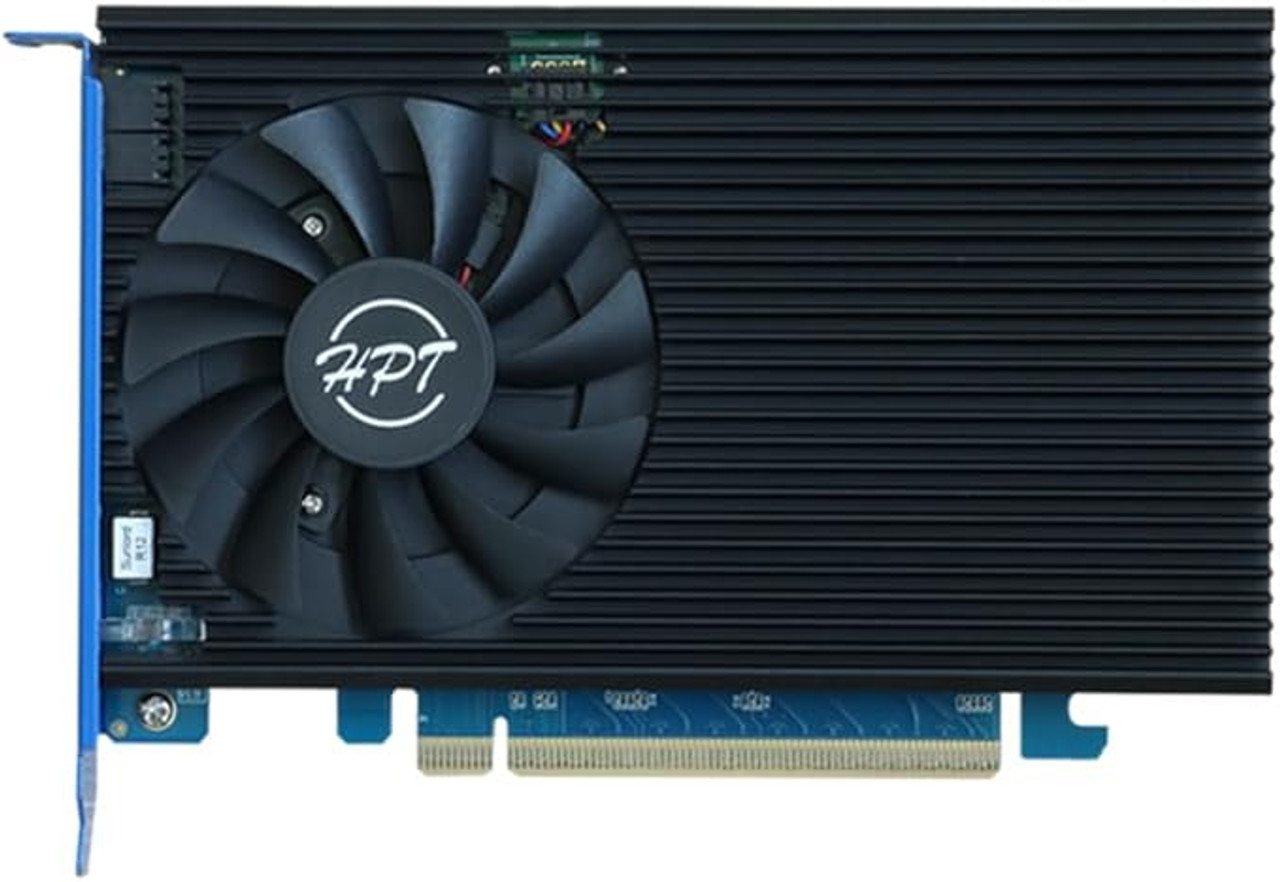

HighPoint Rocket 1604A PCIe Gen5 x16 to 4x M.2 NVMe Switch AIC - R1604A

HighPoint’s Rocket 1604A 4-Channel NVMe Switch AIC is an ultra-compact high-speed 4-port M.2 NVMe storage connectivity solution capable of delivering up to 56GB/s of transfer bandwidth for industry-standard x86 workstation and server platforms via a single PCIe x16 slot. The AIC can directly host up to four M.2 SSDs, removing the need for internal drive bays and cabling accessories. The half-length, single-width form factor is ideal for space-constrained computing environments such as industrial workstations, edge platforms and rackmount servers.

Key Features:

4 Independent M.2 Ports
Wide-range of M.2 Form factor Support (2242, 2260, 2280)
Leverages Broadcom’s 48-lane PCIe Gen5 PEX89048 PCIe Switch IC:

• Ensures the fastest, densest downstream connectivity possible

• Optimizes signal integrity & stability, and minimizes latency

Designed to maximize performance & connectivity density per PCIe 5.0 x16 slot: Up to 56GB/s and 12 Million IOPs using just four NVMe SSDs!

Customizable Firmware Solutions for Gen5 AICs
Natively supported by Mainstream Operating systems; delivers driverless deployment experience
Robust, flexible & scalable; Tailor speed & capacity for the deployment & infrastructure requirements of each Application/Workflow
Supports x86 Intel/AMD & ARM Platforms
Firmware-based Diagnotics Capability

Datasheet

Specifications

Product Model	Rocket 1604A
Hardware Features
Bus Interface	PCIe 5.0 x16
Number of Channel / Port	4 x NVMe Ports (Dedicated PCIe 5.0 x4 per port)
Port Type	M.2
Data Transfer Rate	64GB/s
Number of devices	4
SSD Form Factor	M.2 (2242, 2260, 2280)
Synthetic Hierarchy	Yes
Diagnostic LED Support	Disk Active, Disk Fail, Disk Present
External Power Connector	N/A
Toolless SSD Installation	Yes
FRU Support	Yes Store VPD Data
Host CPU Architect Support
CPU Architect Support	X86 / ARM
Mechanical Features
Form Factor	Full-Height, Half-Length
Card Dimensions	167mm x 110mm
Width	Single Width
Card Weight	0.80 lbs.
PCIe Bracket	Full-Height ventilated bracket
Heatsink	1. One Big heatsink to cover all the board area 2. One 8010 Fan inside the Heatsink 3. the Adapter with Heatsink installed will not violate the PCIe Spec
Cooling System	Heatsink with a 8010 Fan inside
Supported Systems
OS	All the Operating Systems with Native NVMe Driver
Software Secure Boot	Yes
NVMe RAID Management
Management Suites	MPT Utility
Operating Environment
Working Temp	+5°C ~ + 55°C
Storage Temp	-20°C ~ +80°C
Operating Voltage	PCIe: 12V, 3.3V
MTBF	920,585 Hours
Kit Contents
Kit Contents	Rocket 1604A Switch AIC
	QIG
	Thermal pad: 70900.75mm, K=8, Gray；V100；x1 Thermal pad: 70901.5mm, K=3, Blue；V100；x1 Thermal pad: 70901mm, K=8, Gray；V100; x1
	4 x additional M.2 Rubber
