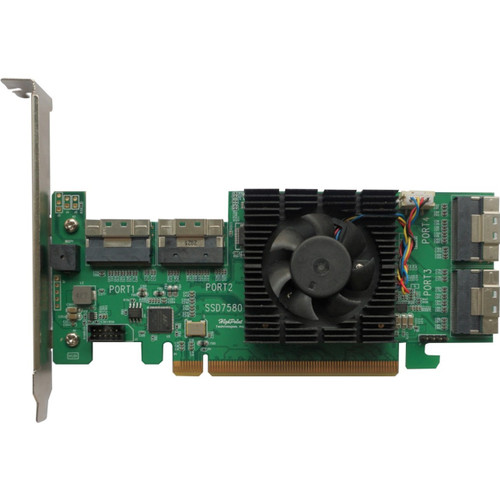

HighPoint SSD7580A NVMe Controller - SSD7580A

HighPoint SSD7580A NVMe Controller - PCI Express 4.0 x16 - Plug-in Card - RAID Supported - 0, 1, 1+0 RAID Level - PC, Linux X16 8-PORT U.2 NVME RAID CONTROLLER

Massive NVMe Storage & Performance: Over 120TB @ 28,000MB/s!

SSD7580 Series U.2 NVMe RAID controllers are built for professional media & industrial applications that require truly uncompromised, blisteringly fast transfer speeds and massive-storage capability. A single SSD7580 series controller is capable of supporting over 120TB of storage capacity, while delivering real-world transfer performance exceeding 28,000MB/s!

Extensive support is available for all major operating systems including Linux Distributions, macOS and Windows platforms .In addition, the SSD7580B variant offers true Hot-plug capability for U.2 media; administrators can now upgrade ore replace NVMe SSD's on the fly, without powering down the system.

Truly Independent Cutting-Edge PCIe Gen 4 x16 NVMe RAID Storage Performance

The SSD7580 series are fully independent NVMe RAID controllers and are not tied to a specific motherboard or chipset, require no specialized PCIe related settings such as Bifurcation or VROC, and are fully backwards compatible with both AMD and Intel-based PCIe 3.0 host platforms.

SSD7580 Series controllers are powered by our next-gen NVMe RAID architecture, which incorporates Broadcom's Gen4 NVMe Switch chipset to deliver uncompromised PCIe 4.0 x16 RAID and connectivity performance.

In addition, the SSD7580B features Surprise Add and Remove technology which enables true hot-swap capability for industry standard U.2 NVMe SSD's. Customers can now add or remove drives using the management interface without having to power down the system or remove the NVMe host device.

SSD7580 series NVMe RAID controllers are ideal bandwidth upgrades for Gen3 U.2 SSD's and applications that require transfer speeds between 15,000 and 24,000 MB/s. Gen3 SSD's offer as much as 25% savings over equivalent Gen 4 models, and superior PCIe 4.0 bandwidth ensures maximum performance for both RAID and non-RAID storage configurations.

Comprehensive NVMe RAID Support

HighPoint 7500 Series NVMe RAID controllers will automatically recognize new NVMe SSDS's as single drives- no configuration necessary. In addition, our comprehensive NVMe RAID stack enables each controller to support multiple RAID RAID 0, 1 or 1/0 arrays, or mixed configurations of arrays

RAID 1/0 (Security & Speed) - Unique to HighPoint NVMe RAID solutions, RAID 1/0 (also known as RAID 10) requires a minimum of 4 NVMe SSD's - it will mirror the data of one stripe array to a second, hidden stripe array for security. RAID 1/0 is capable of delivering read performance on par with RAID 0, and is superior to RAID 5 for NVMe applications. Unlike RAID 5, RAID 1/0 doesn't necessitate additional parity related write operations, which reduce the TBW life span of NVMe SSD's.

RAID 0 (Speed) - Also known as a "stripe" array, this mode delivers Maximum Performance, and requires a minimum of 2 NVMe SSD's.

RAID 1 (Security) -This mode creates a hidden duplicate of the target SSD, and requires 2 NVMe SSD's to configure. RAID 1 is ideal for bootable volumes.
