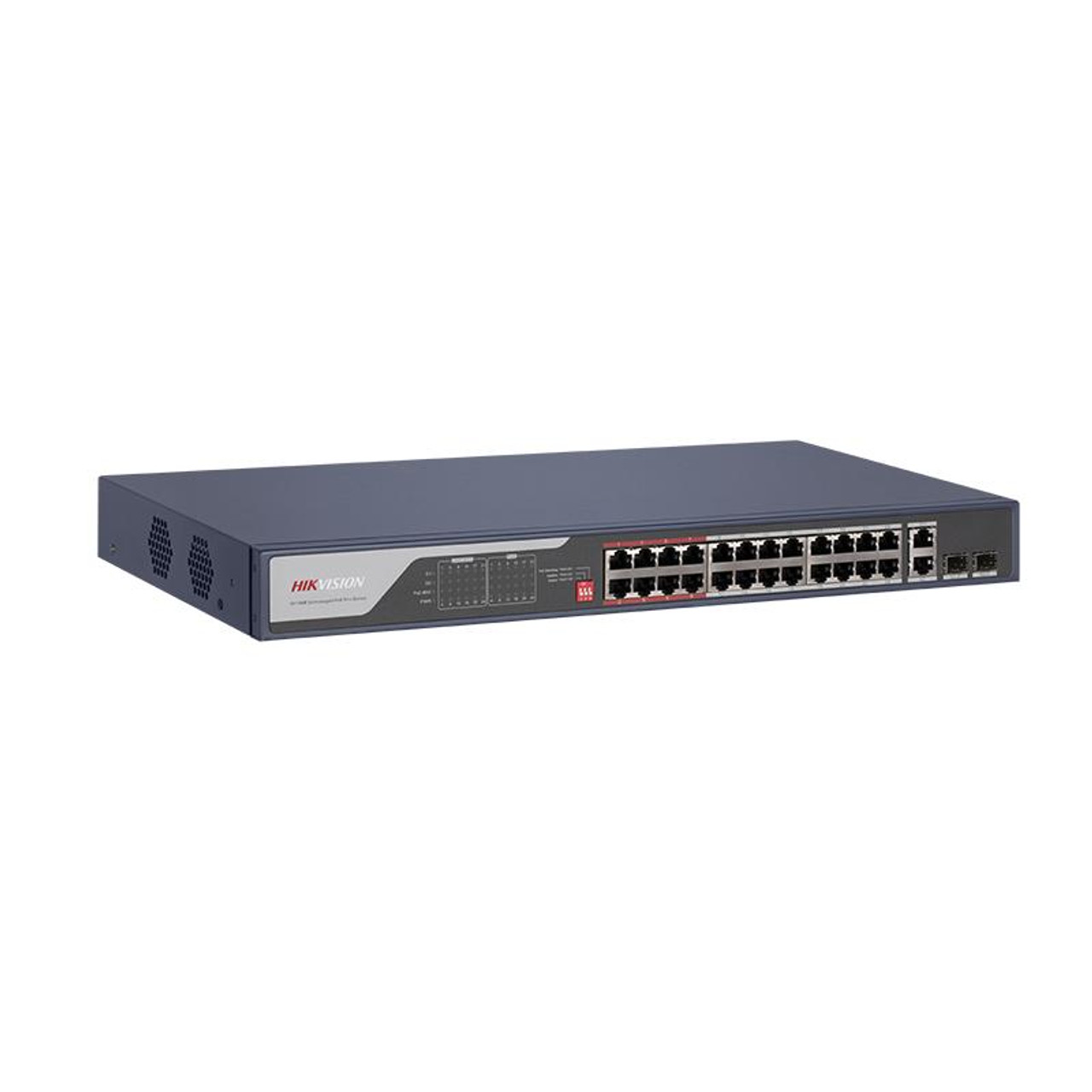

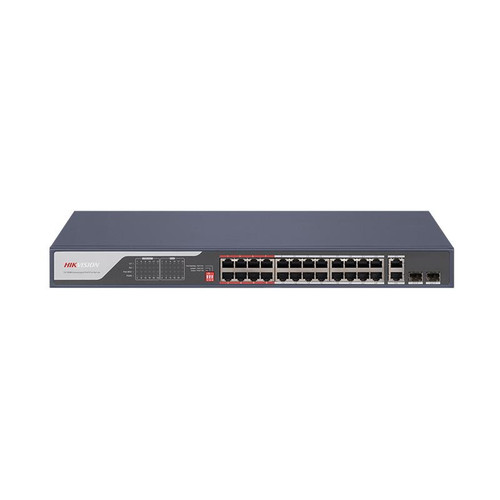

Hikvision 24 Port Fast Ethernet Unmanaged POE Switch -DS-3E0326P-E(C)

• Intelligent PoE management.
• Up to 300 m long range PoE transmission.
• Port isolation to improve network security.
• 6 KV surge protection to improve reliability in harsh environment.
• PoE watchdog to auto-detect and restart cameras that do not respond.

Specification

General

• Shell: Metal material
• Net Weight: 2.785 kg (6.14 lb)
• Gross Weight: 3.54 kg (7.80 lb)
• Dimensions (W × H × D): 440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')
• Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity: 5% to 95% (no condensation)
• Relative Humidity: 5% to 95% (no condensation)
• Power Supply: 100~240 VAC, 50/60 Hz, Max. 6.5 A
• Max. Power Consumption: 400 W
• Power Consumption in Idle: 30 W
• Installation Mode: Rack (equipped with mounting ears)
• Surge Protection: 6 KV

Network Parameters

• Ports: 24 × 10/100 Mbps PoE port,2 × Gigabit combo
• MAC Address Table: 16 K
• Switching Capacity: 8.80 Gbps
• Packet Forwarding Rate: 6.55 Mpps
• Internal Cache: 4 Mbits

PoE Power Supply

• PoE Standard: IEEE 802.3af;IEEE 802.3at
• PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE Port: PoE: Ports 1 to 24
• Max. Port Power: 30 W
• PoE Power Budget: 370 W
