Product Description

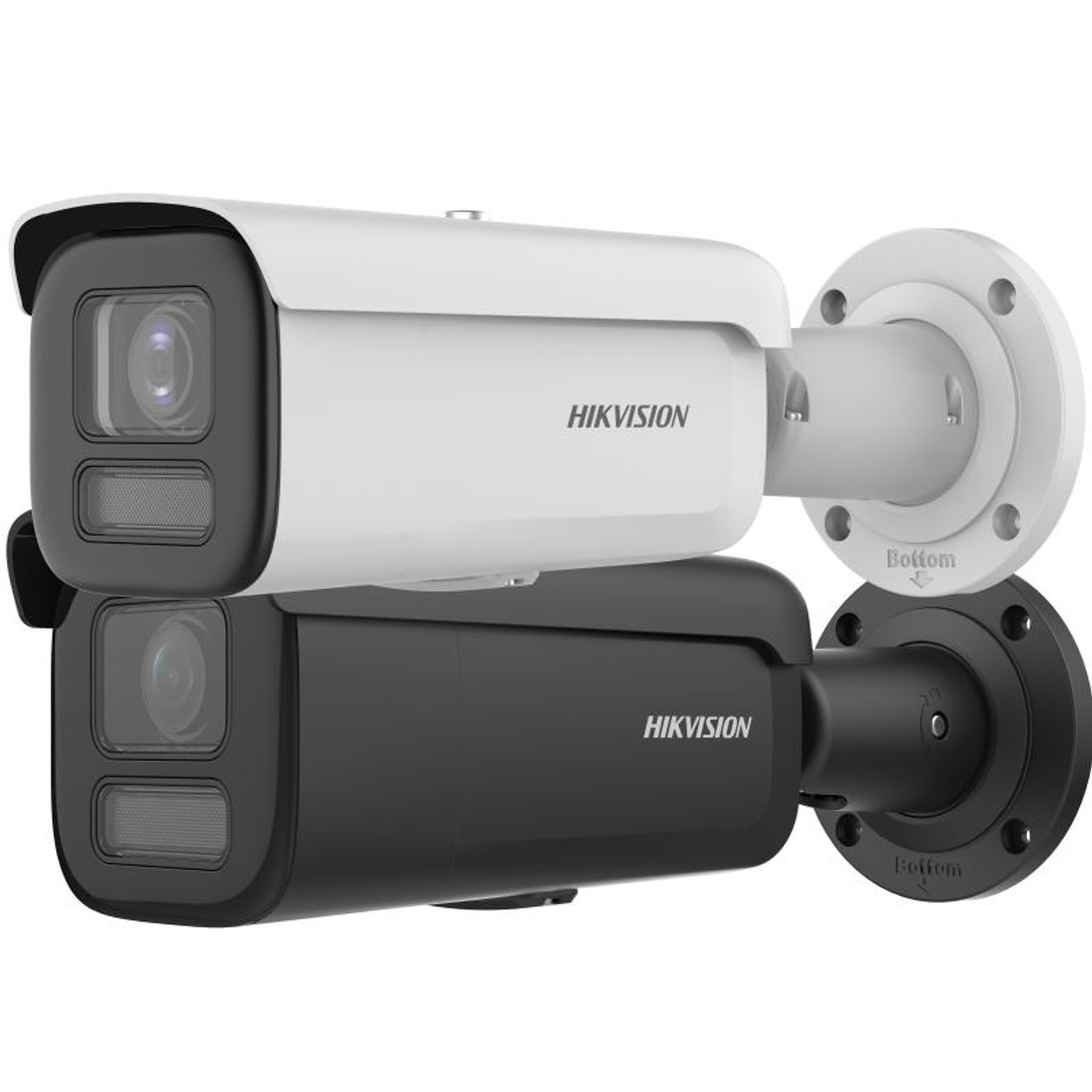

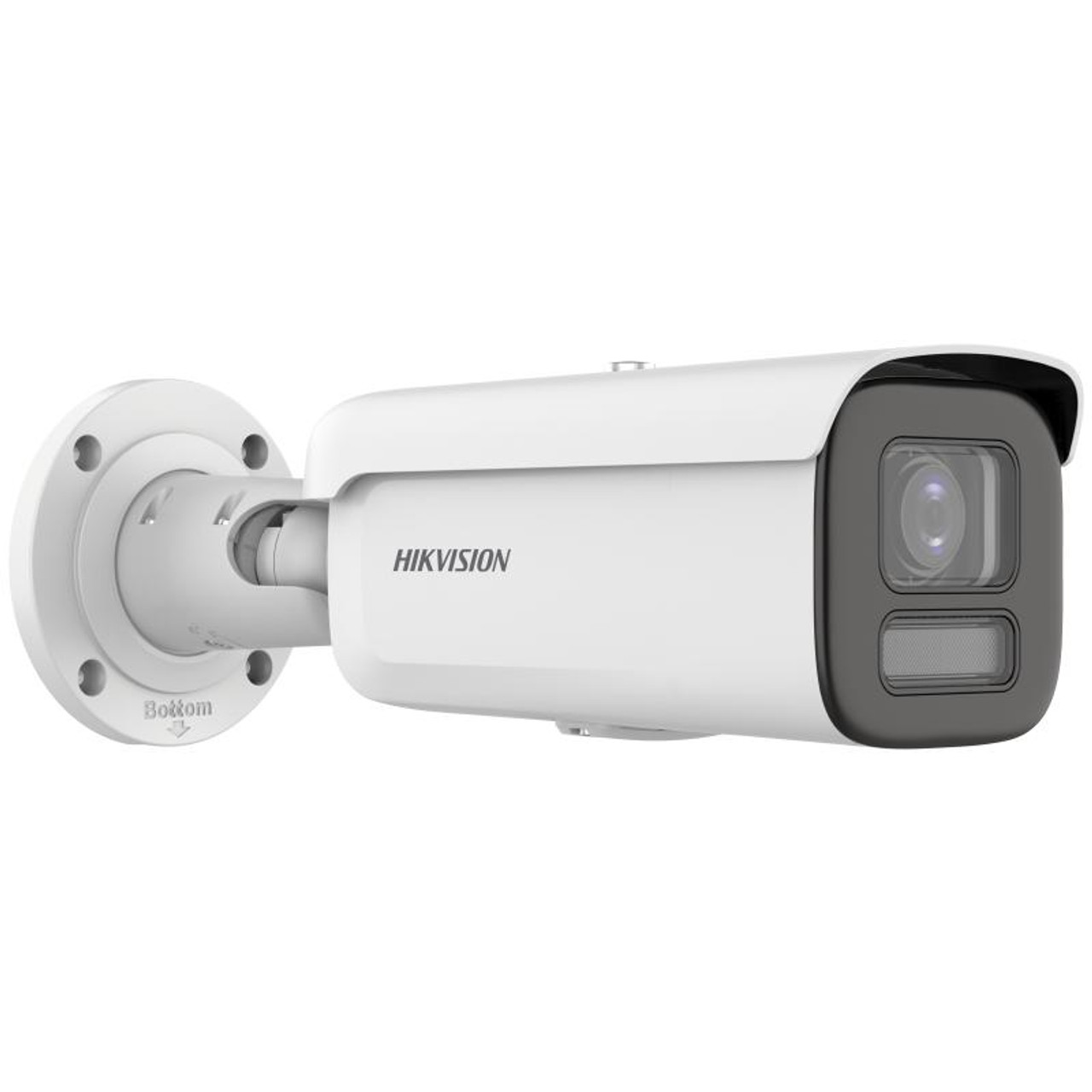

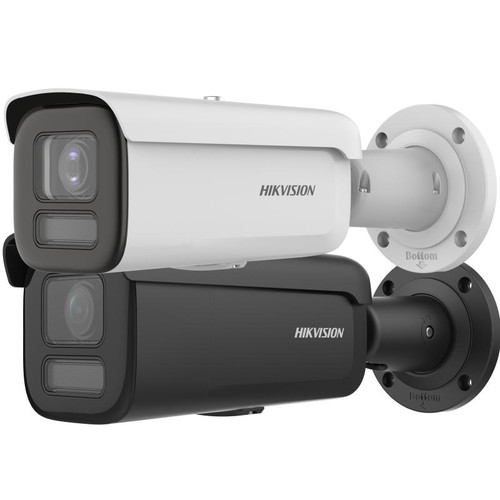

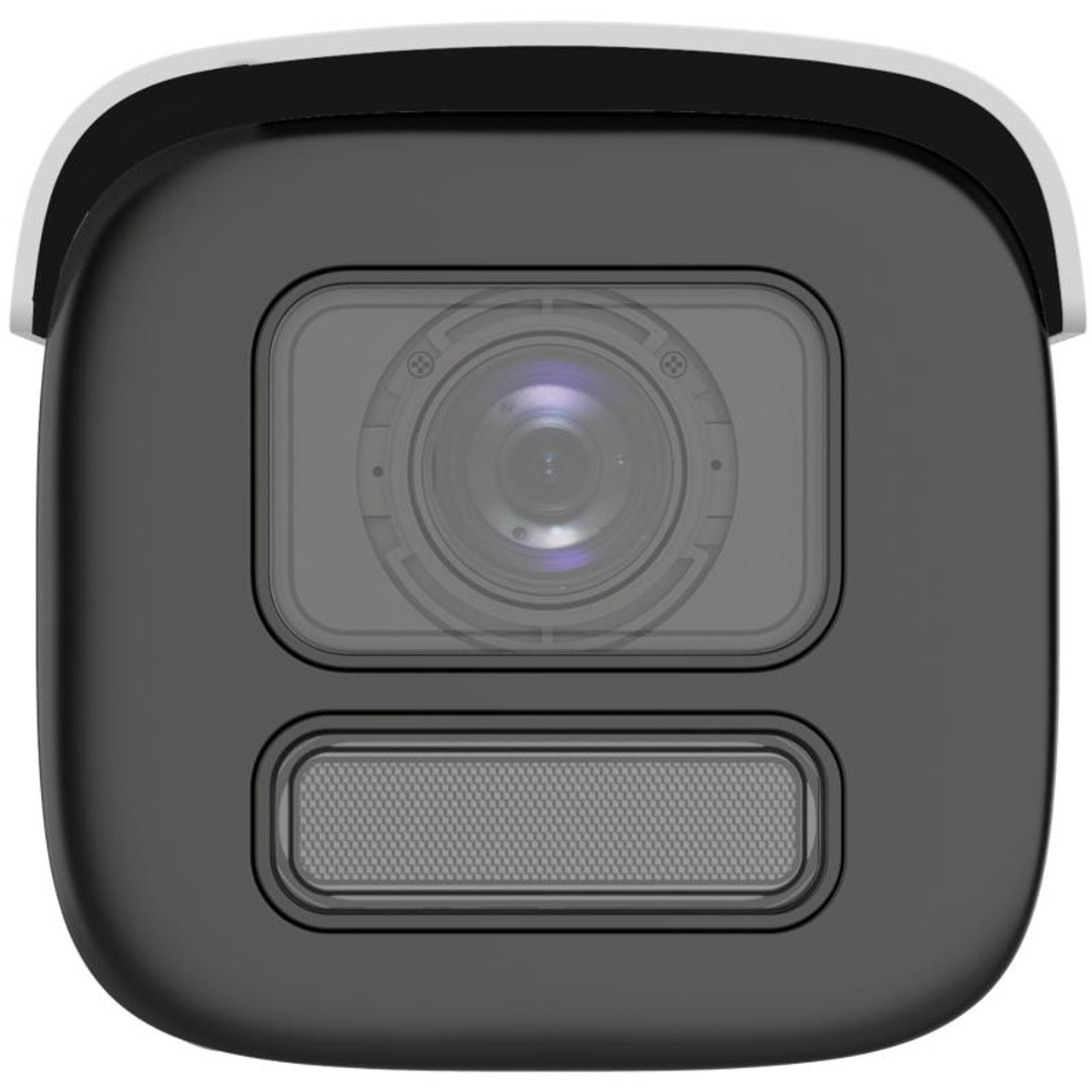

Hikvision 4 MP ColorVu Motorized Varifocal Bullet Network Camera

• High quality imaging with 4 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• 24/7 colourful imaging
• Clear imaging against strong backlight due to 130 dB WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Efficient H.265+ compression technology
• Water and dust resistant (IP67) and vandal resistant (IK10)

Specification

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Colour: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
• Day & Night: 24/7 colour imaging

Lens

• Lens Type:  Varifocal lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV2.8 to 12 mm, horizontal FOV 105.4° to 56.4°, vertical FOV 53.9° to 31.6°, diagonal FOV 131.8° to 65.1°
• Lens Mount: Integrated
• Focus: Auto, Semi-auto, Manual
• Iris Type:  DC iris
• Aperture: F1.0
• Depth of Field1.9 m to ∞

DORI

• DORID: 66.8 m to 110.4 m, O: 26.5 m to 43.8 m, R: 13.4 m to 22.1 m, I: 6.7 m to 11 m

Illuminator

• Supplement Light Type:  White Light
• Supplement Light Range:  Up to 60 m
• Smart Supplement Light:  Yes

General

• Power:

12 VDC ± 25%, 1.21 A, max. 14.5 W,Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: 802.3at, Class 4, 42.5 V to 57V, 0.43 A to 0.32 A, max. 18 W

• Dimension: 298 mm × 97.9 mm × 95.7 mm (11.7" × 3.9" × 3.8")
• Package Dimension: 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
• Weight: 1465 g (3.2 lb.)
• With Package Weight: 2097 g (4.6 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language:

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General Function: Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter
