Product Description

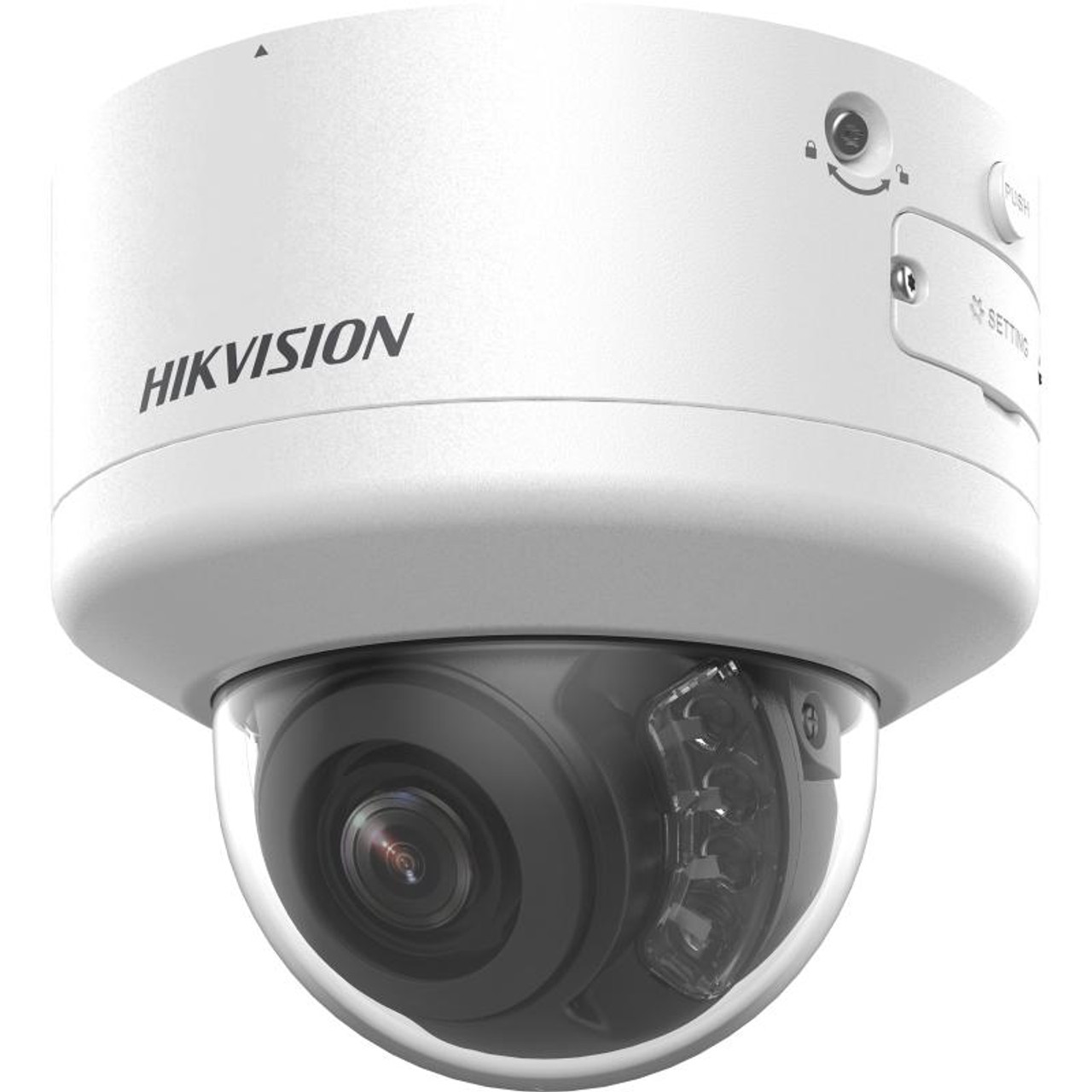

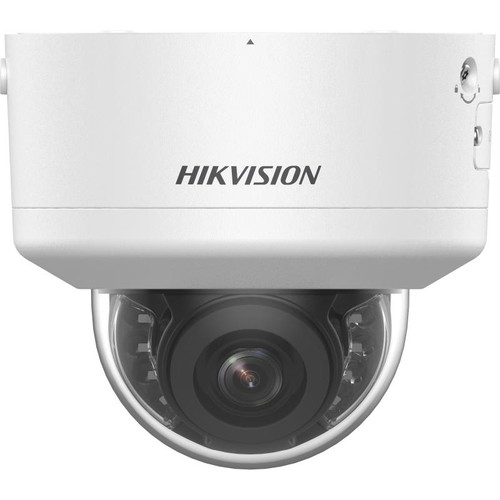

 Hikvision 4 MP Smart Hybrid Light with ColorVu Motorized PTRZ Varifocal Dome Network Camera

• Motorized Pan, Tilt, Rotate, Zoom for easy installation and monitoring
• 24/7 colorful imaging via ColorVu technology
• IR light & White light & Smart Hybrid Light modes
• Clear imaging against strong back light due to 130 dB WDR technology
• Human and vehicle classification based on deep learning
• Water and dust resistant (IP66) and vandal resistant (IK10)
• Audio and alarm interface available
•

Specification

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.0028 Lux @ (F1.2, AGC ON),0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:

Remote adjustment (Max. 1,000 cycles)

Pan: 0° to 350°,tilt: 0° to 85°,rotate: 0° to 350°

Lens

• Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3°to 23.6°, diagonal FOV 141.3°to 48.1°
• Lens Mount: Integrated
• Iris Type: Fixed
• Aperture: Max. F1.2
• Depth of Field: 1 m to ∞

DORI

• DORI:

Wide: D: 61.5 m, O: 24.4 m, R:12.3 m, I: 6.2 m

Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I:15.1 m

Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range:  Up to 40 m
• Smart Supplement Light:  Yes
• IR Wavelength: 850 nm

General

• Power:

12 VDC ± 25%, 1.05 A, max. 12.6 W, reverse polarity protection, two-core terminal block,

PoE: IEEE 802.3at, Class 4, max. 15 W

• Material: Metal
• Dimension: Ø155 mm × 140.4 mm (Ø6.10" × 5.53")
• Package Dimension: 206 mm × 206 mm × 230 mm (8.1" × 8.1" × 9.1")
• Weight: 820 g (1.8 lb.)
• With Package Weight: 1200 g (2.6 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-banding, flash log
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
