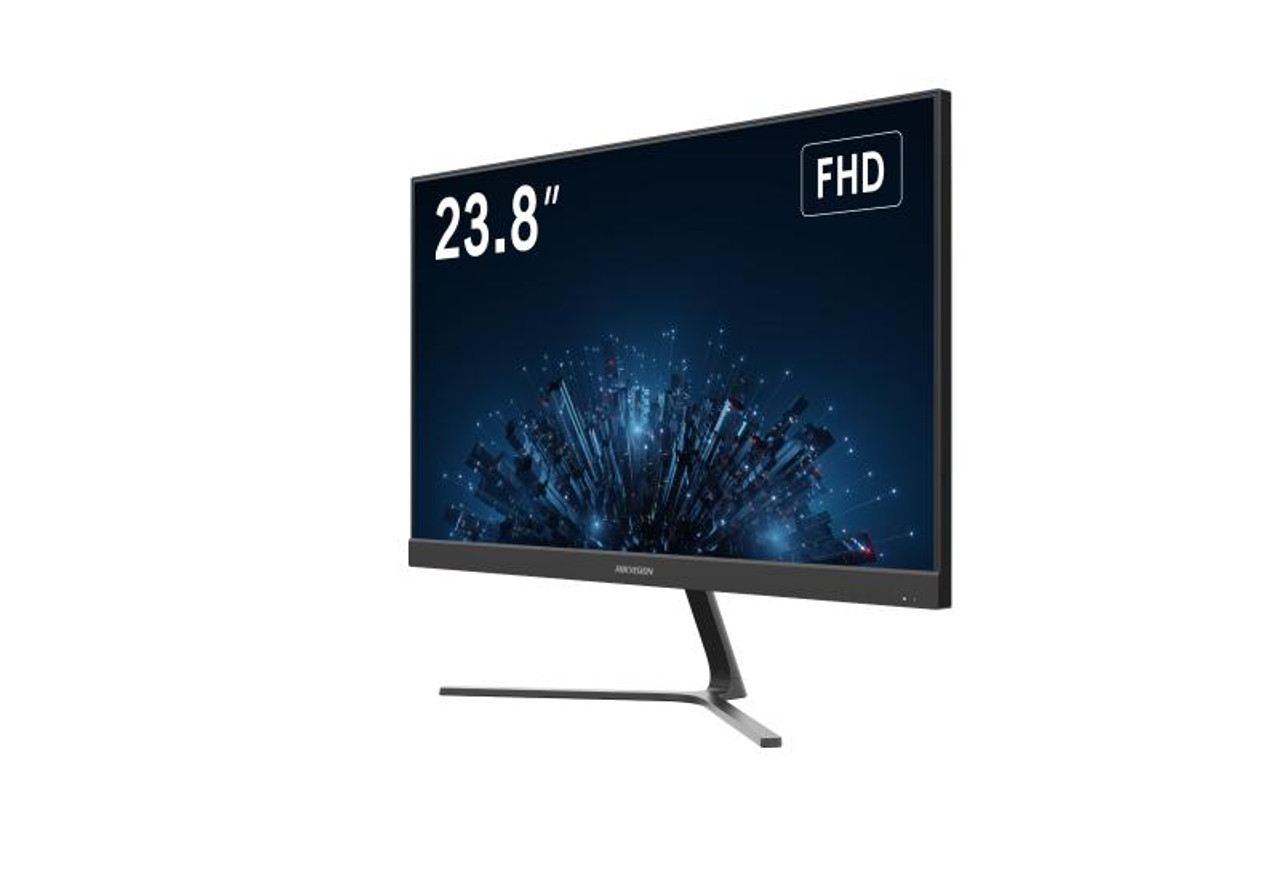

Hikvision DS-D5024F2-6P2 23.8 inch FHD 100Hz IPS Monitor

Product Description

• IPS technology, 178° ultra-wide view screen.
• 8 bit LVDS FHD (1920 × 1080) display.
• 100Hz refresh rate, more fluid and life-like video.
• Ultra-thin device body with ultra-thin border for 3 sides.
• Low blue light design for eye care.
• Dual interface of HDMI and VGA.

Specifications

Display

• Screen Size: 23.8 inch
• Active Display Area: 527.04 mm (H) × 296.46 mm (V)
• Resolution: 1920 × 1080
• Backlight: E-LED
• Pixel Pitch: 0.2745 mm (H) × 0.2745 mm (V)
• Brightness: 250 cd/m²
• Viewing Angle: 178° (H) / 178° (V)
• Color Depth: 6 bit + FRC ,16.7 M
• Contrast Ratio: 4000 : 1
• Response Time: 14 ms（typ）
• Refresh Rate: 100 Hz
• Haze: Haze 25% ，3 H
• Reliability: 7 × 16H
• Color Gamut: 72% NTSC

Interface

• Video & Audio Input: HDMI 1.4 × 1, VGA x 1
• Video & Audio Output: Audio Out × 1
• Data Transmission Interface: None
• Control Interface: None

Power

• Power Supply: DC 12V, 2.0A
• Power Consumption: ≤ 24 W
• Standby Consumption: ≤ 0.5 W

Working Environment

• Working Temperature: 0℃ to 40 ℃ (32 ℉ to 104 ℉)
• Working Humidity: 20% to 90% RH (Non-Condensing)
• Storage Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
• Storage Humidity: 10% to 90% RH (Non-Condensing)

General

• Speaker: None
• Casing Material: Plastic

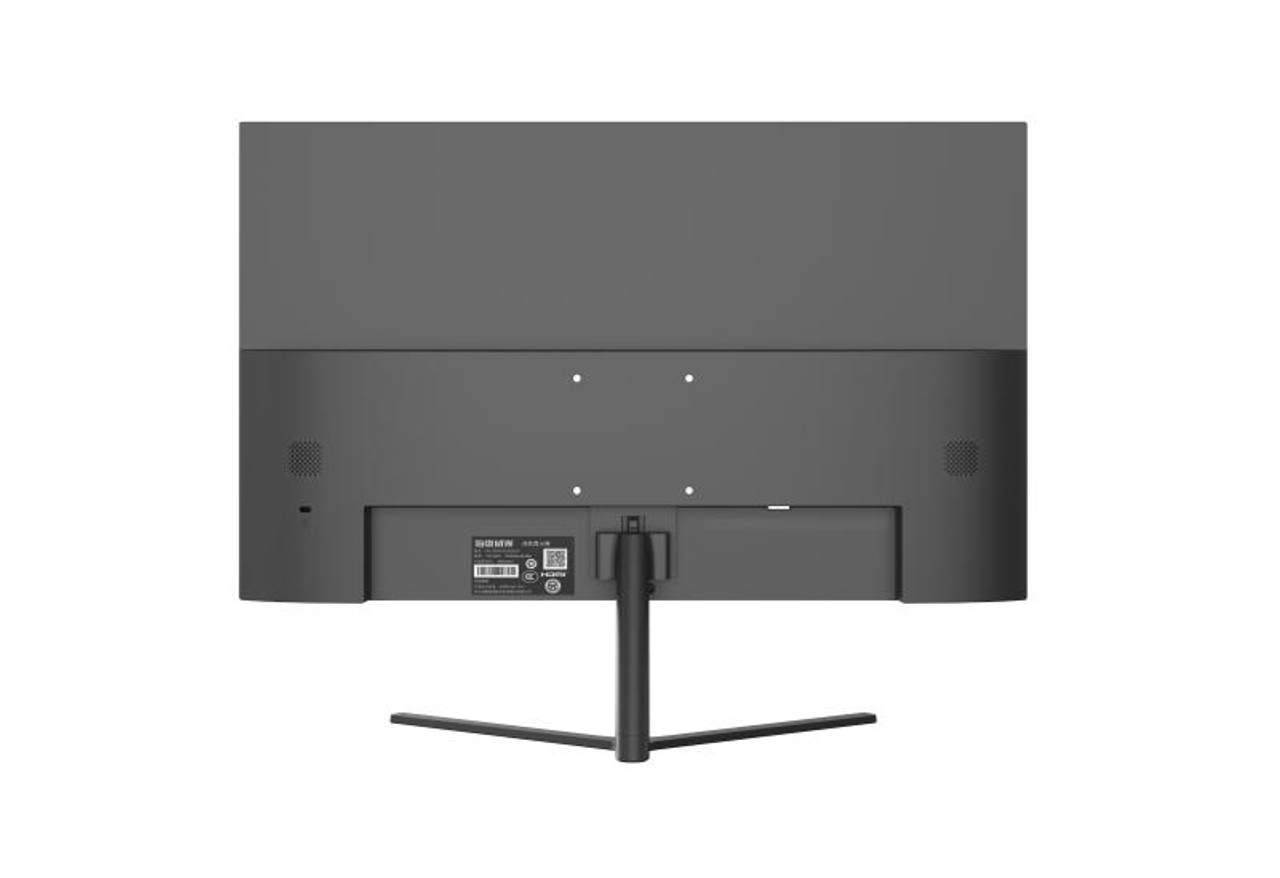

• VESA: 75 mm × 75 mm (4 - M4 × 6 mm)
• Bezel Width: 2 mm（up/left/right），23.55 mm（down）
• Product Dimensions (W × H × D);

Without base: 557.40 (W) mm × 326.70 (H) mm × 61.73 (D) mm

21.9 (W) inch × 12.9 (H) inch × 2.4 (D) inch

With base: 557.40 mm × 533.5 mm × 210.5 mm

21.9 (W) inch × 21 (H) inch × 8.3 (D) inch

• Package Dimensions (W × H × D);

647 (W) mm ｘ 440 (H) mm ｘ 111 (D) mm

25.47 (W) ｘ 17.32 (H) ｘ 4.37 (D) inch

• Net Weight: 2.4 ± 0.5 kg (5.3 ± 1.1 lb)
• Gross Weight: 3.8 ± 0.5 kg (8.4 ± 1.1 lb)
• Packing List: Monitor × 1, Base component × 1, Power adapter (12 V, 2 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
