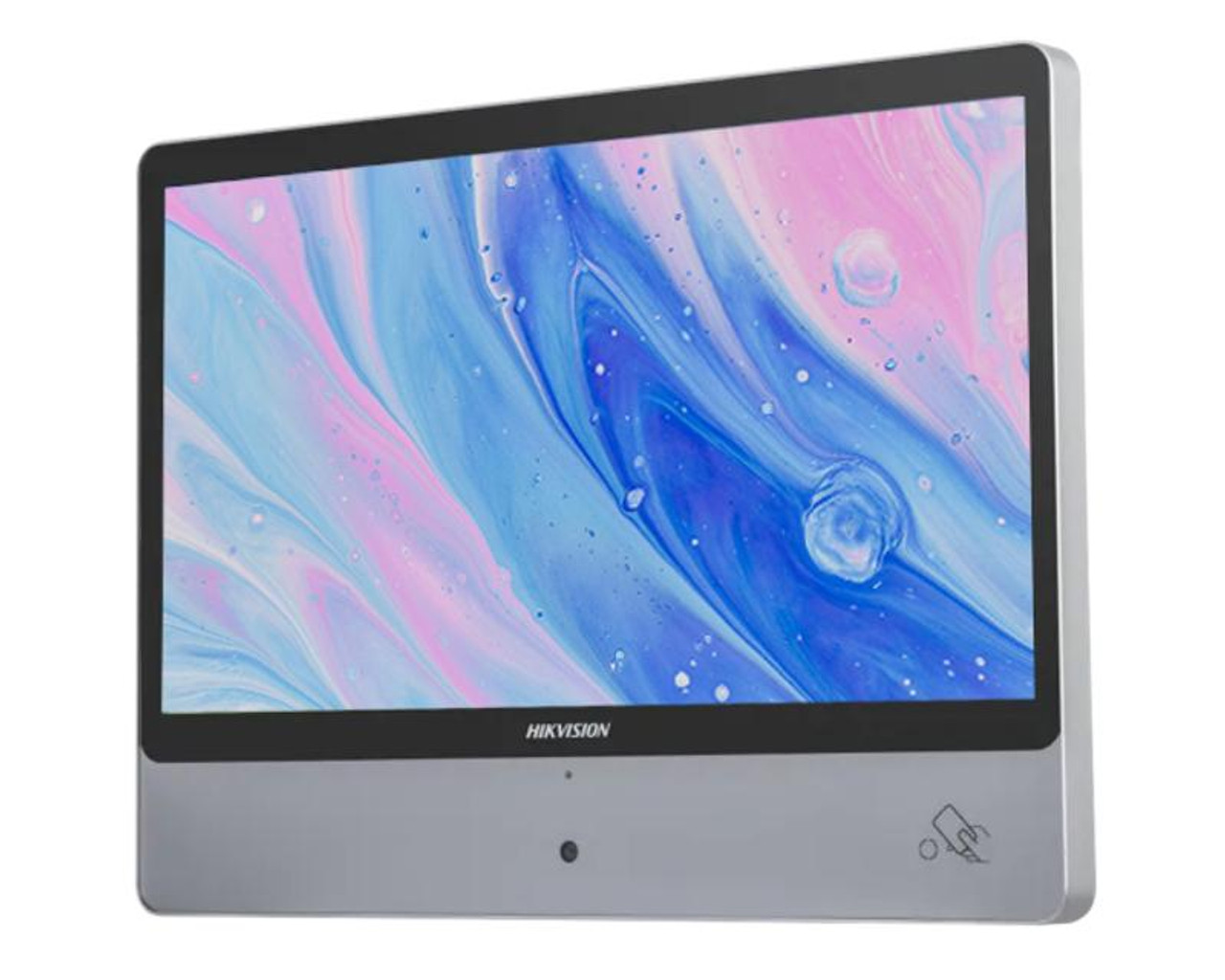

Hikvision DS-D6122TH-D/C 22 inch Electronic Class Board

Product Description

Hikvision DS-D6122TH-D/C 22 inch Electronic Class Board

• 1920×1080P@60Hz full HD, 10-point capacitive touch, and 8-millisecond rapid response
• 27-millimeter-thick body with anti-glare toughened glass, preventing strong light interference and violent destruction
• Support IPX3 waterproof
• Built-in light sensor module helps automatically adjust screen brightness to match surrounding lighting conditions, displaying clear pictures with energy saved
• Built-in 13.56 MHz RFID card-swiping module with high response speed, compatible with the standard card of type A and B
• Control access control devices through Wiegand protocol, and door locks with relays
• Built-in 2 MP WDR camera captures clear images when facing against the light
• Built in hikvision face comparison algorithm, supporting 10 people in the same screen, to solve the short-term attendance needs of multiple people

Datasheet

Specifications

Display

• Screen Size: 21.5 inch
• Resolution: 1920 × 1080
• Active Display Area: 478.66 (H) mm × 260.28 (V) mm
• Pixel Pitch: 0.241 (H) mm × 0.241 (V) mm
• Backlight: ELED
• Viewing Angle: 178°(H)/178°(V)
• Brightness: 600 cd/m²
• Contrast Ratio: 1000:1
• Color Depth: 8 bit, 16.7 M
• Response Time: 8 ms
• Color Gamut: 72% NTSC
• Reliability: 7 × 16 h

Smart

• Lens: 2 MP WDR Camera
• Face Database: 50,000 pictures, JPG format allowed
• Face Detection Distance;

Up to 5 m (196.86'')

0.3 m to 1.5 m (11.81'' to 59.06'') recommended

Adjustable through software;

• Face Verification Accuracy: ＞99%
• Face Verification Time: ≤ 0.5 s/person

Touch

• Touch Type: Capacitive touch
• Glass: 3 mm anti-glare toughened glass
• Touch Point: 10

Built-in System

• Operation System: Android 12.0
• CPU: Cortex-A55，4 Cores, 1.8 GHz
• Memory: 2 GB
• Built-in Storage: 16 GB EMMC

Internal Function

• Loudspeaker: 8 Ω，3 W × 2

Interface

• Network Interface: LAN × 1, built-in Wi-Fi
• Data Transmission Interface: USB 2.0 × 2, BT 4.0 × 1, Card-swiping for IC card, Access control linkage

Power

• Standby Consumption: ≤ 0.5 W
• Power Consumption: ≤ 60 W

Working Environment

• Working Temperature: 0 ℃ to 40 ℃ (30 ℉ to 104 ℉)
• Working Humidity: 10% to 90% RH (without condensation)

General

• Power Supply: 24 VDC, 2.5 A
• Gross Weight: 8.21 kg
• Net Weight: 6.54 kg
• Package Dimensions (W × H × D): 662 (W) mm × 530 (H) mm × 110 (D) mm (26.1 '' × 20.9 '' × 4.3 '')
• Packing List: Power adapter × 1, access control linkage line × 1, quick start guide × 1, screw kit × 1, L-type ring spanner × 1, dust-proof bag × 1, intelligent cloud digital signage paper card × 1, power cord × 1
• Product Dimensions (W × H × D);

With base: 514.06 (W) mm × 383.79 (H) mm × 28 (D) mm (20.24'' ×15.11'' × 1.1'')

Without base: 514.06 (W) mm × 383.79 (H) mm × 26.6 (D) mm (20.24'' × 15.11'' × 1.06'')
