  • HM-TD71C8-75/W

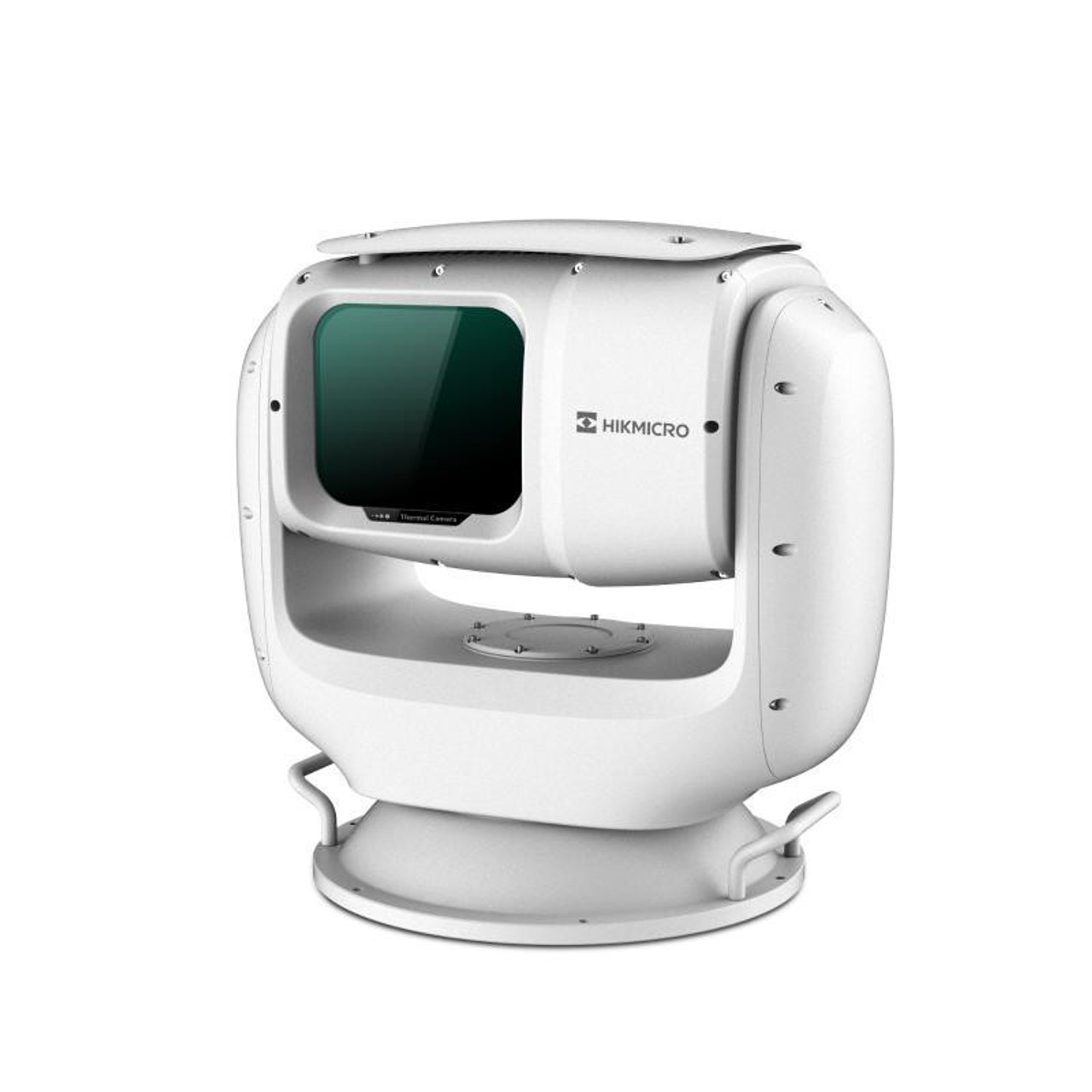

    • Hikvision HM-TD71C8-75/W Thermal Panoramic Scanner

    Hikvision

    Request A Quote

    Write a Review
    SKU:
    HS-HIK-HM-TD71C8-75/W
    Condition:
    New
    Availability:
    Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
    MPN:
    HM-TD71C8-75/W
    Note:
    Images may not be exact, please check specifications.
    Required A Volume Purchase:
    Contact us for a special pricing for Volume orders. sales@hssl.us

    Product Description

    Hikvision HM-TD71C8-75/W Thermal Panoramic Scanner

    • 360° panoramic view within one camera
    • 1280 × 1024 resolution 12 μm, VOx UFPA, NETD ≤ 25 mK (25 °C, F# = 1.0)
    • Perimeter detection based on intelligent algorithm: intrusion, region entrance and exit
    • Fire detection algorithm
    • Alarm linkage: Link other PT cameras to track moving targets when alarms triggered

    Datasheet

    Specifications

    Thermal Module

    • Image Sensor: VOx Uncooled Focal Plane Arrays
    • Resolution: 39144 x 1280
    • Pixel Pitch: 12 μm
    • NETD: ≤ 25 mK (@25° C,F# = 1.0)
    • Focal Length: 75 mm
    • Focus Mode: Semi-auto & Manual
    • IFOV: 0.16 mrad
    • Aperture: F1.0
    • Field of View: 360° × 11.7° (H × V)
    • Min. Focusing Distance: 8 m

    General

    • Power Supply: 30 VDC~60 VDC, two-core terminal block
    • Power Consumption: Max. 150 W
    • Work Temperature/Humidity: From -40°C to 60°C (-40°F to 140°F); Humidity: 90% ± 3% (no condensation)
    • Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
    • Dimension: 408 mm × 310 mm × 407 mm
    • Weight: Approx. 25kg (55.1 lb)

    Detection Range Table/Smart Function Range

    • VCA Range for Humans: 1500 m
    • VCA Range for Vehicles: 4500 m

    Other Details

    (Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.

    Product Videos

    Custom Field

    MPN HM-TD71C8-75/W
    Note Images may not be exact, please check specifications.
    Required A Volume Purchase Contact us for a special pricing for Volume orders. sales@hssl.us
