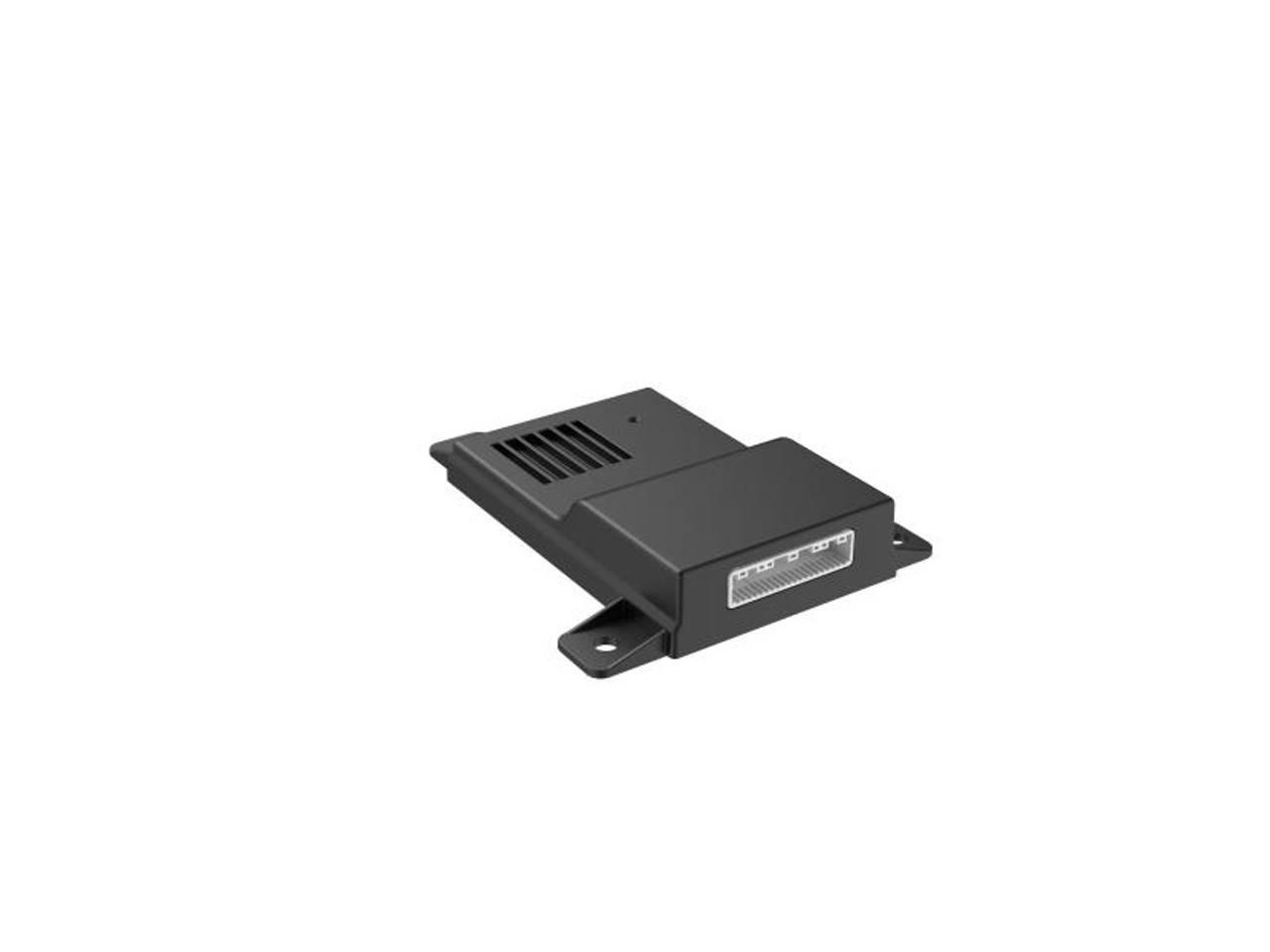

Hikvision Panoramic Auxiliary System - AE-VE242A-A

Hikvision Panoramic Auxiliary System - AE-VE242A-A

• Adopted panoramic image stitching algorithm and image equalization algorithm to to realize panoramic surveillance video around the vehicle.
• Supports 4 channels of 720P, 1080P high-definition camera input
• Support 2D/3D multi-view switching
• Supports HDTVI, AHD, CVBS output
• Supports storage of 4-ch original video and video playback
• Supports CAN connection
• Supports connection to left turn, right turn, reverse hard line signal.
• Supports APP access and calibration function.

Datasheet

Specification

Video

• Video Input: 4-ch, support 720P, 1080P


• Image Settings: Support 2D/3D view
• Distortion Correction: 2D view support distortion correction and fisheye view

Interface

• Video Output;

Choose 1 of the following 3

AHD: 720P OR 1080P;

TVI: 720P OR 1080P;

CVBS: 480P

• SD Card Storage: 16 GB to 128 GB, support DVR storage, playback customizable
• Communication Interface;

6-pin aviation plug internet interface: 1, support 100Mbps;

BM interface: 4, support 4 camera channels;

Video-out interface: 1, screen power supply selectable;

IR receiving interface: 1, support accompanying remote control;

IO input interface: 3, support connection to vehicle wiring of left-turn, right-turn, backing;

CAN interface: 1, support vehicle CAN or external radar

USB interface: 1, support connection to the accompanying Wi-Fi debug module;

RS485 interface: 1, reserved;

TF card slot: 1, support single TF card.

Calibration

• Calibration;

Support static and dynamic calibration of vehicle lane;

Support APP and remote control triggering calibration.

Indicator

• Indicator: Red/green indicator: 1, support multiple device status

General

• Camera Material: Metal cover
• Product Dimension: 168.0 mm × 136.0 mm × 30.0 mm (6.6" × 5.4" × 1.2")
• Product Weight: 315±10 g (0.7±0.02 lb.)
• Power: Max. 1.56 A
• Power Supply: DC 9 to 36 V
• Power Consumption: Max. 14 W
• Startup and Operating Conditions: -40°C to 70°C (-40°F to 158°F)，Humidity 90% or less (non-condensing)
