Product Description

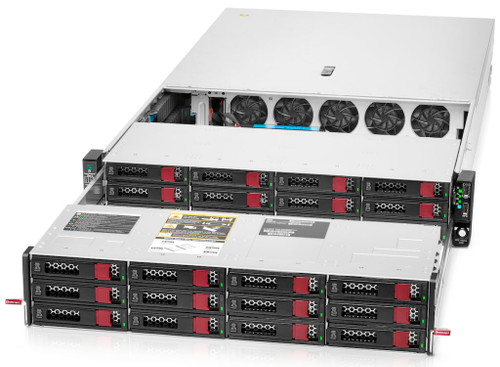

The HPE Alletra 4120 data storage server is specifically designed to run the broadest range of data storage-centric workloads to power your data-driven initiatives to success. From deep archives and data protection to active analytics data lakes, file and object Software-Defined Storage, and so much more, it delivers the capabilities you need at ideal economics with trusted security and a cloud operating experience. This includes the option to consume as-a-service via HPE GreenLake enabling you to shift from owning and maintaining to simply utilizing it. HPE Alletra 4000 data storage servers provide the data infrastructure for any successful data driven organization.
FEATURES
- More data throughput with up to 109%1 more bandwidth, double the now PCIe Gen5 NVMe SSDs for cache and metadata, and up to four new generation tri-mode storage controllers.
- More data processing with latest 4th generation Intel Xeon Scalable processors delivering more performance plus DDR5 memory with up to 50% more bandwidth.
- Enhanced zero trust security from silicon to software and factory to cloud with HPE Integrated Lights Out 6, including new support for the DMTF Security Protection Data Model.
- Cloud operating experience built on the HPE GreenLake Cloud Platform for simplified and automated lifecycle management including dramatically easier firmware management.
Built for Data Applications
The HPE Alletra 4120 is engineered to enable you to accomplish more for a broad range of data storage-centric workloads and data-driven initiatives. It delivers an ideal balance of data capacity, throughput, and processing in a seamless to deploy, ultra-dense, standard depth 2U form factor.
Flexibly configure exceptional, easily serviceable storage capacity for the spectrum of workloads from deep archives to analytics data lakes and cache-intensive workloads in 28 LFF, 24 LFF with 12 new generation EDSFF NVMe or 6 SFF, or 48 SFF with 12 EDSFF NVMe or 6 SFF drive bays.
The symmetric system architecture delivers significantly more throughput with up to 125 GB/s (1000 Gbps) of network bandwidth into the system, up to 64 GT/s for data in flight through the system, and up to 225.6 GB/s of bandwidth to PCIe Gen5 NVMe, 24 Gb SAS, or 6 Gb SATA drives.
Unlock value from your data more quickly with two 4th generation Intel Xeon Scalable processors totaling up to 96 cores, support for a GPU or FPGA accelerator capable of many trillions of operations per second, and up to 6 TB DDR5 memory at 4800 MT/s speed.
Secure by End-to-End Design
From silicon to software and factory to cloud, the HPE Alletra 4120 data storage server is designed with zero trust security at its uncompromising core. Protect your customers, your organization, and your data from increasingly sophisticated and dangerous threats.
A physical bezel lock, logical Configuration Lock, Secure Boot, FIPS 140-2 Smart Encryption and Self-Encrypting Drives, and Secure Erase that meets NIST Guidelines for Media Sanitization protect your data throughout the lifecycle of your infrastructure all the way to end-of-life decommissioning.
HPE Integrated Lights Out 6 (iLO 6) extends the hardware root of trust from protecting server firmware to now also protecting select storage and network controller firmware. Support for the DMTF Security Protection Data Model provides certificate-based controller authentication.
The integrated Trusted Platform Module and IDevID that are part of a 5-factor authentication model ensure the secure connection of your devices to the HPE GreenLake Cloud Platform while AES-256 encryption secures customer data within it.
Intuitive Cloud Experience
Simplify and transform your data infrastructure operations with the cloud experience for your HPE Alletra 4120 data storage server. Whether purchased or consumed as-a-service, you can now monitor and operate through intuitive fleet management SaaS and richer REST APIs.
Shift from owning and maintaining your server-based data infrastructure to simply consuming it as-a-service via HPE GreenLake, freeing up precious financial and people resources to accelerate other aspects of your data-driven initiatives.
HPE GreenLake for Compute Ops Management, a default option, delivers a centralized console for self-service and automated monitoring and operations such as health status and firmware management across your entire HPE Alletra 4000 fleet.
Expanded DMTF Redfish APIs enable you to programmatically manage and automate tasks and bulk actions, reducing risks as well as demands on your limited IT resources particularly in large scale and geographically distributed deployments.
Storage controller: 1 to 4 with up to 8 GB cache (consume expansion slots)
Warranty: 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response
Minimum dimensions ( H x W x D): 3.44 x 17.63 x 37.71 in
Minimum dimensions ( H x W x D): 87.50 x 448.00 x 805.50 mm
Weight: Empty: 46.91 lb; Maximun: 77.96 lb
Weight: Empty: 21.28 kg; Maximun: 35.36 kg
Accelerators: Up to 1 GPU or FPGA (within full-height half-length and under 75 W, consumes expansion slot)
Dedicated Boot Device: Optional HPE NS204i-u Gen11 (internal only)
Form Factor: 2U rack mount standard depth
Front Drive Bays: 24 LFF SAS/SATA or 48 SFF SAS/SATA
Rear Drive Bays: Optional 12 EDSFF E3.S 1 T NVMe, 6 SFF Tri-mode, or 4 LFF SAS/SATA
Expansion Slots: Up to 8 full-height half-length PCIe Gen5 slots and 2 OCP 3.0 slots with 2 processors installed
Management Software: HPE Integrated Lights-Out 6 (iLO 6), HPE GreenLake for Compute Ops Management, optional HPE OneView
Network Controller: Optional up to 2 PCIe full-height half-length and 2 OCP 3.0 controllers, up to 200 Gb/s 2p (consume expansion slots)
Security: TPM 2.0, iDevID, Silicon Root of Trust, logical Configuration Lock, Secure Boot, Secure Start, optional data at rest hardware encryption, optional Secure Erase, optional lockable security bezel, optional HPE Server Security Optimized Service
Power SpecificationsUp to 2 HPE Flexible Slot (Flex Slot) Power Supplies and up to 2200 W per Power Supply
Processor Family: Single or dual 4th generation Intel Xeon Scalable processors
