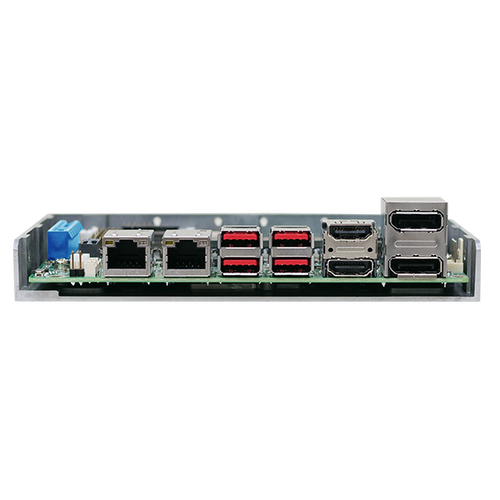

IEI 3.5 SBC Supports Intel Alder Lake-P/Raptor Lake-P Core i7/i5/i3 and Celeron Processor with 8GB LPDDR4x Memory on Board Default, with DP, HDMI™, dual 2.5 GbE, USB 3.2 Gen 2, M.2, SATA 6Gb/s, COM, PCIe x4 for Riser Card and RoHS - WAFER-ADL-P

The WAFER-ADL-P is a 3.5-inch single-board computer designed to seamlessly work with 12th/13th Intel Core i7/i5/i3 and Celeron mobile processors. It comes with a reliable 8GB LPDDR4x on-board memory, typically used in high-vibration and shock environments. The quadruple 4K display connection makes the board ideal for digital signage, surveillance, maintenance, or monitoring usage. The PCIe x4 expansion offers additional extensive I/O and function expansion capabilities. To summarize, the WAFER-ADL-P is compact but versatile, able to adapt to various IoT applications such as surveillance, EV charging stations, AMR, and smart energy management

High-performance 12th/13th Gen Intel Core Mobile Processors

The WAFER-ADL-P Series is powered by the 12th/13th Gen Intel Core Mobile Processors for powerful 5-core to 10-core performance with efficient system power consumption. Furthermore, it leverages the breakthrough Performance Hybrid Architecture for dramatic increases to single- and multi-threaded performance combined with graphics density and AI acceleration in small form factor but high-performance designs.

4K Quadruple Independent Displays

The WAFER-ADL-P integrates Intel Iris Xe Graphics, delivering up to 2.47x faster graphics performance compared to 11th Gen Intel Core processors. With Intel Iris Xe Graphics, the board can feature up to 96 graphics EUs and also provide up to four concurrent 4K independent displays. This is ideal for video wall and surveillance applications.

Outwards-facing Expansions: Two PCIe x1 / One PCIe x2

The outwards-facing riser card, NWR-L2S, enables the connection of up to two outwards-facing PCIe x1 slots via one PCI Express interface. Although may take up more space, it can help enhance the airflow and heat transfer within the system. It is ideal for the chassis that is wide enough for the expansion card to be placed.

Inwards-facing Expansions: Two PCIe x1 / One PCIe x2

The inwards-facing riser card, NWR-R2S, enables the connection of up to two inwards-facing PCIe x1 slots via one PCI Express interface. It is suitable for installation where space is limited. With higher height to increase spacing between boards, it can ensure efficient heat dissipation for space-constrained applications.

PCIe x4 Interface Card Expansion

The PCIe Gen3 x4 (x2 signal) slot, providing high-speed data transfer rate of up to 2GB/s, allows for additional customization and expansion. Directly installing a PCIe card enables the motherboard to run more complex and challenging tasks at the edge.

Enhanced Stability and Easy Installation

Both of the riser cards can be firmly secured to enhance stability by using the L-shaped bracket, in which screw holes are perfectly matched with those on the side of the heat spreader to make it simple and easy to install.

IEI Heat Conduction Casing (IHCC)

IEI has developed a highly efficient thermal solution for the 3.5" SBC - the IEI Heat Conduction Casing (IHCC). The IHCC effectively enhances heat transfer performance by targeting the primary heat source, thus eliminating the need for designing a separate heat spreader.
The IHCC consists of a casing and a heat conduction block that securely fits over the key components where the major heat is generated, ensuring optimal heat transfer.

Dual Low-Latency 2.5G LAN Powered by Intel

2.5 GbE allows for different connection speeds ranging from 100 Mbps to 2.5 Gbps on Cat6 and Cat 5e cables, enabling users to fully utilize high-performance network solutions without costly cable upgrades.
