Product Description
IEI ATX Motherboard Supports 14nm LGA1200 Intel 10th/11th Generation Core i9/i7/i5/i3, Celeron and Pentium Processor, DDR4, Triple Displays, 2.5GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS - IMBA-H420

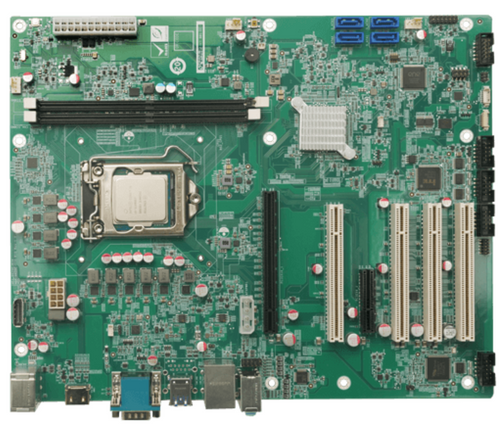

The IMBA-H420 is an ATX motherboard powered by 10th/11th Gen Intel Core processors. With the support of multiple expansion slots and feature rich interfaces, it offers a variety of functionalities and capabilities for the applications that require accelerated computing, blazing-fast transmission, seamless upgrades, and high reliability.
Leadership Performance
IEI’s IMBA-H420 motherboard supports both 10th and 11th Gen Intel Core processors, which boosts up to 80% better performance than its precedent (Core i5 processor). The 10th Gen Intel Core platform supports up to 10 cores and improved performance over Coffee Lake-Refresh. The 10th Gen Intel Core processors contain Intel® UHD Graphics 630 that offers 24 execution units and support outstanding 4K displays.
With the combination of new Intel Core processor technology and graphics architecture, the IMBA-H420 delivers superior computing power that sets it apart from other products available in the market.
Pixel-accurate 4K Resolution

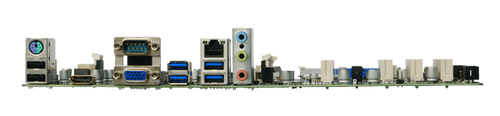

The IMBA-H420 is equipped with three display output connectors, including HDMI, internal DP++ and VGA. The HDMI and DP++ interfaces support pixel-accurate 4K resolutions for high-end applications while the VGA is reserved for legacy devices.
DP++ Supported
The IMBA-H420 provides various display outputs for customers to connect to a device with the same native interface to avoid quality loss. However, when conversion is needed, the equipped DisplayPort Dual-Mode (DP++) connector allows the use of a simple, inexpensive passive adapter to convert to HDMI. It is completely plug and play, handles both video and audio, and does not need any driver to work.
Rich Expansion Options
Bringing together PCIe 3.0 technology and legacy PCI standard creates endless possibilities in developing a wide range of solutions. A graphics card or AI card can be added via the PCIe x16 for sophisticated applications, like medical diagnosis, machine vision, robotics or AI-based projects.
Four PCI slots are also provided to maintain backward compatibility. Legacy systems in machine controllers, test rigs, real-time simulations or many other PC-based applications can be upgraded easily without a full rebuild.
Tap into the Power of AI
In recent years, Edge AI has became a virtual role. We are now at a time where AI is revolutionizing the world. The IMBA-H420 can deliver excellent computing capabilities to accelerate AI adoption in food/fruit inspection, factory automation and test equipment. By adding IEI's Mustang accelerator card, it could be used for deep learning inference computing to help you get faster, deeper insights for your customers and your business.
2.5GBASE-T Ethernet Technology
The 2.5GBASE-T speed is a contemporary solution to an old problem due to the increases in throughput. Enterprises that choose the IMBA-H420 as their solutions for the implementation of 2.5GBASE-T technology will benefit from a simple change that achieves a noticeable gain in bandwidth, while at the same time realizing cost savings from reuse of existing Cat5e cables.
Touch-enabled BIOS
The BIOS menu in the latest IEI products is re-designed to a touch-enabled user interface to eliminate excessive steps and unnecessary keyboard connection. It allows users to navigate with finger on a touch-enabled monitor to make BIOS configuration easily. The new design features the followings:
Graphical interface
BIOS menus is transformed from text-based to graphical user interface, making it intuitive and easy to navigate.
Shortcut to boot device setup
The main menu provides quick access to the boot device configuration, helping users save time on boot option priority setting.
Easy-access function keys
The BIOS function keys are arranged vertically on the side of the screen and indicated by icons, so that users can access them without the need of using a keyboard.
On-screen keyboard
An on-screen keyboard is available when it is needed to enter text in BIOS, such as administration password setup.
One-Stop Service
IEI provides a one-stop source of products for the IMBA-H420 motherboard, ranging from industrial chassis, accelerator cards and CPU fans, to help you with your integration needs.
Features
-
LGA1200 Intel 10th/11th Generation Core i9/i7/i5/i3, Celeron and Pentium processor
-
Dual-channel DDR4 2933MHz
-
Support HDMI, DP, VGA display output
-
Support 1 x PCIe x16，1 x PCIe x4 and 4 x PCI expansion slots
