Product Details

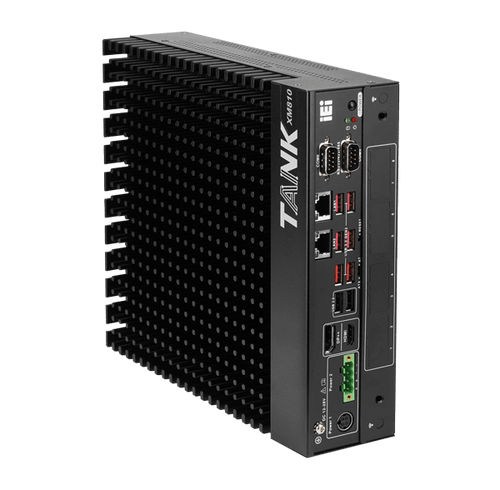

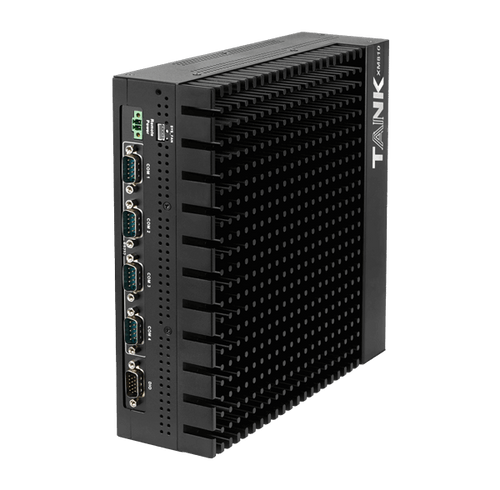

IEI High-Performance 10 th / 11 th Generation Intel Core Processor Fanless Embedded Computer - TANK-XM810
Modular Edge AI Inference System
iEi has engineered the TANK-XM810 with the latest technologies to deliver optimized and reliable processing performance at the rugged edge. This product features 11th/10th generation Intel Core processors and comes with multiple I/O combinations and a modular expansion solution. Expansion is supported by iEi's unique eChassis boxes and eBP backplanes.
The TANK-XM810 can support up to 65W processors and can operate in temperatures ranging from -20°C to 60°C. It is designed for use in harsh environments like digital surveillance, transportation system, machine vision and advanced manufacturing.
10th Gen Intel Core Outstanding Computing Power
8 Cores, 16 Threads, Up to 65W CPU
The TANK-XM810 series is powered by the 10th generation Intel Core i7/i5/i3 processors. With up to 8-core architecture and high-speed DDR4-2933 memory support, it provides low-latency edge responsiveness for data-driven industrial AI and machine vision applications.
Moreover, the 10th Gen Core i7 CPU brings 50% better multi-tasking performance for compute-intensive application than 9th Gen CPU. DDR4 2933 MHz memory further increases speed by 10%. With increased I/O capacity and the outstanding computing power, the TANK-XM810 delivers the performance required to consolidate industrial multiple workloads.
Flexible Expansion with eChassis
The TANK-XM810 supports the unique eChassis modules that enable performance acceleration through GPUs, accelerators and other add-on cards. Furthermore, comprehensive modularized options and the ease of configuration effectively reduce lead time for customers' diverse requirements.
Four Steps to Configure Your Edge AI Inference System
The TANK-XM810 series of embedded computers from iEi provides great scalability and flexibility, thanks to its unique eChassis modules. This makes it easy for system integrators to configure a system that meets specific user requirements.
Flexible Expansion via PCIe/PCI slot
For performance upgradability and flexibility, the TANK-XM810 supports eChassis and eBP modules to add edge inference capabilities. It also provides up to 7 system configuration options. Users can select a specific package that provides extra PCIe expansion slots for add-on cards such as frame grabber cards, accelerator cards, I/O cards, motion control cards, and even GPU accelerators for machine learning and AI workloads.
GPU Expansion Box
The GPU eChassis, TXC-XM81-G1 and TXC-XM81-G2, are the scalable expansion chassis designed for adding graphics cards to enhance artificial intelligence applications. They can support up to total 600 W and 339.8 mm in a full-length, full-height form factor. Other PCIe add-on cards like high speed I/O cards, data collection cards, frame grabber cards and motion cards are also supported to expand functionality.
*Please choose the corresponding eBPs, TXCBP-XM81-4A for TXC-XM81-G1 and TXCBP-XM81-G2-PW for TXC-XM81-G2.
Dual-Power Input Enables Performance Upgrade
The TANK-XM810 provides a dual-power input solution for stably and efficiently powering the add-on cards requiring high power load. The IDD-X1228150 power board offers additional power for GPU cards and accelerators that require more than 75W.
- 12-28V DC for host system
- 12V DC or 16-28V DC for performance acceleration cards
Features
-
Supported CPUs:Intel Core i3-10320 3.8 GHz (up to 4.6 GHz, quad-core, 65W TDP)Intel Core i5-10500 3.1 GHz (up to 4.5 GHz, 6-core, 65W TDP)Intel Core i5-10500TE 2.3 GHz (up to 3.7 GHz, 6-core, 35W TDP)Intel Core i7-10700E 2.9 GHz (up to 4.5 GHz, 8-core, 65W TDP)Intel Core i7-10700TE 2.0 GHz (up to 4.4 GHz, 8-core, 35W TDP)
-
2 x 2.5GbE ports
-
Multiple USB ports and serial ports
-
Multiple internal expansion boards for flexible selection
-
Various optional backplanes and chassis
-
CE/FCC compliant
