IEI Mini-ITX SBC Supports Intel Elkhart Lake Celeron On-Board SoC with 8GB LPDDR4x Memory on Board Default, Triple Independent Display with HDMI, DP and iDPM, SATA 6Gb/s, Dual 2.5GbE, USB 3.2, M.2, 12V DC Input and RoHS - KINO-EHL

Product Description

IEI Mini-ITX SBC Supports Intel Elkhart Lake Celeron On-Board SoC with 8GB LPDDR4x Memory on Board Default, Triple Independent Display with HDMI, DP and iDPM, SATA 6Gb/s, Dual 2.5GbE, USB 3.2, M.2, 12V DC Input and RoHS - KINO-EHL

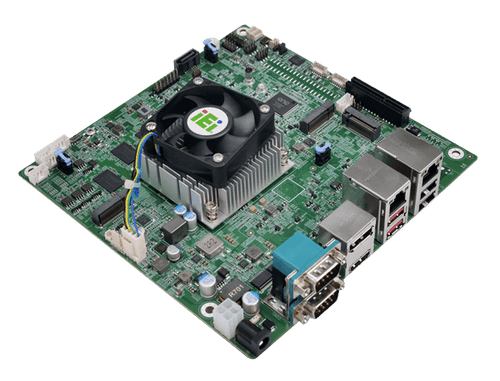

Low-power Mini-ITX Motherboard for IoT Edge Computing

The KINO-EHL Mini-ITX motherboard features reliable performance, advanced network connectivity and rich I/O capabilities in a compact board that fits small chassis size for space-critical in stallation like kiosk, POS or digital signage. The motherboard supports up to 3 display outputs, 8 USB ports and 6 COM ports for a wide range of peripheral connections. Dual 2.5GbE and 5G & Wi-Fi expandability are available to provide high-bandwidth data transmission. Its flexible customization options and low power advantages make it the ideal choice for IoT edge applications, which require economic solution with high scalability and reliability.

High Performance with Low Power

Powered by Intel Celeron J6412 processor and 8GB on-board LPDDR4X, the KINO-EHL can deliver high levels of CPU and graphics performance at low power. Compared to the previous generation, it improves up to 1.7x on CPU and up to 2x on graphics, and gets a 75% higher score in CPU benchmark. With the feature of low power and excellent throughput, the KINO-EHL can benefit IoT edge computing by saving lots of energy while maintaining high computation.

Long-term Support

Intel Celeron J6412 processor is available and supported for an extended period (based on Intel IOTG Roadmap). This long-term availability can benefit integrators who are looking to maximize their return on investment.

8GB On-board RAM

Stability is a necessity in applications where vibration is present. The 8GB LPDDR4X memory soldered on board enables the Mini-ITX motherboard to deliver much more stable, solid operation compared to the socket-type memory.

2.5GbE High-Bandwidth and Low-Latency Data Transmission

The two RJ45 LAN ports both provide 2.5GbE connectivity that gives an immediate boost to overall network performance and improves the bandwidth required at large-scale workloads. By connecting with a 2.5G network switch, it can form a solid, optimized infrastructure for the deployment of massive IoT devices or sensors to deliver lightning-fast transmission speed between devices.

Drive AIoT, 4K Graphics Applications at the Edge

The KINO-EHL supports triple independent display via DisplayPort 1.4, HDMI 1.4 and IEI iDPM interface. The iDPM interface supports diverse display modules, enabling users to add LVDS, eDP or VGA display interface upon requirements. Up to 4K@60 high-resolution support provides great benefits for applications that demand on-image resolution and color realism at the edge.

M.2 B Key Slot for Cards in Different Sizes

In addition to offering wireless network connection, the M.2 B key socket on the KINO-EHL supports NVMe SSD, AI accelerators and many more M.2 cards for stable storage configurations and scalable AI capability. The B-key slot can take different module sizes to make it more compatible with most M.2 module in the market. This includes module widths of 22 and 30 mm, and lengths of 42, 52 and 80 mm.

Tool-less M.2 Installation

The two M.2 slots both contain a quick-release retainer, allowing tool-less installation and removal of an M.2 module. With just a simple press of the retainer, the module can be securely seated into the slot or be released.

PCIe Gen3 Slot Allows More Functionality & Possibility

The Mini-ITX motherboard is equipped with a PCI Express Gen3 expansion slot providing easy integration of PoE, video capture or I/O cards with a compatible riser card. With twice the bandwidth of PCIe Gen2, the KINO-EHL can take advantage of PCIe cards to expand AIoT application potential.

Compact yet Versatile Connectivity

The KINO-EHL provides rich I/O capabilities in a compact and versatile package, making it ideal for industrial applications. It can be used to integrate a wide variety of devices to meet your specific needs.

Touch-enabled BIOS

IEI's tBIOS allows users to navigate with finger on a touch-enabled monitor to make BIOS configuration easily. It helps eliminate excessive steps and unnecessary keyboard connection.

Features

• Mini-ITX SBC supports Intel Elkhart Lake Celeron J6412
• Support Triple independent displays via HDMI, DP, iDPM
• Support dual Intel I225V/I226V 2.5GbE ports
• Support one PCIe Gen3 x4 slot, M.2 A key and M.2 B key expansions
• Two USB 3.2 Gen2, six USB 2.0, two RS-232, four RS-422/485

DATASHEET
