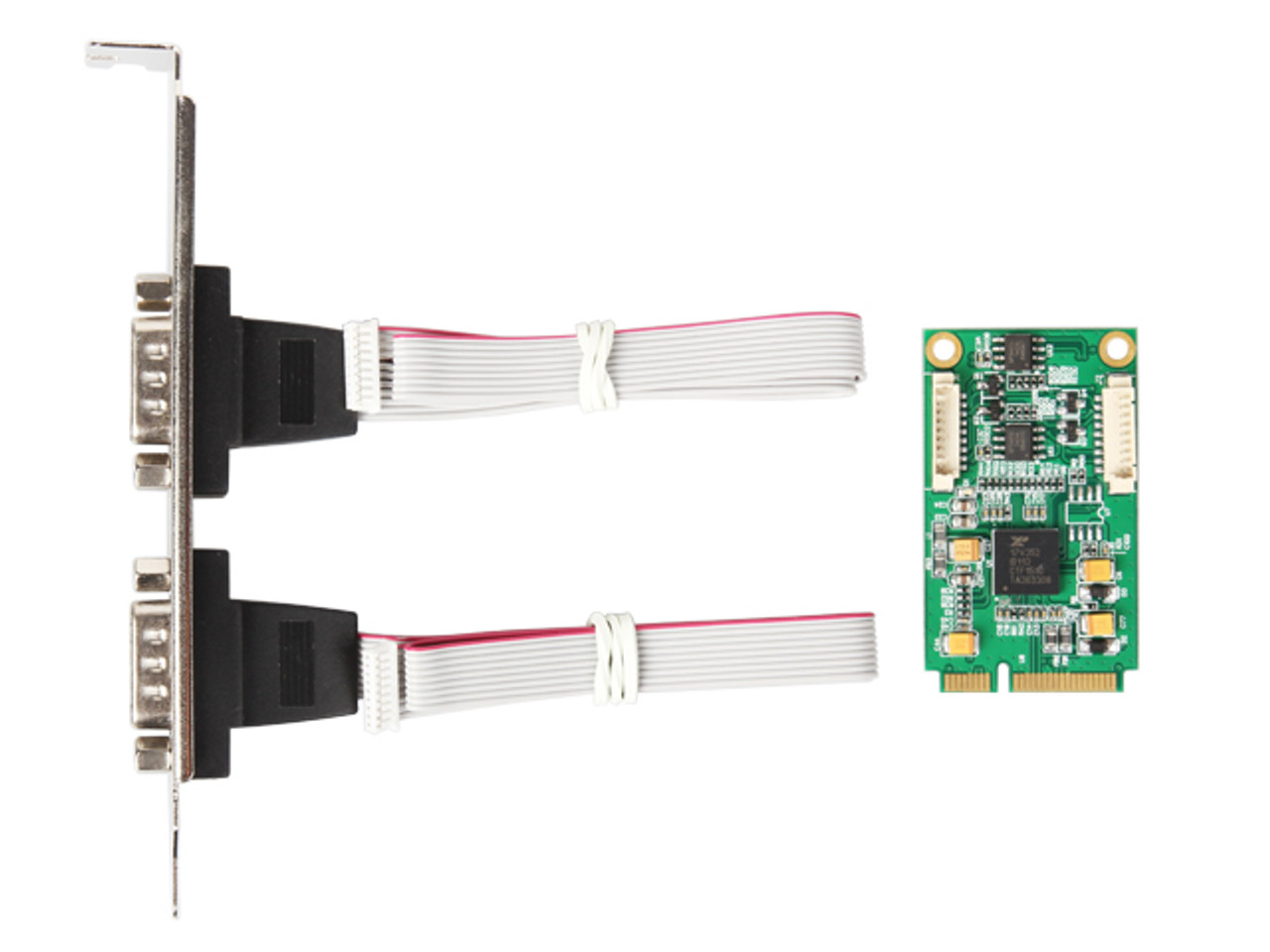

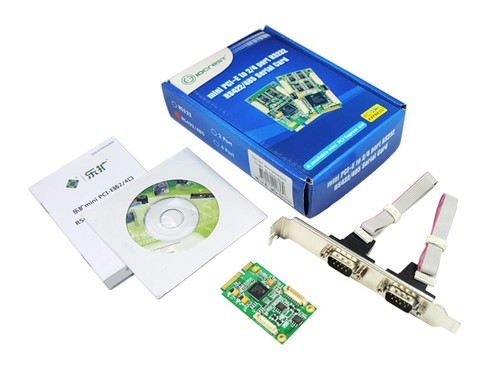

IO Crest M.2 to 2 Ports DB9 RS232 Serial Controller Card - IO-MPCE352A-2S

Features

• Accord Full-Mini (F1) Card type slot size;
• Accord PCI-E Mini Card electrical specification Revision 1.2;
• RS485 signals: DATA+ (B), DATA- (A), GND
• RS422 signal: T/R+, T/R-, RXD+, RXD-, GND
• 600W surge protection, 15 KV ESD protection for all serial ports
• Working mode: asynchronous working、point-to-point or point-to-multipoint 2 wires (half duplex) 4 wires (full duplex)
• Transmission distance: RS-485/422 port:1.2km (300bps-921600bps)
• Sleep mode with wake-up Indicator
• Transmission media: twisted-pair cable or shielded cable
• Interface protection:600W surge protection, 15 kV ESD protection for all serial ports;
• Direction control: Adopt the technology which automatically controls the data-flow direction、automatically distinguish and control the data-transmission direction;
• UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
• Flow control none,hardware and xon/xoff
• Load capability; Support point-to-multipoint transmission. Each converter can connect 32 RS-422 or RS-485 interface equipment
• Extended operating temperature range;  -40 to 85⁰C

Applications

• Next generation Point-of-Sale Systems
• Remote Access Servers
• Storage Network Management
• Factory Automation and Process Control

System Requirements

• Windows Server 2003, 2008, 2012
• Windows XP, Vista, 7, 8
• Linux 2.6.27, 2.6.31, 2.6.32, 3.x.x and newer
• A available mini PCI Express slot
