    • IO Crest PCIe to 16 port SATA III Controller Card - IO-PCE9215-16I

    IO Crest

    Request A Quote

    Write a Review
    SKU:
    HS-IOC-IO-PCE9215-16I
    Condition:
    New
    Availability:
    Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
    MPN:
    IO-PCE9215-16I
    Input Interface:
    PCIe
    Output Interface:
    SATA
    Motherboard Slot:
    PCIe
    Transmission Rate:
    6Gbps
    Auxiliary Accessories:
    Mini SAS to SATA Cable
    Note:
    Images may not be exact, please check specifications.
    Required A Volume Purchase:
    Contact us for a volume pricing | volumeorders@hssl.us

    Product Description

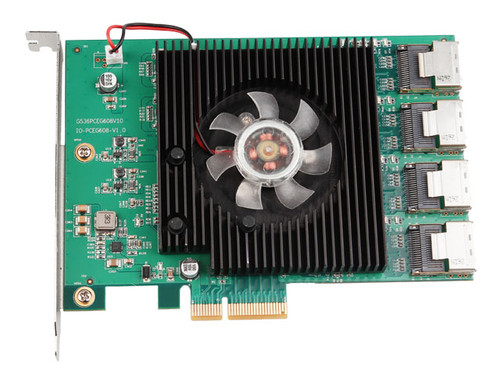

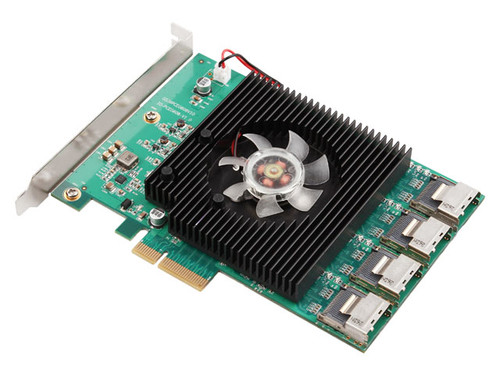

    IO Crest PCIe to 16 port SATA III Controller Card - IO-PCE9215-16I

    Compliant with PCI-Experss Specification v2.0 and backward compatible with PCI-Express 4x ,Compliant with Serial ATA Specification 3.1,PCI Express x4 interface, and compatible with PCI Express x8 and x16 slots.

    Features

    • Compliant with PCI-Experss Specification v2.0 and backward compatible with PCI-Express 4x
    • Compliant with Serial ATA Specification 3.1
    • PCI Express x4 interface, and compatible with PCI Express x8 and x16 slots.
    • Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
    • Hot plug and Hot Swap.
    • Supports Native Command Queue (NCQ)
    • Supports AHCI 1.0 programming interface registers for the SATA controller
    • Supports aggressive power management
    • Supports error reporting ,recovery and correction
    • Supports Message Signaled Interrupt (MSI)
    • Supports Programmable transmitter signal levels
    • Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i
    • Supports Port Multiplier FIS based switching or command based switching.
    • Supports Partial and Slumber Power Management states
    • Supports Staggered Spin-up
    • Compatible with SATA 6G, 3G and 1.5G Hard Drives.

    Note: Not Supported RAID on PM

    Package Contents

    • 1 x SATA III (6Gbps) PCI-Express Controller Card
    • 1 x User Manual
    • 4 x Mini SAS to SATA Cable
    • 1 x Driver CD

    System Requirements

    •  Supports Windows XP/Vista/7/8/8.1/10 Server 2003/2008 R2, Linux 2.6.x and above

    Other Details

    (Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.

    Product Videos

    Custom Field

    MPN IO-PCE9215-16I
    Input Interface PCIe
    Output Interface SATA
    Motherboard Slot PCIe
    Transmission Rate 6Gbps
    Auxiliary Accessories Mini SAS to SATA Cable
    Note Images may not be exact, please check specifications.
    Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
