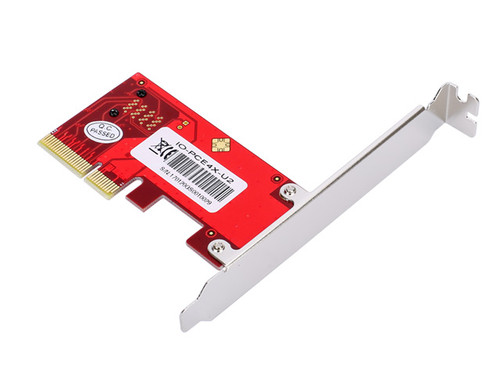

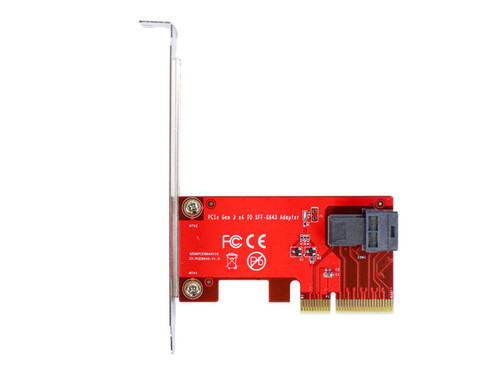

    • IO Crest PCIe to U.2 (SFF-8643) Gen 3 /4 -Lane Card - IO-PCE4X-U2

    IO Crest

    Request A Quote

    Write a Review
    SKU:
    HS-IOC-IO-PCE4X-U2
    Condition:
    New
    Availability:
    Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
    MPN:
    IO-PCE4X-U2
    Input Interface:
    PCIe
    Output Interface:
    U.2 (SFF-8643)
    Motherboard Slot:
    PCIe
    Auxiliary Accessories:
    SFF-8643 cable,Low Profile Bracket
    Note:
    Images may not be exact, please check specifications.
    Required A Volume Purchase:
    Contact us for a volume pricing | volumeorders@hssl.us

    Product Description

    IO Crest PCIe to U.2 (SFF-8643) Gen 3 /4 -Lane Card - IO-PCE4X-U2

    Buit-in SFF-8643 plug connector,D1 ON indicate the card adapter Ready, Allow 2.5" NVMe U.2 (SFF-8639) SSD to connect to system via SFF-8643 cable.

    Features

    • Buit-in SFF-8643 plug connector
    • D1 ON indicate the card adapter Ready
    • Allow 2.5" NVMe U.2 (SFF-8639) SSD to connect to system via SFF-8643 cable
      Maximum throughput:
    • 32 Gbps when installed into a PCIe 3.0 4-lane slot
    • 16 Gbps when installed into a PCIe 2.0 4-lane slot
    • 8 Gbps when installed into a PCIe 1.0 4-lane slot
    • No drivers required for this converter
    • Industrial operating temperature: -40 °C to + 85 °C
    • OS requirement for NVMe SSD: Windows 10, Windows 7 and Windows server 2008 R2

    Specifications

    • PCI Express Base Specification Rev 3.0
    • SFF -8643 Min SAS HD Version 3.5
    • PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0
    • NVM Express 1.0
    • Compatible with PCIe 3.0, 2.0 or 1.0
    • Operating Humidity: 5% - 95% (non condensing)
    • RoHS compliant

    Operating System Support

    • Windows 7/8/8.1/10 64 bit
    • UEFI 2.3.1 or later

    Other Details

    (Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.

    Product Videos

    Custom Field

    MPN IO-PCE4X-U2
    Input Interface PCIe
    Output Interface U.2 (SFF-8643)
    Motherboard Slot PCIe
    Auxiliary Accessories SFF-8643 cable,Low Profile Bracket
    Note Images may not be exact, please check specifications.
    Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
