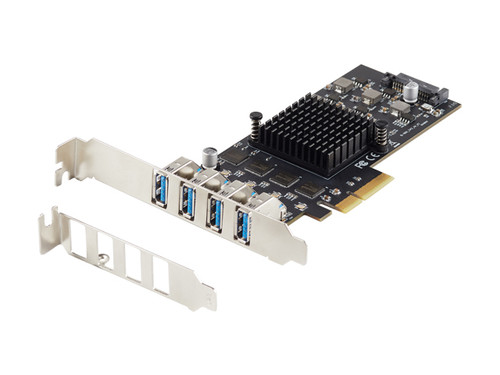

    • IO Crest PCIe x4 to 4 USB3.2 Gen1 Type-A Host Controller Card - IO-PCE3042A-4I

    IO Crest

    Request A Quote

    Write a Review
    SKU:
    HS-IOC-IO-PCE3042A-4I
    Condition:
    New
    Availability:
    Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
    MPN:
    IO-PCE3042A-4I
    Input Interface:
    PCIe
    Output Interface:
    USB
    Motherboard Slot:
    PCIe X4, X8, X16
    Transmission Rate:
    5Gbps
    Auxiliary Accessories:
    Low Profile Bracket
    Note:
    Images may not be exact, please check specifications.
    Required A Volume Purchase:
    Contact us for a volume pricing | volumeorders@hssl.us

    Product Description

    IO Crest PCIe x4 to 4 USB3.2 Gen1 Type-A Host Controller Card - IO-PCE3042A-4I

    PCI-Express 2.0x4,Provides four Super Speed USB 3.0 Type-A ports to support total transfer bandwidth up to 20Gb/s，Support USB Battery Charging Specification Revision 1.2.

    Features

    • PCI-Express 2.0x4
    • Provides four Super Speed USB 3.0 Type-A ports to support total transfer bandwidth up to 20Gb/s
    • Support USB Battery Charging Specification Revision 1.2
    • Complaint with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
    • Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
    • Supports the following speed data rates as follows:
    • Low-speed (1.5Mbps) /Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
    • Supports 4 downstream ports for all speeds
    • Power Input: 15-pin SATA CD-ROM Type Power Connector
    • Hot-swapping feature allows you to connect/disconnect devices without powering down the system
    • 5V/900mA power output for Type A port

    System Requirements

    • Windows 8.x / 10 (X86/X64) (Windows in-box driver)
    • Linux 2.6.31 or later (Linux OS already implemented USB3.0 driver)
    • Mac OS

    Package Contents

    • 1 × PCIe to 4 USB3.2 Gen1 Type-A Host Controller Card
    • 1 × User Manual
    • 1 × Low Profile Bracket

    Other Details

    (Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.

    Product Videos

    Custom Field

    MPN IO-PCE3042A-4I
    Input Interface PCIe
    Output Interface USB
    Motherboard Slot PCIe X4, X8, X16
    Transmission Rate 5Gbps
    Auxiliary Accessories Low Profile Bracket
    Note Images may not be exact, please check specifications.
    Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
