    • IO Crest USB 2.0 to RS232/422/485 Serial Cable - IO-U234285

    IO Crest

    Request A Quote

    Write a Review
    SKU:
    HS-IOC-IO-U234285
    Condition:
    New
    Availability:
    Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
    MPN:
    IO-U234285
    Input Interface:
    USB 2.0
    Output Interface:
    RS232/422/485
    Motherboard Slot:
    USB
    Note:
    Images may not be exact, please check specifications.
    Required A Volume Purchase:
    Contact us for a volume pricing | volumeorders@hssl.us

    Product Description

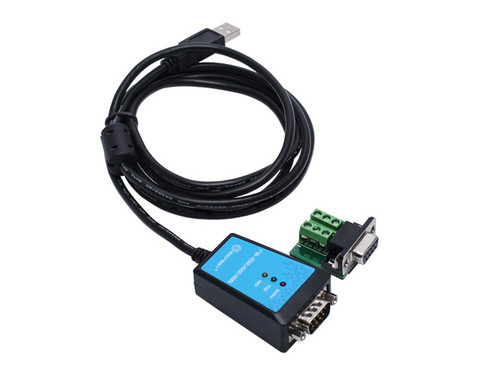

    IO Crest USB 2.0 to RS232/422/485 Serial Cable - IO-U234285

    Conforming to USBV1.0, 1.1 and 2.0,USB 2.0 Compliant, Full-Speed (12 Mbps),Support Bits per second Data transfer rates from 300 baud to 921600baud,Supports USB suspend, resume and remote wake up operations

    Features

    • Standards: conforming to USBV1.0, 1.1 and 2.0
    • USB 2.0 Compliant, Full-Speed  (12 Mbps)
    • Support Bits per second Data transfer rates from 300 baud to 921600baud
    • Supports USB suspend, resume and remote wake up operations
    • 128 byte TX FIFO and 384 byte RX FIFO
    • 400W surge protection and ±15KV ESD protection

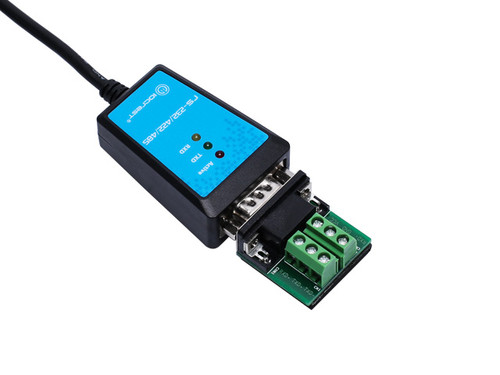

    • Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD)
    • MCU enable controls RS485 bidirectional data signal
    • RS232:  DCD,RXD,TXD,DTR,GND,DSR,RTS,CTS,RI
    • RS422:  TX - ,TX+, RX +,RX - GND
    • RS485:  Data-, Data +
    • FIFO: 128 byte TX
    • FIFO: 384 byte RX
    • Bits per second ：50 bps ~ 921.6Kbps
    • Data bits：7，8，9
    • Stop bits：1，1.5，2
    • Parity bit：Odd, even, mark, space, None
    • Flow control： None，Xon / Xoff, Hardware
    • Operating Temperature：-40°C to +85°C

    System Requirements

    • Windows 2000, XP, Vista, 7, 8,8.1and 10
    • Linux
    • Mac

    Applications

    • USB to UART Cable
    • POS Printer Terminal
    • Networking System
    • Industrial and Power Meter
    • USB Bar Code Reader
    • USB Digital Camera Interface
    • USB Wireless/Wired Modem
