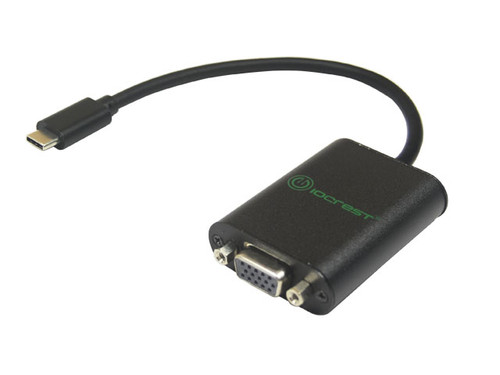

IO Crest USB 3.1 USB-C TO VGA Adapter (DP Alt Mode) - IO-TCTOVGA

Product Description

IO Crest USB 3.1 USB-C TO VGA Adapter (DP Alt Mode) - IO-TCTOVGA

Features

• Compliant with VGA specification
• Compliant with DisplayPort specification version 1.2 and Embedded DisplayPort (eDP) specification version 1.3.
• Support 2 Main Link Lanes at either 1.62Gb/s or 2.7Gb/s link rate
• Support analog RGB output for VGA with Triple 9-bit DAC up to 200MHz pixel rate. Sync signals can be provided in separated or composite manner.
• Support VESA and CEA timing standards u up to 1920x1200@ 60Hz or 2048x1152@60Hz with reduced blanking
• VGA output is compliant with VESA VSIS v1r2 specification
• Supports Enhanced Framing Mode
• Support eDP Authentication: Alternative Scramble Seed Reset and Alternative Framing
• DAC connection detection supported
• DP input detection supported
• Support Auto Power Saving mode and low stand-by current
• USB 3.1 USB-C (USB-C) to VGA Adapter (DP Alt Mode) for Apple The New Macbook/ Chromebook Pixel/Dell XPS 13/Yoga 900/Asus Zen AIO/Lumia 950/950XL

System Requirements

• Windows 7, Windows 8, Windows8.1, Windows 10, Windows XP/Vista, Windows Server 2008,
• Mac OSX v10.7
• linux

Package Contents

• 1 × USB3.1 USB-C TO VGA Cable Adapter
• 1 × User Manual
