Product Description

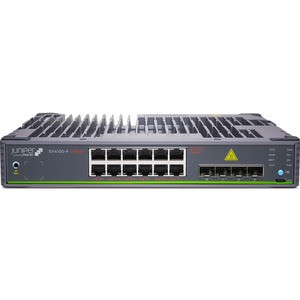

Juniper EX4100-F-12P Ethernet Switch - 12 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-T, 10GBase-X - TAA Compliant - 3 Layer Supported - Modular - 80 W Power Consumption - 300 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U High - Rack-mountable, Wall Mountable, DIN Rail Mountable, Desktop - Lifetime Limited Warranty - TAA
The Juniper Networks® EX4100-F line of Switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, remote office, and enterprise campus networks. The EX4100-F switches combine the simplicity of the cloud, the power of Mist AI™, and a robust hardware foundation with high performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™ Wired Assurance, the EX4100-F line of Switches can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.
Key features of the EX4100-F include:
The EX4100-F line consists of the following models:
Key features of the EX4100-F include:
- Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
- Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
- Standards-based microsegmentation using group-based policies (GBPs)
- Flow-based telemetry to monitor traffic flows for anomaly detection, ability to measure packet delays and report drop reasons
- 10-member Virtual Chassis support
The EX4100-F line consists of the following models:
- The EX4100-F-12T, which is a compact, fanless switch offering 12 x 1GbE non-PoE access ports.
- The EX4100-F-12P, which is a compact, fanless switch offering 12 x 1GbE Power over Ethernet Plus (PoE+) access ports and delivering up to 30 W per port with a total of 180 W of PoE power budget with an external power adapter. EX4100-F-12P can also be powered from an external 90 W power sourcing equipment (PSE) device connected via the uplink port. Additional 90 W of PoE budget is available if the second uplink port is connected to a PSE device. With external power adapter and the two uplink ports connected to 90 W external PSE, total PoE power budget supported is up to 300 W.
- The EX4100-F-24T, which offers 24 x 1GbE non-PoE access ports.
- The EX4100-F-24P, which offers 24 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 370 W of PoE power budget.
- The EX4100-F-48T, which offers 48 x 1GbE non-PoE access ports.
- The EX4100-F-48P, which offers 48 x 1GbE PoE+ access ports and delivers up to 30 W per port with an overall total PoE Power budget of 740 W.
Features
- Power Adapter power source for a reliable connection even during power outages
- Can work as layer 3 routing for scalable network design
- Rack-mountable form factor for added reliability and dependability
- Managed switch provides a reliable foundation for your network
- Gigabit Ethernet port for ultra-fast network speeds
- Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
- Provides efficient communication with other ethernet switch in the stack to ensure maximum productivity
- Twisted Pair media support for a dependable and productive connectivity
- Expand your network capacity with the help of 12 networking ports and transfer your data quickly and easily
- Ethernet Switch provides dependable and powerful connectivity for maximum usability
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
Product Type Ethernet Switch
Manufacturer Part Number EX4100F12PTAA
Power Source Power Supply
Limited Warranty Lifetime
Layer Supported 3
Weight (Approximate) 6.61 lb
Features Fanless"
Form Factor Rack-mountable
Form Factor Wall Mountable
Form Factor DIN Rail Mountable
Form Factor Desktop
Manufacturer Juniper Networks, Inc
Product Model EX4100-F-12P
Product Name EX4100-F-12P Ethernet Switch
Network Technology 10/100/1000Base-T
Network Technology 10GBase-T
Network Technology 10GBase-X
Power Consumption 80 W
Product Series EX4100-F
Brand Name Juniper
Height 1.8
Width 10.6
Depth 9.7"
Manageable Yes"
Environmentally Friendly Yes
Environmental Certification RoHS-6
Compatible Rack Unit 1U
Ethernet Technology Gigabit Ethernet
Ethernet Technology 10 Gigabit Ethernet
Number of Total Expansion Slots 4
Network (RJ-45) Yes
Modular Yes"
Uplink Port Yes
Stack Port Yes
Media Type Supported Twisted Pair
Media Type Supported Optical Fiber
Total Number of Network Ports 12
PoE (RJ-45) Port Yes
Port/Expansion Slot Details 12 x Gigabit Ethernet PoE+
Port/Expansion Slot Details 2 x 10 Gigabit Ethernet Uplink
Port/Expansion Slot Details 4 x 10 Gigabit Ethernet Stack
TAA Compliant Yes
PoE Budget 300 W
Networking Standards IEEE 802.3af
Networking Standards IEEE 802.3at
Networking Standards IEEE 802.11ax
Networking Standards IEEE 802.1ab
Networking Standards IEEE 802.1ak
Networking Standards IEEE 802.1p
Networking Standards IEEE 802.1Q
Networking Standards IEEE 802.1x
Networking Standards IEEE 802.3
Networking Standards IEEE 802.3u
Networking Standards IEEE 802.3ab
Networking Standards IEEE 802.3z
Networking Standards IEEE 802.3ae
Networking Standards IEEE 802.3x
Networking Standards IEEE 802.3ax
Networking Standards IEEE 802.3ah
Networking Standards IEEE 802.1D
Networking Standards IEEE 802.1s
Networking Standards IEEE 802.1w
Networking Standards IEEE 802.3ad
Note Images may not be exact, please check specifications.
Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
