Product Description

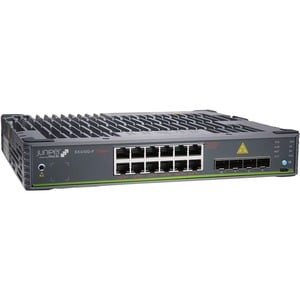

Juniper EX4100-F-12T Ethernet Switch - 12 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-T, 10GBase-X - TAA Compliant - 3 Layer Supported - Modular - 55 W Power Consumption - Twisted Pair, Optical Fiber - 1U High - Rack-mountable, Wall Mountable, DIN Rail Mountable - Lifetime Limited Warranty
The Juniper Networks® EX4100-F line of Switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, remote office, and enterprise campus networks. The EX4100-F switches combine the simplicity of the cloud, the power of Mist AI™, and a robust hardware foundation with high performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™ Wired Assurance, the EX4100-F line of Switches can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.
Key features of the EX4100-F include:
The EX4100-F line consists of the following models:
Key features of the EX4100-F include:
- Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
- Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
- Standards-based microsegmentation using group-based policies (GBPs)
- Flow-based telemetry to monitor traffic flows for anomaly detection, ability to measure packet delays and report drop reasons
- 10-member Virtual Chassis support
The EX4100-F line consists of the following models:
- The EX4100-F-12T, which is a compact, fanless switch offering 12 x 1GbE non-PoE access ports.
- The EX4100-F-12P, which is a compact, fanless switch offering 12 x 1GbE Power over Ethernet Plus (PoE+) access ports and delivering up to 30 W per port with a total of 180 W of PoE power budget with an external power adapter. EX4100-F-12P can also be powered from an external 90 W power sourcing equipment (PSE) device connected via the uplink port. Additional 90 W of PoE budget is available if the second uplink port is connected to a PSE device. With external power adapter and the two uplink ports connected to 90 W external PSE, total PoE power budget supported is up to 300 W.
- The EX4100-F-24T, which offers 24 x 1GbE non-PoE access ports.
- The EX4100-F-24P, which offers 24 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 370 W of PoE power budget.
- The EX4100-F-48T, which offers 48 x 1GbE non-PoE access ports.
- The EX4100-F-48P, which offers 48 x 1GbE PoE+ access ports and delivers up to 30 W per port with an overall total PoE Power budget of 740 W.
Features
- Power Adapter power source for dependable power supply
- Supports layer 3 switching for enhanced performance and usability
- Rack-mountable form factor allows hassle-free and easy usage with increased efficiency
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Stack port provides an easy and hassle-free way to extend your office network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Expand your network capacity with the help of 12 networking ports and transfer your data quickly and easily
- Effectively reduces downtime with improved network performance
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
Product Type Ethernet Switch
Manufacturer Part Number EX4100-F-12T-TAA
Power Source Power Adapter
Limited Warranty Lifetime
Layer Supported 3
Weight (Approximate) 5.95 lb
Features Fanless
Form Factor Rack-mountable
Form Factor Wall Mountable
Form Factor DIN Rail Mountable
Manufacturer Juniper Networks, Inc
Product Model EX4100-F-12T
Product Name EX4100-F-12T Ethernet Switch
Network Technology 10/100/1000Base-T
Network Technology 10GBase-T
Network Technology 10GBase-X
Power Consumption 55 W
Product Series EX4100-F
Brand Name Juniper
Expansion Slot Type SFP+
Height 1.8"
Width 10.6"
Depth 9.7"
Manageable Yes
Environmentally Friendly Yes
Environmental Certification RoHS-6
Compatible Rack Unit 1U
Ethernet Technology Gigabit Ethernet
Ethernet Technology 10 Gigabit Ethernet
Number of Total Expansion Slots 4
Network (RJ-45) Yes
Number of SFP+ Slots 4
Modular Yes
Uplink Port Yes
Stack Port Yes
Media Type Supported Twisted Pair
Media Type Supported Optical Fiber
Total Number of Network Ports 12
Port/Expansion Slot Details 12 x Gigabit Ethernet Network
Port/Expansion Slot Details 2 x 10 Gigabit Ethernet Uplink
Port/Expansion Slot Details 4 x 10 Gigabit Ethernet Stack
TAA Compliant Yes
Networking Standards IEEE 802.11ax
Networking Standards IEEE 802.1ab
Networking Standards IEEE 802.1ak
Networking Standards IEEE 802.1p
Networking Standards IEEE 802.1Q
Networking Standards IEEE 802.1x
Networking Standards IEEE 802.3
Networking Standards IEEE 802.3u
Networking Standards IEEE 802.3ab
Networking Standards IEEE 802.3z
Networking Standards IEEE 802.3ae
Networking Standards IEEE 802.3x
Networking Standards IEEE 802.3ax
Networking Standards IEEE 802.3ah
Networking Standards IEEE 802.1D
Networking Standards IEEE 802.1s
Networking Standards IEEE 802.1w
Networking Standards IEEE 802.3ad
