Product Description

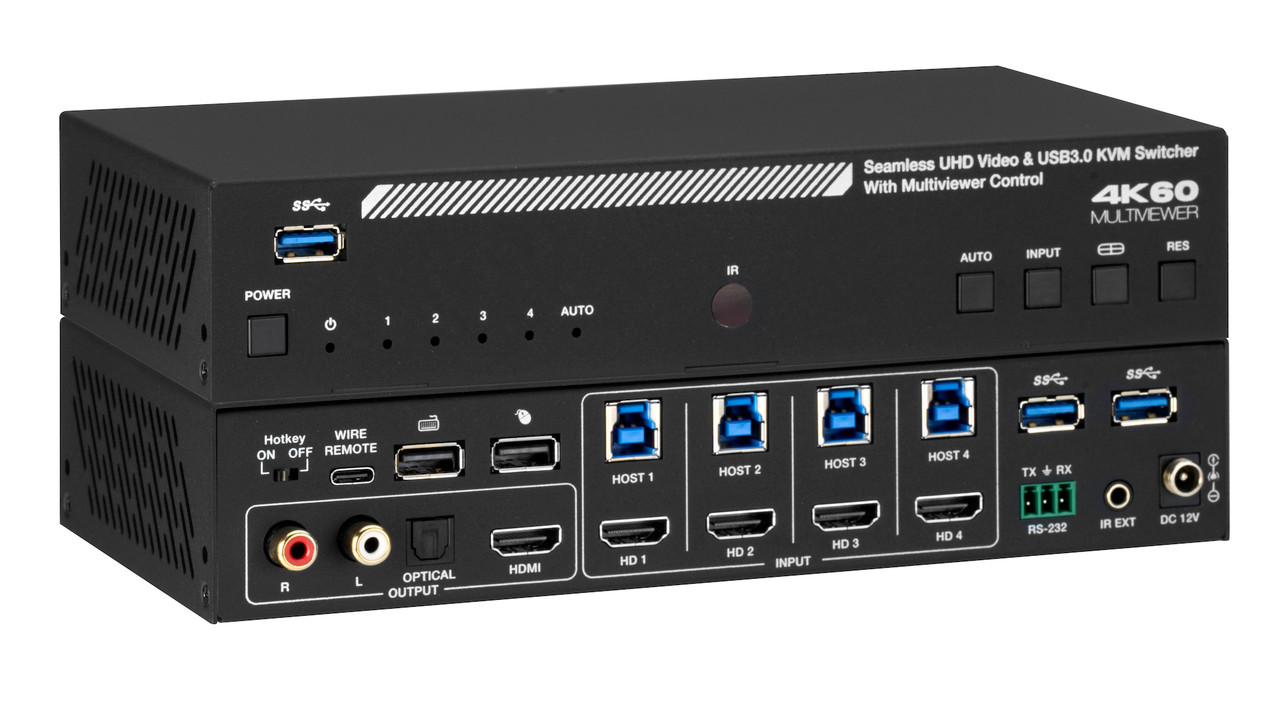

KanexPro HDMI 4X1 KVM Switcher w/ Multi-View Tiling 4K - KVM-4X1MV4K
The KanexPro KVM-4X1MV4K HDMI & USB 3.0 KVM Switcher was designed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen. It can combine up to four video signals onto a single UHD or HD displayer. The user can manage each input, and create combinations of the four inputs on a single display, as well as adjust the position of any input. This product supports 8 display modes, within the mode range, users can freely switch 4-channel HD input signals. It can realize single screen display and multiview display on a single screen.
This device supports full range of input video resolutions up to 4K@60 (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems. Besides, the switcher can transmit USB 3.0 signal up to 5Gbps for KVM
function. It also supports direct switching through buttons on the front panel, IR remote, and hotkey through keyboard / mouse connected to the special USB port. It provides a wide compatibility choice for different operating systems, such as Windows, Mac OS and Linux, no driver required and simple plug and play.
This device can be controlled via front panel buttons, IR remote, keyboard / mouse hotkeys, OSD menu navigation, Controller software, RS-232 commands.
Features
- HDCP 2.2 and HDCP 1.x compliant
- Support 18Gbps uncompressed video bandwidth
- Input and output resolutions support up to 4K2K@60Hz 4:4:4, as specified in HDMI 2.0b
- Support LPCM, DD+, DTS audio pass-through, up to 7.1 audio channel
- Seamless switching between input channels and combined multiple images on single UHD monitor
- Up to 8 display modes: Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
- Seamless switching in single screen display mode
- Fast switching in multiview display mode
- Using only 1 set of keyboard, mouse and monitor to control 4 computers
- Built-in 3-port USB 3.1 Gen 1 hub with SuperSpeed 5Gbps data transfer rates, allowing you to share USB peripherals like printer, scanner, webcam and hard disk between computers
- Support multimedia, wireless keyboards and mouse
- Audio de-embedding via analog and optical fiber audio ports
- Support volume control and independent audio selection
- Support OSD navigation for advanced setting
- EDID management
- Control via front panel buttons, IR remote, keyboard/mouse hotkeys,OSD menu navigation, Controller software, RS-232 commands
- Compact design for easy and flexible installation
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
MPN KVM-4X1MV4K
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2 / 1.x
Video Bandwidth 18 Gbps
Video Resolution Up to 4K 2K @ 60Hz 4:4:4
Color Depth 8/10/12bit
Housing Metal enclosure
Color Black
Power consumption 18.48W (Max)
Note Images may not be exact, please check specifications.
