Product Description

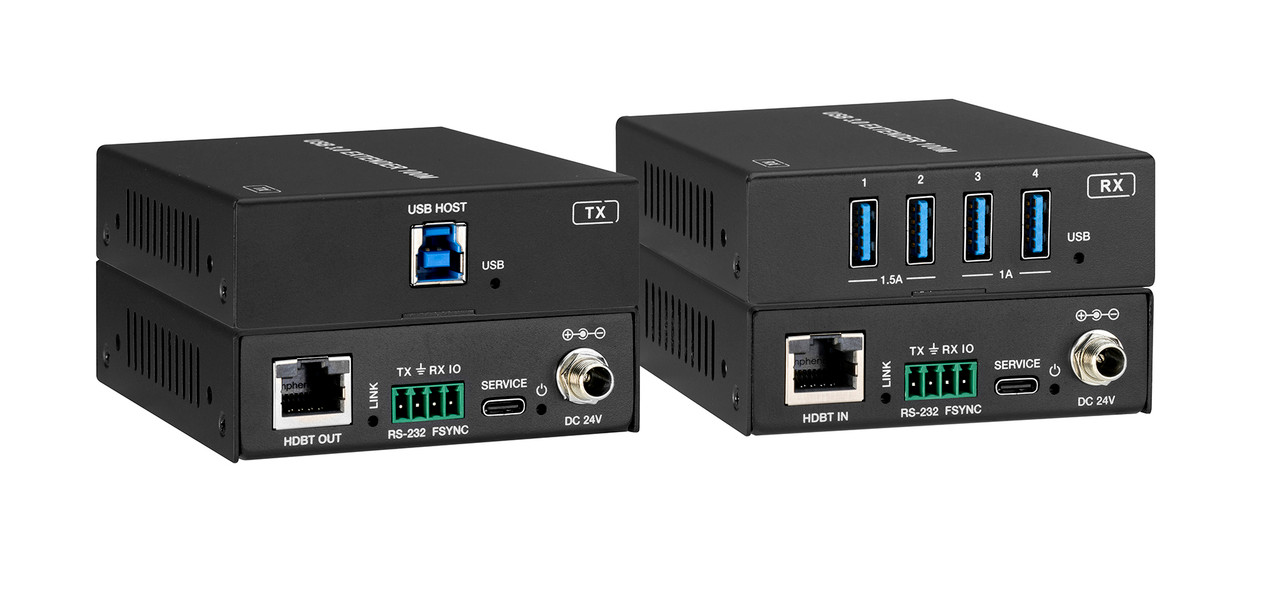

KanexPro USB 3.1 Gen 1 Over Cat 6 Ethernet Extender Kit (328') - EXT-USB3100M
Features
- USB 3.0 connectivity with data transfer rate up to 5Gbps
- Backwards compatible with USB 2.0 and 1.1
- Hardware acceleration for isochronous and bulk transfer
- Extension of USB 3.0 up to 100m/328ft over CAT6a cable
- USB-A port 1 and 2 support 5V/1.5A, port 3 and 4 support 5V/1A on the Receiver
- Simple plug and play, no driver and setting installation needed
- Support RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)
- Support bi-directional 24V PoC (Power Over CAT)
- Simple plug and play, no driver and setting installation needed
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
MPN EXT-USB3100M
USB Protocol USB3.0
Transfer Rate Up to 5Gbps
Network Bandwidth 10Gbps
Transmission Distrance 100m/328ft over CAT6a (F/FTP) cable
Transmitter Input: 1 × USB HOST [USB-B, 9pin Female], Output: 1 × HDBT OUT [RJ45, Female], Control: 1 × RS-232 [3pin-3.5mm Phoenix Connector]
Transmitter 1 × FSYNC [1pin-3.5mm Phoenix Connector], 1 × SERVICE [USB-C, Update Port]
Receiver Input: 1 × HDBT IN [RJ45, Female], Output: 4 × USB Devices [USB-A, 9pin Female], Control: 1 × RS-232 [3pin-3.5mm Phoenix Connector]
Receiver 1 × FSYNC [1pin-3.5mm Phoenix Connector], 1 × SERVICE [USB-C, Update Port]
Housing Metal Enclosure
Color Black
Dimensions Transmitter / Receiver: 85mm [W] × 100mm [D] × 25.5mm [H]
Weight Transmitter: 253g, Receiver: 260g
Power Supply Input: AC 100~240V 50/60Hz Output: DC 24V/2A
Power Consumption PoC Power Supply: 40W Max
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)
Note Images may not be exact, please check specifications.
Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
