Product Description

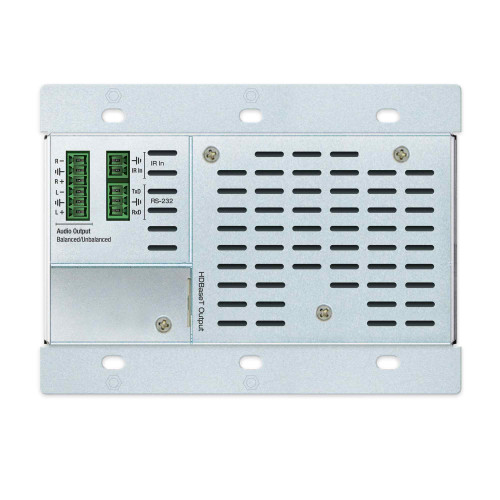

Key Digital 3 Input Multi-Format Switcher and USB 2.0 Wall Plate 100m HDBaseT Transmitter - KD-X3X1WUTX
KD-3x1WUTx is an HDBaseT wall-plate transmitter + universal format switcher + soft-codec enabling interface with HDMI, Display Port, and VGA inputs, USB-A and USB-B connections. KD-X3x1WUTx is ideal for professional video installations in conference rooms, class rooms, lecture halls, auditoriums, and more. KD-X3x1WUTx's receivers (sold separately) feature audio de-embedding for ease of integration with audio systems. KD-X3x1WUTx features push-button or IP switching and is KD-App Ready. CEC Display control keypad enables basic controls of the connected display or projector for a simplistic all-in-one integration. In addition to AV signals, KD-X3x1WUTx extends USB 2.0, IR and RS-232 for controlling remotely located equipment. The wall-plate unit fits in a standard US three-gang box and is powered by the Rx unit or Presentation Switcher for convenient installation.
-
Presentation Switching: 1 HDMI, 1 VGA+L/R, 1 Display Port, and 1 USB-C source selection by push button or IP control
-
Installation: Fits in standard US 3-gang wall box or table and wall AV boxes
-
Rx Options: Native integration with KD-X100MRx black box HDBaseT Rx or KD-UPS52U Presentation Switcher. Future Rx options may be available
-
Video Conference USB Hub: USB Host + Device ports create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
-
Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
-
Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
-
CEC Manager: Power, volume, and muting controls of the connected displays/projectors without any additional control wiring
-
Audio De-Embedding: Audio of the selected source is de-embedded at the unit’s analog L/R balanced/unbalanced and PCM digital audio connectors
-
ARC: Audio may be returned from the connected Rx (KD-X100MRx) unit and output on the external analog output
-
KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager
-
KDPlug & Present Ready: Add KD-CX800 to build a programming-free automation system
-
Ease of Integration: Complete configuration using Key Digital Management Software™ Pro
-
Power Over HDBaseT: Wall-plate unit powered by Rx/Presentation Switch unit
-
Installation: Tx unit designed for installation in standard US three-gang box
-
Signal Extension: 4K/UHD (18G) up to 100m / 328ft. 1080p up to 150m / 492ft
-
Surround Audio Support: Dolby TrueHD, Dolby® Digital Plus, Dolby Atmos, and DTS-HD Master Audio
-
Control System Support: Fully controllable by all TCP/IP and RS-232 supported control systems via open API.
Additional Features
-
HDCP Licensing: Fully licensed and compatible with HDCP 2.2
-
HDR: More life-like images through a greater range of luminance levels
-
Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
-
Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
-
EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
-
IR Sensor: Wall-plate collects line-of-sight IR from remote(s) without external IR wiring
-
RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit
