Product Description
Key Digital 4x1 4K HDBaseT PoH Wall Plate Switcher (Transmitter Only) - KD-X4X1WUTX

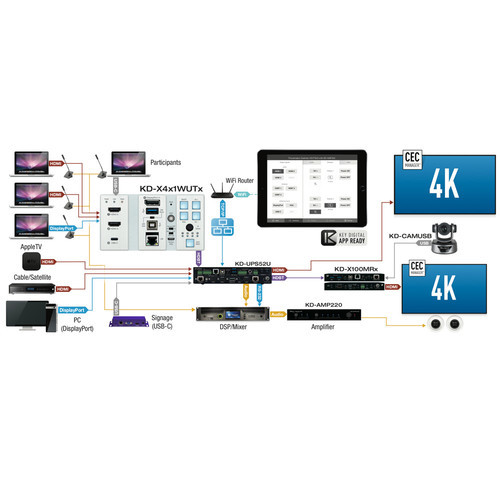

The 4x1 4K HDBaseT PoH Wall Plate Switcher from Key Digital is a transmitter that features 2 x HDMI ports, 1 x DisplayPort, and 1 x USB Type-C port for presentation switching. The 4-input ports can be selected by a push button or via IP control. It is designed to be controlled via an RJ45 LAN port and connected to receivers like the KD-X100MRx black box HDBaseT receiver, the KD-UPS52U, and KD-UPS72U presentation switchers (available separately). This wall plate switcher supports up to 4096 x 2160 resolution at 60 Hz. A signal extension is supported up to 328' via 4K/UHD resolution and up to 492' via 1080p resolution. This unit is designed for installation in a standard US three-gang box.
- PTZ USB camera integration marries natively with KD-CAMUSB for full PTZ control via KD-App
- Supports up to 4096 x 2160 or 3840 x 2160 at 24, 25, 30, 60 Hz at 4:4:4 (signals up to 18 Gb/s bandwidth)
- Automatic selection of newly detected source and switching from newly disconnected source when enabled
- CEC Manager for power, volume, and muting controls of the connected displays/projectors without any additional control wiring
- Network scan and detect populates pre-built GUI including connected display/projector controls via CEC Manager
- Audio of the selected source is de-embedded at the unit's analog L/R balanced/unbalanced connector
- Fully licensed and compatible with HDCP 2.2
- HDR10 and Dolby Vision allow for life-like images through a greater range of luminance levels
- Wall plate unit powered by Rx/presentation switch unit (available separately)
- Full Buffer System manages TMDS reclocking / signal regeneration, HDCP authentication to source and display, EDID Control handshake, and Hot-Plug detection voltage
- EDID Management features an internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
- Wall plate collects line-of-sight IR from remote without external IR wiring
- RS-232 bidirectional control to and from the transmitter and receiver/presentation switch unit
- Provides TCP/IP and RS-232 control and status of/from transmitter unit
- Support for Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio
- Key Digital app ready, Key Digital Management Software Pro (KDMS Pro) ready, and Compass Control Pro ready
- Fully controllable by all TCP/IP supported control systems via open API including Compass Control Pro, AMX, Crestron, KNX, RTI, Savant, URC, and Leviton
- HDMI, DisplayPort & USB Type-C Switching
- Push Button or IP Control
- USB Host and Device Ports
- Audio De-Embedding
- Power over HDBaseT
- Up to 328' Signal Extension via 4K/UHD
- Full Buffer System
- EDID Management
- IR Sensor
- RS-232 Bidirectional Control
