Product Details

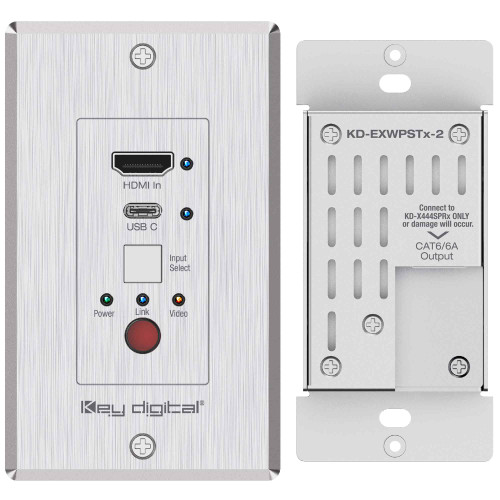

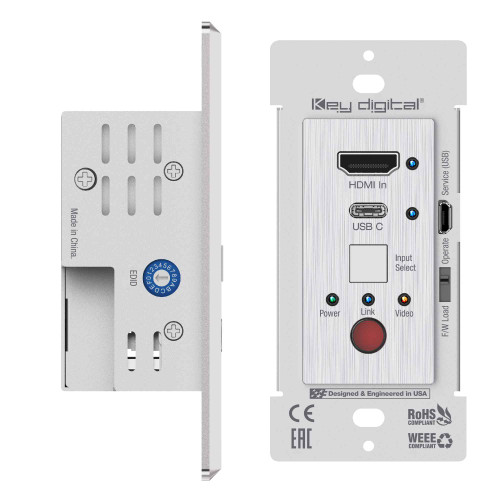

Key Digital KD-XWPS HDMI USB-C over 50m CAT6 Wall Plate Extender Set
KD-XWPS is a single-gang wall-plate switcher transmitter + receiver kit with one HDMI and one USB-C input.
It's ideal for professional AV systems installations in confernce rooms, huddle spaces, classrooms, and more.
High-Resolution 4K/UHD Support
KD-XWPS supports 4K/UHD resolution with bandwidth up to 18Gbps and HDCP2.2 compliance.
It extends video resolutions up to 4096x2160 at 60Hz with 4:4:4 chroma sub-sampling. This is accomplished over a single CAT6/6A cable up to 164ft (50m).
IR Device Control
In addition to HDMI video and audio signals, the CAT6 to HDMI wall plate features an IR sensor on the faceplate to allow for remote control of equipment located elsewhere. It Collects line-of-sight infrared from remotes without an external connecting block.
System Integration Tools
KD-XWPS features EDID handshake control and hot plug detection for overcoming common systems integration obstacles.
Convenient Installation
The CAT6 wall-plate unit fits in a standard US single-gang box. It is powered by the Rx unit for convenient installation.
Features
-
Presentation Switching: 1 HDMI and 1 USB-C selected by push button or auto switching
-
Auto-Switching: Automatic selection of newly detected source and switching from newly disconnected source when enabled
-

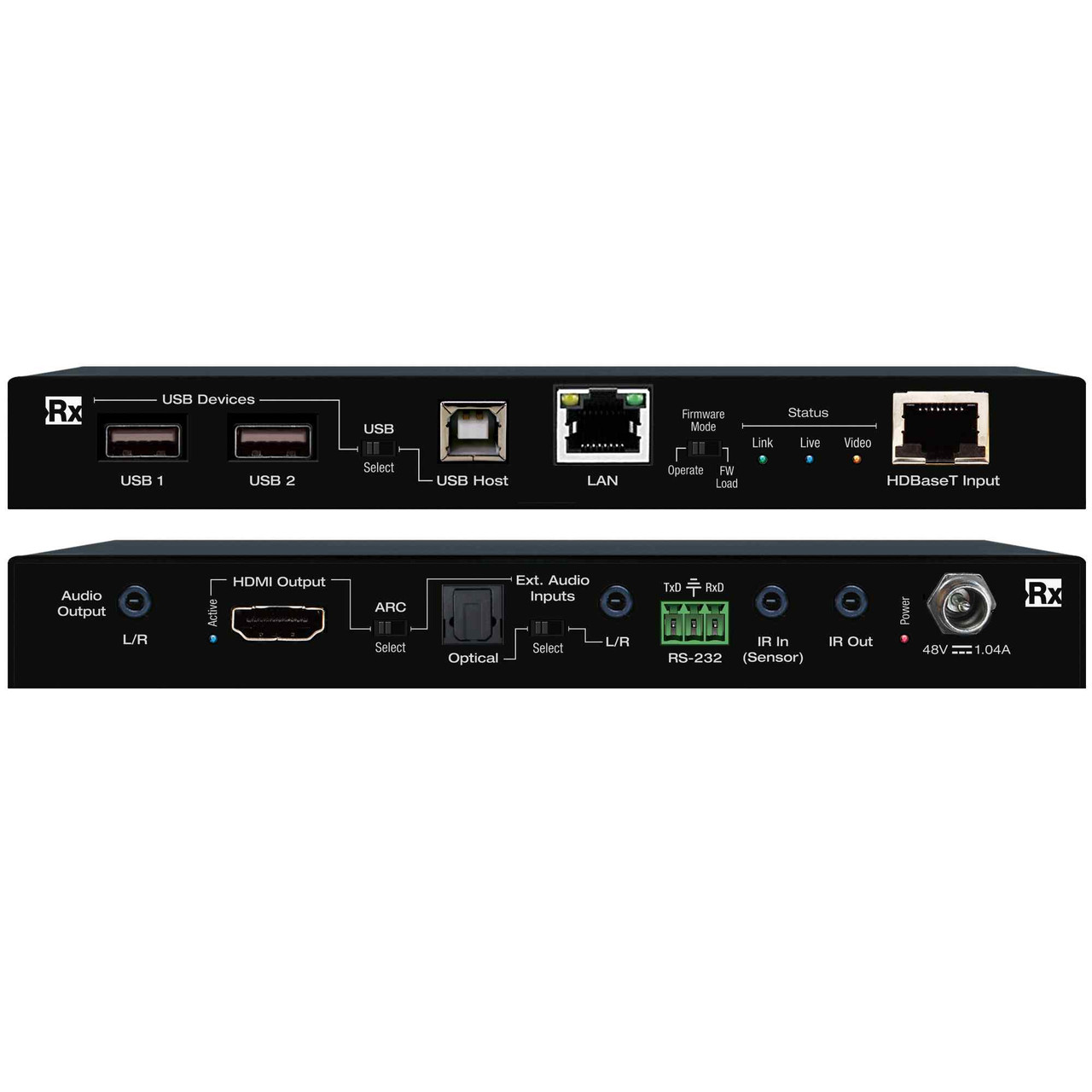

Complete Kit: Includes Tx (model KD-EXWPSTx-2) and Rx (model KD-X444SPRx) units
-
Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
-
Visually Lossless Compression: 18G enabling technology applied to all video formats exceeding 10.2Gbps to accommodate CAT6/6A transmission channel
-
Power over CAT: Wall plate Tx unit powered by Rx
-
Signal Extension: 4K/UHD (up to 18G) up to 164ft / 50m. 1080p and lower up to 230ft / 70m.
-
IR Sensor: HDMI wall-plate 4K collects line-of-sight IR from remote(s) without external IR wiring
-
Surround Audio Support: Dolby ®, DTS™ (formats up to 5.1 / 6.1)
Additional Features
-
HDCP Licensing: Fully licensed and compatible with HDCP 2.2
-
HDR (High Dynamic Range): More life-like images through a greater range of luminance levels
-
Deep Color Support: Up to 4K/UHD 30Hz 4:4:4/12 bits or 60Hz 4:2:2/12 bit
-
Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
-
EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
