Product Description
Key Digital Video Wall Processor Matrix with 4 HDMI Inputs and 4 Outputs -KD-VW4x4ProK
Introduction
Key Digital’s KD-VW4x4ProK is a 4 HDMI input video wall processor featuring 4 HDMI + 4 CAT6 AV mirrored outputs. Additionally, it functions as a seamless matrix switcher with independent audio routing.
KD-VW4x4ProK is perfect for video walls in large-format viewing applications. It's ideal for bars and restaurants, sports and gaming caves, digital signage, house of worship, entertainment centers, and more.
Key Digital has specially engineered the KD-VW4x4ProK to cost-effectively create video walls with consumer panels and monitors.
Panel Flip Feature and Bezel Compensation
These powerful features enable a continuous image through the video wall, with the display’s narrow bezel sides conjoined regardless of using video wall monitors or consumer displays.
Versatile Video Wall Layouts
The KD-VW4x4ProK supports five video wall layouts: 2x2, 4x1, 3x1, 2 mirrored sets of 2x1, and 1x4. This makes it an ideal choice for constructing video walls in various applications and budget ranges.
Mirrored Outputs and 4 Receiver Units Included
The KD-VW4x4ProK features mirrored HDMI and CAT6 AV outputs, allowing connection to up to eight displays through the included Rx units.
This is particularly useful for dual video walls that need to display the same content simultaneously.
Or, set KD-VW4x4ProK to video matrix switcher mode, and each of the four displays within the video wall can view unique content.
Seamless Source Selection and 4K Down-Conversion
The video wall processor executes switching between sources in video wall or matrix modes seamlessly. Moreover, the 4K down-conversion feature ensures compatibility with legacy 720p and 1080p displays, offering cost savings for end users.
4K Video and Surround Audio Support
The KD-VW4x4ProK supports 4K/UHD content up to 3840 x 2160p at 60fps in 4:2:0. It also provides independent audio routing with de-embedding on both analog balanced/unbalanced and digital optical connections with surround format support up to 5.1 Dolby / DTS.
Intuitive Control and Integration
Password-protected Web UI, the free iOS KD-App, Key Digital Management Software Pro, and an easy-to-understand open API provide plenty of modern control options to effortlessly manage the video wall processor from a PC, iOS, phone, or tablet.
Additionally, the KD-VW4x4ProK can extend IR control signals from a professional control system to the video wall control displays connected to KD-EXMLVRx units.
Features
- Video Wall Processing: Transform consumer and professional displays into a video wall with five video wall modes: 2x2, 4x1, 3x1, 2 sets of 2x1, 1x4
- Seamless Switching: Un-interrupted screen transitions during source selection
- Built-In UHDoTP Tx with PoC: 4 included KD-EXMLVRx units are powered by KD-VW4x4ProK
- Dual Video Wall / Mirrored Outputs: Simultaneously active HDMI + UHDoTP connections per output show same AV signal at same time for a total of 8 possible displays connected
- Video Resolution: Up to 3840 x 2160p 4:2:0 at 60fps supported on inputs & 3840 x 2160p 4:4:4 at 30fps supported on outputs
- Panel Flip: Enables use of consumer displays by mounting top row upside down and conjoining narrow frame sides.
- Bezel Compensation: Create a fluid screen transition by removing pixels from top, bottom, left and right border independently

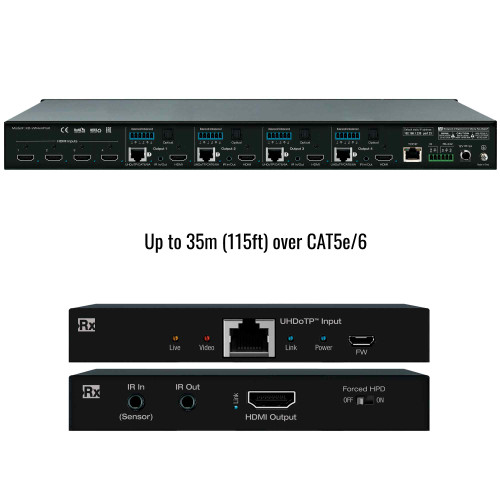

- Signal Extension over CAT: 4K/UHD Up to 35m (115ft) using CAT5e/6, up to 40m (131ft) using CAT6A STP, 1080p Up to 50m (164ft) using CAT5e/6, up to 60m (197ft) using CAT6A STP
- Text Overlay: Assigned name of each source may be displayed in each window. 16 Characters maximum with variable sizing and location settings.
- 4K Down-Convert: Integrate 4K sources with legacy 1080p & 720p displays
- Built-In Test Patterns: 9 selectable test screens help expedite installation
- IR Extension: Extend IR via Rx units to control displays or collect IR from remote to control a source at matrix
- Web UI: Control AV routing and other basic functions from any web browser
- Audio De-Embed: 6 pin balanced / un-balanced and digital optical outputs
- Dolby Digital & DTS Audio: Supports 2-channel and multi-channel surround formats up to 5.1 Dolby / DTS
- Control: Front panel buttons, IR, RS-232, TCP-IP and Web Control
- Key Digital App Ready: Can be controlled over TCP/IP via Key Digital App
- Control System Support: Key Digital app ready. Key Digital Management Software Pro (KDMS Pro) ready, Compass Control Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
Additional Features
-
HDCP 2.2 Licensing: Fully licensed and compatible with HDCP 2.2 -Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID handshake to source
-
EDID Management: Internal library with 8 EDID AV handshakes per input, in addition to ability to copy from any connected display / output
-
TMDS Re-clocking: Supports long HDMI connectivity using Key Digital HDMI cables
-
Deep Color Support: Up to 8 bits/color
