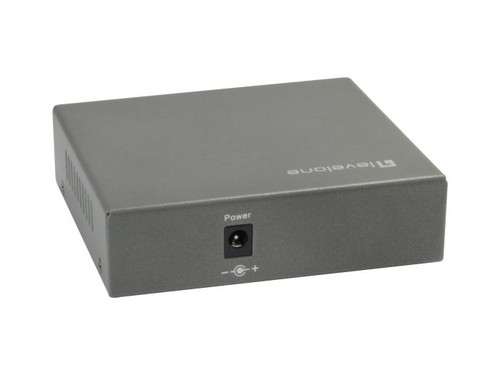

    • LevelOne GEP-0523, 5-Port Gigabit PoE Switch, 802.3at/af PoE, 4 PoE Outputs, 60W -57081803

    LevelOne

    Request A Quote

    Write a Review
    SKU:
    HS-LEV-57081803
    Condition:
    New
    Availability:
    Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
    Manufacturer Part Number:
    57081803
    Data rate:
    Gigabit Ethernet
    Dimensions (W x D x H):
    96 x 30 x 111 mm
    PoE Power Budget:
    Total 60.00
    Fanless:
    Yes
    Manageable:
    No
    Operating humidity:
    5% RH ~ 90% RH
    Operating temperature:
    -10°C ~ 50°C
    Storage humidity:
    5% RH ~ 90% RH
    Storage temperature:
    -20°C ~ 75°C
    Package Contents:
    GEP-0523 Quick Installation Guide Power adapter with power cord
    Power supply included:
    Yes
    Power consumption:
    < 60W
    Power input:
    52VDC @ 1.25A 65W
    Power supply:
    < 5W
    Flash memory size:
    1024
    Indicators:
    Power, Active, 10/100/1000M, PoE
    Switching capacity:
    10Gbps
    Concurrent ports:
    Total 5.00
    Color:
    Black
    Model Number:
    GEP-0523
    Note:
    Images may not be exact, please check specifications.
    Required A Volume Purchase:
    Contact us for a volume pricing | volumeorders@hssl.us

    Product Description

    LevelOne GEP-0523, 5-Port Gigabit PoE Switch, 802.3at/af PoE, 4 PoE Outputs, 60W -57081803

    The LevelOne GEP-0523 is a Gigabit Ethernet PoE switch with a total of 5 ports, one of which is available as uplink port and 4 ports for Power over Ethernet. Per PoE port a power supply of up to 30W is possible. The total PoE power budget is 60W. It is an ideal solution when office and home users use a combination of PoE and non-PoE devices.

    The GEP-0523's four PoE-enabled ports make it the ideal solution for office users using PoE-enabled devices in the workplace. This can include a mix of PoE IP phones, PoE Wifi APs and PoE IP cams. It is the perfect solution for offices that want to upgrade their office equipment and LAN infrastructure to PoE capability or upgrade with Gigabit performance. The switch automatically detects the connected IEEE 802.3at/af standard device and provides these devices with power and data over a single cable.

    In addition, the GEP-0523 enables users to provide a stable and reliable high-speed LAN environment with store-and-forward switching architecture, packet error filtering and blockage-free packet forwarding. The 802.3x flow control mechanisms operate in both full and half duplex modes. This device supports the N-Way Auto Negotiation protocol, which automatically detects network speed and duplex mode.

    For instant fault detection, the GEP-0523 is equipped with a full range of LEDs to help monitor and troubleshoot the network.

    • IEEE 802.3af/at PoE compliant to simplify deployment and installation
    • 10/100/1000Mbps wire speed transmission and reception
    • Auto-detection and protection of non-standard PoE devices
    • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
    • Total PoE power budget: 60W, up to 30W per port

    DATA SHEET

    Other Details

    (Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.

    Product Videos

    Custom Field

    Manufacturer Part Number 57081803
    Data rate Gigabit Ethernet
    Dimensions (W x D x H) 96 x 30 x 111 mm
    PoE Power Budget Total 60.00
    Fanless Yes
    Manageable No
    Operating humidity 5% RH ~ 90% RH
    Operating temperature -10°C ~ 50°C
    Storage humidity 5% RH ~ 90% RH
    Storage temperature -20°C ~ 75°C
    Package Contents GEP-0523 Quick Installation Guide Power adapter with power cord
    Power supply included Yes
    Power consumption < 60W
    Power input 52VDC @ 1.25A 65W
    Power supply < 5W
    Flash memory size 1024
    Indicators Power, Active, 10/100/1000M, PoE
    Switching capacity 10Gbps
    Concurrent ports Total 5.00
    Color Black
    Model Number GEP-0523
    Note Images may not be exact, please check specifications.
    Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
