Product Description

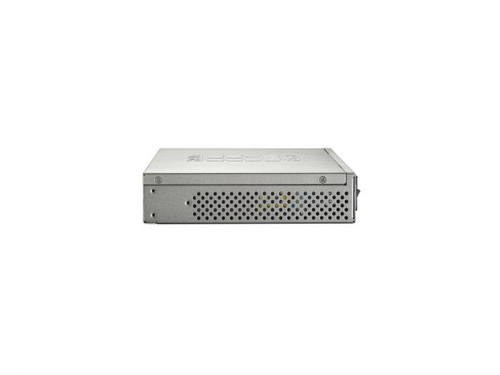

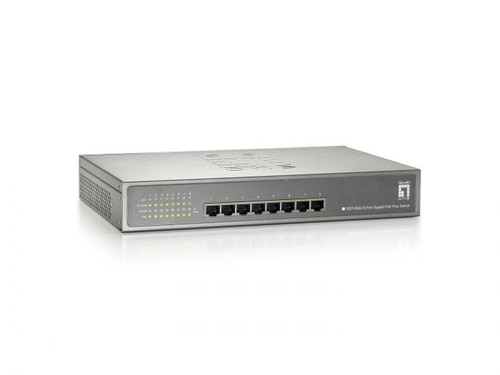

LevelOne GEP-0822 8-Port Gigabit PoE Switch, 802.3at/af PoE, 240W, 19-Inch Rackmount Kit Included -570739
The LevelOne GEP-0822 provides 8 x 10/100/1000Mbps ports with IEEE 802.3at PoE-Plus supported. This switch is IEEE 802.3af/at compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 240W, up to 30W per port. Together with Energy Efficient Ethernet (IEEE 802.3az) standard compliant, it substantially lower power consumption during periods of low-link utilization. Moreover, supports Gigabit Ethernet connectivity with 9K jumbo frames for network performing enhancement. Ideal for small businesses that prefer an inexpensive solution for PoE deploying infrastructure.
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- 10/100/1000Mbps wire speed transmission and reception
- 9K jumbo frames to increase data transfer rates
- Supports 8K MAC address auto-learning and auto-aging
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 19-inch rackmount kit included
- Total PoE power budget: 240W, up to 30W per port
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
Manufacturer Part Number 570739
Data rate Gigabit Ethernet
Dimensions (W x D x H) 280 x 185 x 44 mm
PoE Power Budget Total 240.00
Fanless No
Manageable No
Operating humidity 10% RH ~ 90% RH
Operating temperature 0°C ~ 50°C
Storage humidity 10% RH ~ 90% RH
Storage temperature -20°C ~ 70°C
Package Contents GEP-0822, Power Cord, 19" Rack Mount Kit, Rubber Feet, Quick Installation Guide
Power supply included Yes
Power consumption 250W
Power input 100-240V AC, 50-60 Hz, 5A Internal Power Supply
Power Output Per Port 56V DC, Max. 15.4 watts (IEEE
Concurrent ports Total 8.00
Product weight (kg) 2
Color Grey
Model Number GEP-0822
Note Images may not be exact, please check specifications.
Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
