Product Description
LevelOne GTL-2661 KILBY 26-Port L2 Managed Gigabit Switch, 2 x 10GbE SFP+, 24 x Gigabit RJ45 -57081403
The GTL-2661 series includes high performance Gigabit Ethernet Layer2 switches featuring 26 ports; 24 10/100/1000BASE-T ports, two 10G SFP+ ports, and one 10G expansion slot for a dual port module. The switch is ideal for high performance server aggregations, such as enterprise data centers, where it can connect high end or network attached file servers through fiber ports. It can also deployed as a backbone upgrade, or to provide Gigabit to the desktop for power users. This switch is packed with features and is a cost effective solution that brings continuous availability, enhanced security, and advanced QoS to the network edge, while maintaining simplicity of management.
- 24 Gigabit Ethernet ports and 2 10-Gigabit SFP+ slots
- IEEE 802.3ad LACP for auto port aggregation
- IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
- Provides QoS control based on IP DSCP for advanced traffic prioritization and bandwidth management
- MLD, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
- Dynamic ARP Inspection (DAI) protects switches against ARP spoofing
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
- Supports IPv4/IPv6 network operation
- Virtual stacking supports up to 36 switches in a single logical stack for unified management, monitoring and configuration
DATA SHEET
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
Manufacturer Part Number 57081403
Data rate Gigabit and 10-Gigabit Ethernet
Heat dissipation 68.242 (Btu/H)
Concurrent ports Total 26.00
Fanless Yes
Manageable Yes
Operating humidity 10% RH ~ 90% RH
Operating temperature 0°C ~ 50°C
Storage temperature -40°C ~ 70°C
Dimensions (W x D x H) 440 x 220 x 44 mm
Product weight (kg) 2,29

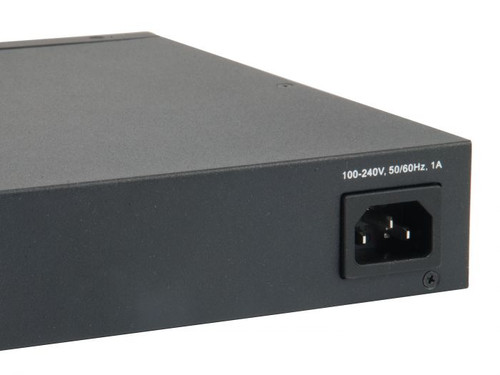

Power supply AC power
RAM size 256MB
Model Number GTL-2661
Switching capacity 88 Gbps
Color Black
Note Images may not be exact, please check specifications.
