    LevelOne OSW-1061, 10-Port L2 Managed Gigabit Ethernet PoE Switch, 8 PoE Outputs 10/100/1000Mbps +2 uplink Gigabit SFP port -52092203101

    LevelOne

    Request A Quote

    Write a Review
    SKU:
    HS-LEV-52092203101
    Condition:
    New
    Availability:
    Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
    Manufacturer Part Number:
    52092203101
    Data rate:
    Gigabit Ethernet
    Dimensions (W x D x H):
    280x200x250
    Concurrent ports:
    Total 10.00
    Fanless:
    Yes
    Manageable:
    Yes
    Operating humidity:
    0% RH ~ 90% RH
    Operating temperature:
    -20°C ~ 65°C
    Storage temperature:
    -40°C ~ 75°C
    Product weight (kg):
    8
    Power consumption:
    200 Watt
    Power supply:
    Industrial Power included
    Power input:
    VAC100-240V, 50/60Hz
    Power Output:
    PoE output max. 115W
    Color:
    White
    PoE Power Budget:
    Total 185.00
    RAM size:
    1M
    Model Number:
    OSW-1061
    Approval and Compliance:
    CE/FCC
    Note:
    Images may not be exact, please check specifications.
    Required A Volume Purchase:
    Contact us for a volume pricing | volumeorders@hssl.us

    Product Description

    LevelOne OSW-1061, 10-Port L2 Managed Gigabit Ethernet PoE Switch, 8 PoE Outputs 10/100/1000Mbps +2 uplink Gigabit SFP port -52092203101

    The OSW-1061 is  a L2 Managed PoE Industrial Switch with 8 ports of Gigaibit RJ45 PoE and 2 ports of Gigabit SFP. This switch is offering full suite of L2 management features, better PoE functionality with 185W PoE power budget and usability.

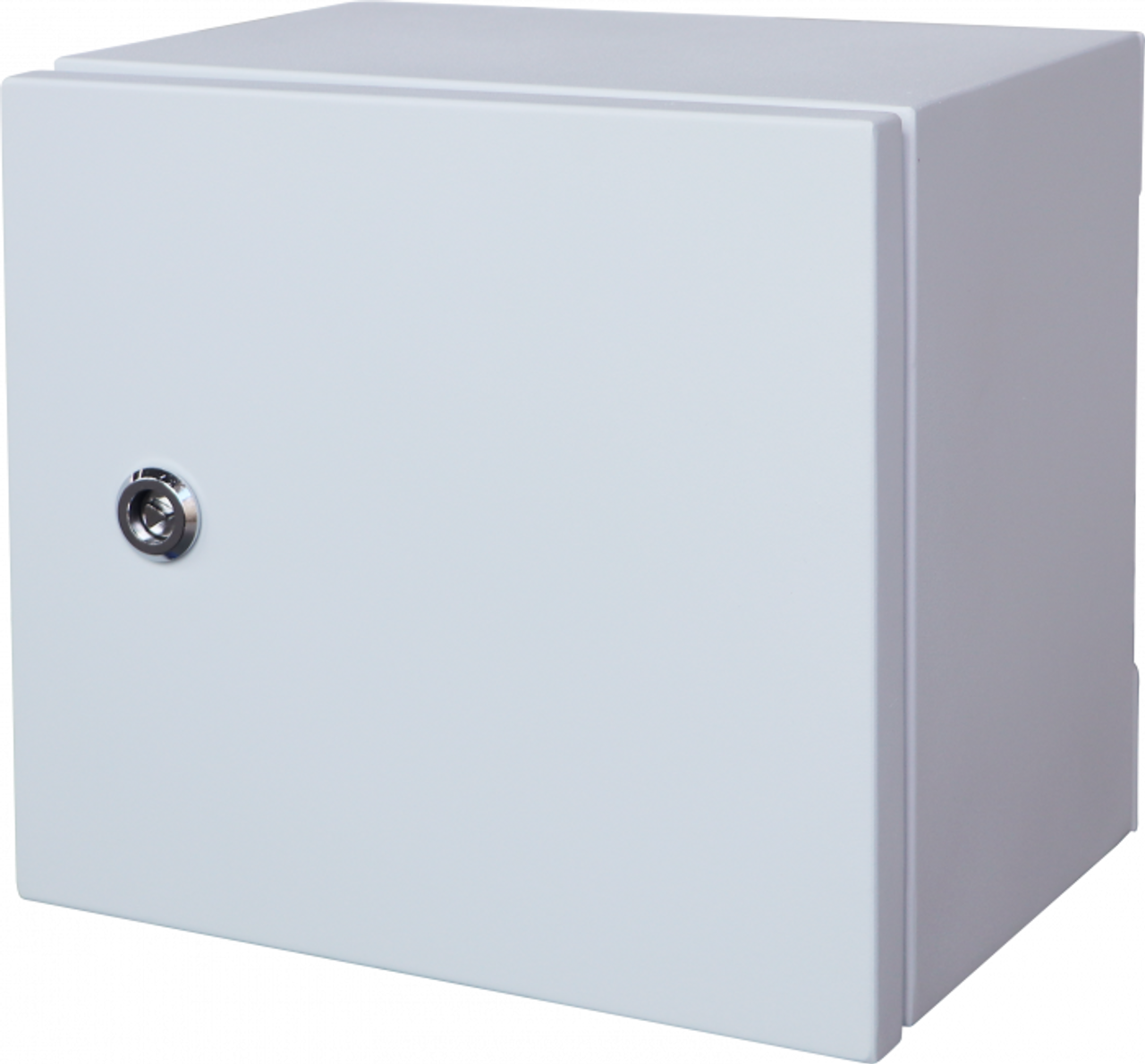

    The OSW-1061 switch is designed to withstand outdoor or harsh environments, and can be mounted on a wall, pole, or cabinet to fit your space and layout.

    • 8- Port 10/100/1000  Ethernet  PoE + Gigabit SFP+ slots x 2
    • 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
    • IEEE 802.3af/at PoE compliant to simplify deployment and installation
    • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
    • Web-based  Management
    • 6KV surge protection, 6KV contact / 8KV air ESD protection
    • Weatherproof IP55-rated Box housing
    • PoE Budget Max 185 W

    DATA SHEET

    Other Details

    (Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.

    Product Videos

    Manufacturer Part Number

    Manufacturer Part Number 52092203101
    Data rate Gigabit Ethernet
    Dimensions (W x D x H) 280x200x250
    Concurrent ports Total 10.00
    Fanless Yes
    Manageable Yes
    Operating humidity 0% RH ~ 90% RH
    Operating temperature -20°C ~ 65°C
    Storage temperature -40°C ~ 75°C
    Product weight (kg) 8
    Power consumption 200 Watt
    Power supply Industrial Power included
    Power input VAC100-240V, 50/60Hz
    Power Output PoE output max. 115W
    Color White
    PoE Power Budget Total 185.00
    RAM size 1M
    Model Number OSW-1061
    Approval and Compliance CE/FCC
    Note Images may not be exact, please check specifications.
    Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
