Product Description

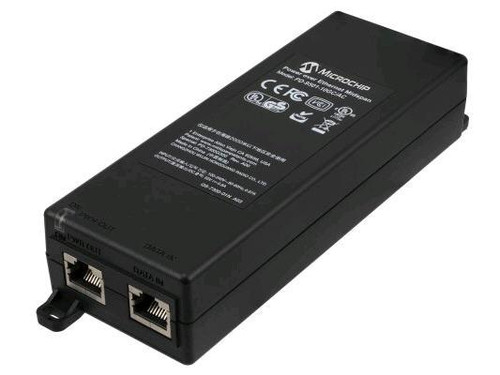

Microchip 1-Port 30W 802.3at PoE Injector - 120 V AC, 230 V AC Input - 55 V DC Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x 10/100/1000Base-T Output Port(s) - 30 W
Microsemi's PD-9001GR is a Single port, high-power solution for remote powering of current and emerging high power applications. Generating up to 30W, the PD-9001GR enables remote power for a new range of applications including 802.11ac Access Points, pan-tiltzoom (PTZ) cameras and video-phones. It complies with the IEEE 802.3at PoE+ standard and is backward compatible with IEEE802.3af. It can power both existing 10/100Base-T network devices and emerging wireless 1000Base-T devices such as wireless IEEE 802.11ac access points and IP Cameras.
Features
- Single-port Gigabit PoE Midspan, 802.3at Compliant with 2-event classification
- Backwards compatible with IEEE802.3af
- 30W output power from -20ºC to +40ºC, 25W output at +55ºC
- 1000Base-T compatible
- Safe & reliable power over existing Ethernet infrastructure, only PoE devices receive power
- Automatic detection and protection of non-standard devices
- Plug-and-play installation
- Guaranteed up-time
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
Product Type PoE Injector
Compatibility
- Access Points
- Pan-Tiltzoom (PTZ) Cameras
- Video-Phones
- Network Devices
Input Voltage 120 V AC
Input Voltage 230 V AC
Manufacturer Part Number PD-9001GR/AT/AC-US
Limited Warranty 1 Year
Weight (Approximate) 7.04 oz
Certifications & Standards
- CE
- FCC Part 15, Class B
- EN 55022 Class B (Emissions)
- EN 55024 (Immunity)
- VCCI
- UL/cUL Per IEC 60950-1
- IEEE802.3af
- IEEE802.3at
Length 5.5"
Manufacturer Microchip Technology Inc.
Product Model PD-9001GR
Product Name 1-Port 30W 802.3at PoE Injector
Brand Name Microchip
Input Ports 1 x 10/100/1000Base-T
Output Ports 1 x 10/100/1000Base-T
Country of Origin China
Height 1.3"
Width 2.2"
Environmentally Friendly Yes
Environmental Certification RoHS
Environmental Certification WEEE
Environmental Certification GS
Maximum Input Current 800 mA
Maximum Output Power 30 W
Maximum Output Voltage 55 V DC
Note Images may not be exact, please check specifications.
