Product Description

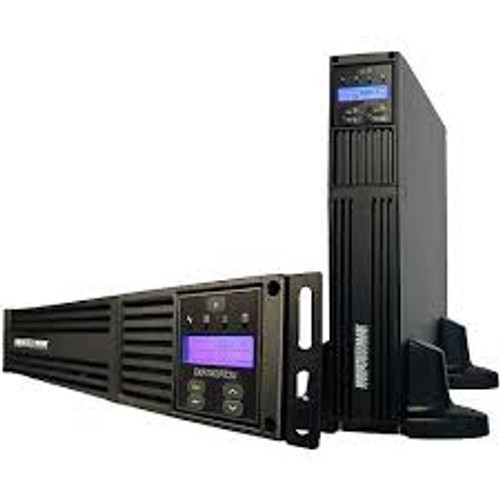

Minuteman EXR 3000VA Tower/Rack/Wall Mountable UPS - 2U Tower/Rack/Wall Mountable - 8 Hour Recharge - 2.50 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Sine Wave - Serial Port - USB - LCD Display - 1 x NEMA L5-30R, 6 x NEMA 5-20R
Features
- Works adequately in situations where the supply is prone to sags and surges
- Keep your sensitive devices powered with a backup of up to 2.50 minute at full load
- 8 Hour typical battery recharge time for better convenience and prolonged, productive usage
- Lead Acid battery chemistry to better suit your requirements with maximum productivity
- NEMA L5-30P plug/connector type for a secure, feasible operation
- NEMA L5-30R receptacle type offers ease of operation with maximum efficiency
- Single Phase phase for better usability and increased efficiency
- Line-interactive UPS with network device application/usage to ensure maximum productivity with added feasibility
- 120 V AC input voltage for maximum feasibility and added productivity
- 120 V AC output voltage for optimal performance with maximum feasibility
- Experience higher efficiency with lower energy cost
- Up to 2.50 minute runtime on full load to preserve critical data from power shortage interruptions
- 8 Hour typical battery recharge time to allow optimal performance for longer hours with added efficiency
- Lead Acid battery chemistry delivers energy to the network device through an easily controlled reaction
- NEMA L5-30P plug/connector type for convenient usage with added dependability
- NEMA L5-30R receptacle type offers maximum safety, convenience, and increased usability
- 120 V AC input voltage for optimal performance with maximum usability
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
Additional Warranty Information
Limited warranty - electrical components and functions - 3 years ¦ Limited warranty - batteries - 3 years
Application/Usage Network Device
Application/Usage Electronic Equipment
Battery Chemistry Lead Acid
Software Included Minuteman SentryHD
Product Type Line-interactive UPS
Display LCD"
Hot Swappable Yes
Input Voltage 120 V AC
Manufacturer Part Number EXR3000RT2UNC
Limited Warranty 3 Year
Output Voltage 120 V AC
Weight (Approximate) 77.60 lb
Dataline Protection RJ-45
Form Factor Tower/Rack/Wall Mountable
Load Capacity 3000 VA/2700 W
Manufacturer Para Systems, Inc
Product Name EXR 3000VA Tower/Rack/Wall Mountable UPS
Network Management SNMP
Surge Energy Rating 1000 J
Waveform Type Sine Wave
Product Series EXR
Rack Height 2U
Brand Name Minuteman
Plug/Connector Type NEMA L5-30P
Input Voltage Range 80 V AC - 164 V AC
Height 3.5"
Width 19"
Depth 23.6"
Input Frequency 60 Hz
Phase Single Phase
Receptacle Type NEMA L5-30R
Receptacle Type NEMA 5-20R
Environmentally Friendly Yes
Environmental Certification RoHS 2
USB Yes"
Maximum Operating Temperature 104°F (40°C)
Network (RJ-45) Yes
Serial Port Yes
Backup/Run Time (Half Load) 10 Minute
Backup/Run Time (Full Load) 2.50 Minute
Battery Characteristics Sealed, Non-spillable, Maintenance-free, Valve-regulated
Energy Star Yes
EPO Port Yes
Operating Humidity 0% - 95%
Typical Battery Recharge Time 8 Hour
Receptacle Detail 1 x NEMA L5-30R
Receptacle Detail 6 x NEMA 5-20R
Note Images may not be exact, please check specifications.
